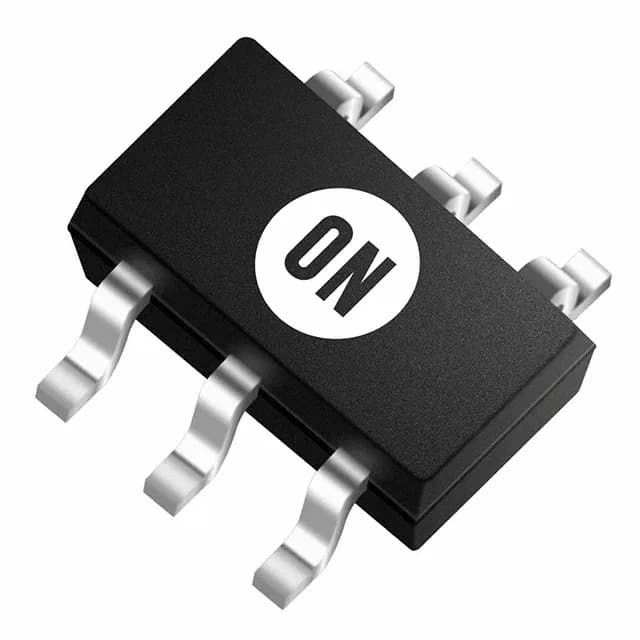

MUN5112DW1T1G
onsemi
Tape & Reel (TR) Cut Tape (CT)250mWSurface Mount
Ref. price$0.3500
Lead time on requestGet quote ›
onsemi MUN5 Series
24 variants · onsemi
About the onsemi onsemi MUN5 Series series
The onsemi onsemi MUN5 Series series groups 24 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - collector cutoff of 500nA and mounting type of Surface Mount. Variants differ by case, current - collector (Ic) and DC current gain (hFE) (Min) @ ic, vce, so you can match the exact case your application requires using the selection guide below. All listed onsemi MUN5 Series part numbers are active and orderable.
Select a variant by
- Case
- 6-TSSOP, SC-88, SOT-363 · SC-70, SOT-323
- Current - collector (Ic)
- 100 mA · 100mA
- DC current gain (hFE) (Min) @ ic, vce
- 3 @ 5mA, 10V · 15 @ 5mA, 10V · 35 @ 5mA, 10V · 60 @ 5mA, 10V · 80 @ 5mA, 10V · 160 @ 5mA, 10V
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Power - max
- 202 mW · 250mW
- Resistor - base (R1)
- 1kOhms · 2.2 kOhms · 2.2kOhms · 4.7 kOhms · 10 kOhms · 10kOhms · 22 kOhms · 22kOhms · 47kOhms
- Transistor type
- 2 NPN - Pre-Biased (Dual) · 2 PNP - Pre-Biased (Dual) · NPN - Pre-Biased · PNP - Pre-Biased
- Vce saturation (Max) @ ib, ic
- 250mV @ 1mA, 10mA · 250mV @ 5mA, 10mA · 250mV @ 300µA, 10mA
Variant comparison
| Parameter | MUN5112DW1T1G | MUN5130DW1T1G | MUN5132T1G | MUN5135DW1T1G | MUN5135T1G | MUN5211T1G |
|---|---|---|---|---|---|---|
| Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | SC-70, SOT-323 | 6-TSSOP, SC-88, SOT-363 | SC-70, SOT-323 | SC-70, SOT-323 |
| Current - collector (Ic) | 100mA | 100mA | 100 mA | 100mA | 100 mA | 100 mA |
| DC current gain (hFE) (Min) @ ic, vce | 60 @ 5mA, 10V | 3 @ 5mA, 10V | 15 @ 5mA, 10V | 80 @ 5mA, 10V | 80 @ 5mA, 10V | 35 @ 5mA, 10V |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
| Power - max | 250mW | 250mW | 202 mW | 250mW | 202 mW | 202 mW |
| Resistor - base (R1) | 22kOhms | 1kOhms | 4.7 kOhms | 2.2kOhms | 2.2 kOhms | 10 kOhms |
| Transistor type | 2 PNP - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | PNP - Pre-Biased | 2 PNP - Pre-Biased (Dual) | PNP - Pre-Biased | NPN - Pre-Biased |
| Vce saturation (Max) @ ib, ic | 250mV @ 300µA, 10mA | 250mV @ 5mA, 10mA | 250mV @ 1mA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA |
Shared specifications
- Current - collector cutoff
- 500nA
- Mounting type
- Surface Mount
Request a quote on any onsemi MUN5 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the onsemi onsemi MUN5 Series variants differ?
- onsemi MUN5 Series part numbers differ by case, current - collector (Ic), DC current gain (hFE) (Min) @ ic, vce and package. Use the selection guide above to pick by case.
- How many onsemi onsemi MUN5 Series part numbers are listed?
- 24 onsemi onsemi MUN5 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for onsemi onsemi MUN5 Series?
- Request a quote (RFQ) for any onsemi MUN5 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
