How do the onsemi onsemi MUN2 Series variants differ?

onsemi MUN2 Series part numbers differ by DC current gain (hFE) (Min) @ ic, vce, package, power - max and resistor - base (R1). Use the selection guide above to pick by DC current gain (hFE) (Min) @ ic, vce.

How many onsemi onsemi MUN2 Series part numbers are listed?

4 onsemi onsemi MUN2 Series part numbers are listed, each with specifications and a datasheet where available.

onsemi MUN2 Series

4 variants · onsemi

About the onsemi onsemi MUN2 Series series

The onsemi onsemi MUN2 Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common case of TO-236-3, SC-59, SOT-23-3, current - collector (Ic) of 100 mA and current - collector cutoff of 500nA. Variants differ by DC current gain (hFE) (Min) @ ic, vce, package and power - max, so you can match the exact DC current gain (hFE) (Min) @ ic, vce your application requires using the selection guide below. All listed onsemi MUN2 Series part numbers are active and orderable.

Select a variant by

DC current gain (hFE) (Min) @ ic, vce: 35 @ 5mA, 10V · 80 @ 5mA, 10V
Package: Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Power - max: 230 mW · 338 mW
Resistor - base (R1): 10 kOhms · 47 kOhms
Resistor - emitter base (R2): 10 kOhms · 47 kOhms
Transistor type: NPN - Pre-Biased · PNP - Pre-Biased

Variant comparison

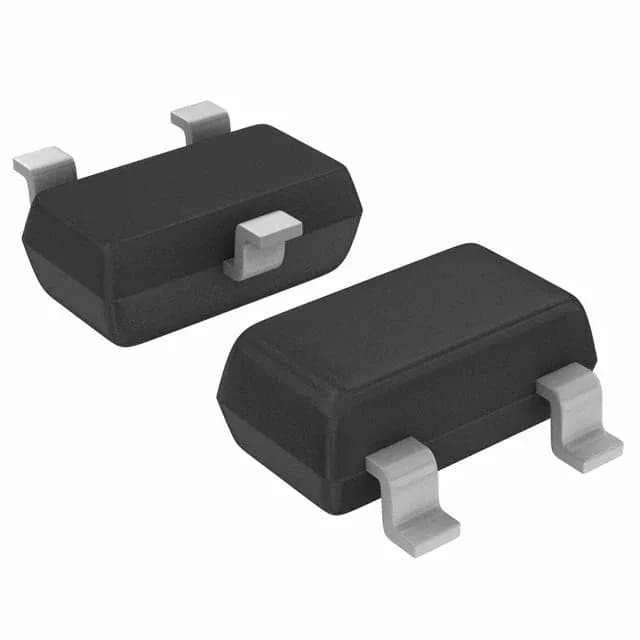

Parameter	MUN2111T1G	MUN2211T1G	MUN2213T1G	MUN2214T1G
DC current gain (hFE) (Min) @ ic, vce	35 @ 5mA, 10V	35 @ 5mA, 10V	80 @ 5mA, 10V	80 @ 5mA, 10V
Package	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)
Power - max	230 mW	230 mW	338 mW	230 mW
Resistor - base (R1)	10 kOhms	10 kOhms	47 kOhms	10 kOhms
Resistor - emitter base (R2)	10 kOhms	10 kOhms	47 kOhms	47 kOhms
Transistor type	PNP - Pre-Biased	NPN - Pre-Biased	NPN - Pre-Biased	NPN - Pre-Biased

Shared specifications

Case: TO-236-3, SC-59, SOT-23-3
Current - collector (Ic): 100 mA
Current - collector cutoff: 500nA
Mounting type: Surface Mount
Vce saturation (Max) @ ib, ic: 250mV @ 300µA, 10mA
Voltage - collector emitter breakdown: 50 V

Request a quote on any onsemi MUN2 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the onsemi onsemi MUN2 Series variants differ?: onsemi MUN2 Series part numbers differ by DC current gain (hFE) (Min) @ ic, vce, package, power - max and resistor - base (R1). Use the selection guide above to pick by DC current gain (hFE) (Min) @ ic, vce.
How many onsemi onsemi MUN2 Series part numbers are listed?: 4 onsemi onsemi MUN2 Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for onsemi onsemi MUN2 Series?: Request a quote (RFQ) for any onsemi MUN2 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
