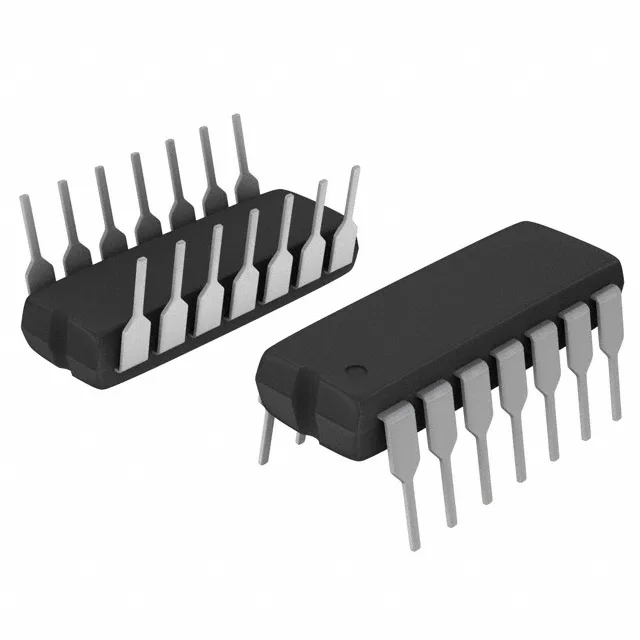

LM324AN
onsemi
Through HoleTube0°C ~ 70°C
Ref. price$0.4900
Lead time on requestGet quote
onsemi LM324 Series
23 variants · onsemi
About the onsemi LM324 Series
The onsemi LM324 Series series groups 23 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common amplifier type of General Purpose, current - output (Channel) of 40 mA and number of circuits of 4. Variants differ by case, current - input bias and current - supply, so you can match the exact case your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current onsemi LM324 Series variants and discontinued ones from a single page.
Select a variant by
- Case
- 14-DIP (0.300\", 7.62mm) · 14-SOIC (0.154\", 3.90mm Width) · 14-TSSOP (0.173\", 4.40mm Width)
- Current - input bias
- 40 nA · 45 nA · 90 nA
- Current - supply
- - · 1mA · 1.5mA · 1.5mA (x4 Channels)
- Mounting
- Surface Mount · Through Hole
- Operating temperature
- 0°C ~ 70°C · 0°C~70°C · 0°C~70°C(TJ)
- Package
- Bulk · Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT) · Tube
- Voltage - input offset
- 1.5 mV · 2 mV
Shared specifications
- Amplifier type
- General Purpose
- Current - output (Channel)
- 40 mA
- Number of circuits
- 4
- Output type
- -
- Slew rate
- -
- Voltage - supply span
- 32 V
Variant comparison
| Parameter | LM324N | LM324AN | LM324ADG | LM324ADR2G | LM324ADTBG | LM324ADTBR2 |
|---|---|---|---|---|---|---|
| Case | 14-DIP (0.300\", 7.62mm) | 14-DIP (0.300\", 7.62mm) | 14-SOIC (0.154\", 3.90mm Width) | 14-SOIC (0.154\", 3.90mm Width) | 14-TSSOP (0.173\", 4.40mm Width) | 14-TSSOP (0.173\", 4.40mm Width) |
| Current - input bias | 40 nA | 40 nA | 40 nA | 40 nA | 40 nA | 40 nA |
| Current - supply | 1mA | 1.5mA | 1.5mA (x4 Channels) | 1.5mA (x4 Channels) | 1.5mA (x4 Channels) | 1.5mA (x4 Channels) |
| Mounting | Through Hole | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C~70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package | Tube | Tube | Tube | Tape & Reel (TR) Cut Tape (CT) | Tube | Tape & Reel (TR) |
| Voltage - input offset | 1.5 mV | 1.5 mV | 2 mV | 2 mV | 2 mV | 2 mV |
Request a quote on any onsemi LM324 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
