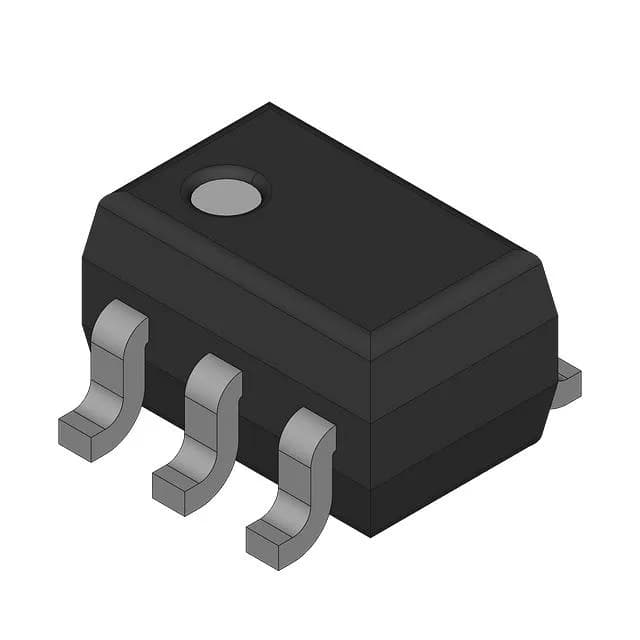

FPF2001
onsemi
Tape & Reel (TR) Cut Tape (CT)-40°C ~ 85°C (TA)On/Off
Ref. price$1.4700
Lead time on requestGet quote ›
onsemi FPF2 Series
34 variants · onsemi
About the onsemi onsemi FPF2 Series series
The onsemi onsemi FPF2 Series series groups 34 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common input type of Non-Inverting, interface of On/Off and mounting type of Surface Mount. Variants differ by case, current - output and fault protection, so you can match the exact case your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current onsemi FPF2 Series variants and discontinued ones from a single page.
Select a variant by
- Case
- 5-TSSOP, SC-70-5, SOT-353 · 6-UFBGA, WLCSP · 6-WDFN Exposed Pad
- Current - output
- 1.5A · 50mA · 100mA · 200mA · 400mA · 500mA · 625mA
- Fault protection
- Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO · Current Limiting (Adjustable), Over Temperature, UVLO · Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO · Current Limiting (Fixed), Over Temperature, UVLO
- Features
- Auto Restart, Load Discharge, Status Flag · Auto Restart, Status Flag · Power Good, Status Flag · Status Flag
- Operating temperature
- -40°C ~ 85°C (TA) · -40°C~85°C(TA)
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Rds on
- 55mOhm · 120mOhm · 125mOhm · 140mOhm · 215mOhm · 700mOhm
Variant comparison
| Parameter | FPF2001 | FPF2004 | FPF2006 | FPF2007 | FPF2027 | FPF2147 |
|---|---|---|---|---|---|---|
| Case | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 6-UFBGA, WLCSP | 6-WDFN Exposed Pad |
| Current - output | 50mA | 100mA | 100mA | 100mA | 100mA | 400mA |
| Fault protection | Current Limiting (Fixed), Over Temperature, UVLO | Current Limiting (Fixed), Over Temperature, UVLO | Current Limiting (Fixed), Over Temperature, UVLO | Current Limiting (Fixed), Over Temperature, UVLO | Current Limiting (Fixed), Over Temperature, UVLO | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Features | Auto Restart, Status Flag | Auto Restart, Status Flag | Status Flag | Status Flag | Status Flag | Power Good, Status Flag |
| Operating temperature | -40°C ~ 85°C (TA) | -40°C~85°C(TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C~85°C(TA) | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) |
| Rds on | 700mOhm | 700mOhm | 700mOhm | 700mOhm | 215mOhm | 120mOhm |
Shared specifications
- Input type
- Non-Inverting
- Interface
- On/Off
- Mounting type
- Surface Mount
- Number of outputs
- 1
- Output configuration
- High Side
- Output type
- P-Channel
- Ratio - Input:Output
- 1:1
- Switch type
- General Purpose
- Voltage - supply (Vcc (Vdd))
- Not Required
Request a quote on any onsemi FPF2 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the onsemi onsemi FPF2 Series variants differ?
- onsemi FPF2 Series part numbers differ by case, current - output, fault protection and features. Use the selection guide above to pick by case.
- How many onsemi onsemi FPF2 Series part numbers are listed?
- 34 onsemi onsemi FPF2 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for onsemi onsemi FPF2 Series?
- Request a quote (RFQ) for any onsemi FPF2 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
