FM24C05ULVMT8
Fairchild Semiconductor
2.7V ~ 5.5V-40°C ~ 125°C (TA)Bulk
Ref. price$0.4100
Lead time on requestGet quote ›
onsemi FM24 Series
4 variants · onsemi
About the onsemi onsemi FM24 Series series
The onsemi onsemi FM24 Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common access time of 3.5 µs, frequency of 100 kHz and memory format of EEPROM. Variants differ by case, memory organization and memory size, so you can match the exact case your application requires using the selection guide below. All listed onsemi FM24 Series part numbers are active and orderable.
Select a variant by
- Case
- 8-DIP (0.300\", 7.62mm) · 8-SOIC (0.154\", 3.90mm Width) · 8-TSSOP (0.173\", 4.40mm Width)
- Memory organization
- 1K x 8 · 2K x 8 · 512 x 8
- Memory size
- 4Kbit · 8Kbit · 16Kbit
- Mounting type
- Surface Mount · Through Hole
- Operating temperature
- -40°C ~ 125°C (TA) · 0°C ~ 70°C (TA)
- Voltage
- 2.7V ~ 5.5V · 4.5V ~ 5.5V
- Write cycle time - word, page
- 10ms · 15ms
Variant comparison
| Parameter | FM24C05ULVMT8 | FM24C05UN | FM24C08UM8 | FM24C17ULM8X |
|---|---|---|---|---|

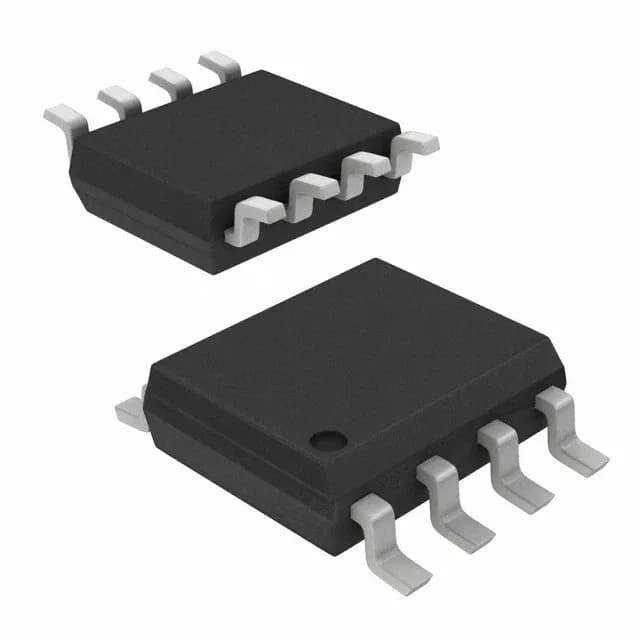

| Case | 8-TSSOP (0.173\", 4.40mm Width) | 8-DIP (0.300\", 7.62mm) | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) |
| Memory organization | 512 x 8 | 512 x 8 | 1K x 8 | 2K x 8 |
| Memory size | 4Kbit | 4Kbit | 8Kbit | 16Kbit |
| Mounting type | Surface Mount | Through Hole | Surface Mount | Surface Mount |
| Operating temperature | -40°C ~ 125°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Voltage | 2.7V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 2.7V ~ 5.5V |
| Write cycle time - word, page | 15ms | 10ms | 10ms | 15ms |
Shared specifications
- Access time
- 3.5 µs
- Frequency
- 100 kHz
- Memory format
- EEPROM
- Memory interface
- I²C
- Memory type
- Non-Volatile
- Package
- Bulk
- Technology
- EEPROM
Request a quote on any onsemi FM24 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the onsemi onsemi FM24 Series variants differ?
- onsemi FM24 Series part numbers differ by case, memory organization, memory size and mounting type. Use the selection guide above to pick by case.
- How many onsemi onsemi FM24 Series part numbers are listed?
- 4 onsemi onsemi FM24 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for onsemi onsemi FM24 Series?
- Request a quote (RFQ) for any onsemi FM24 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
