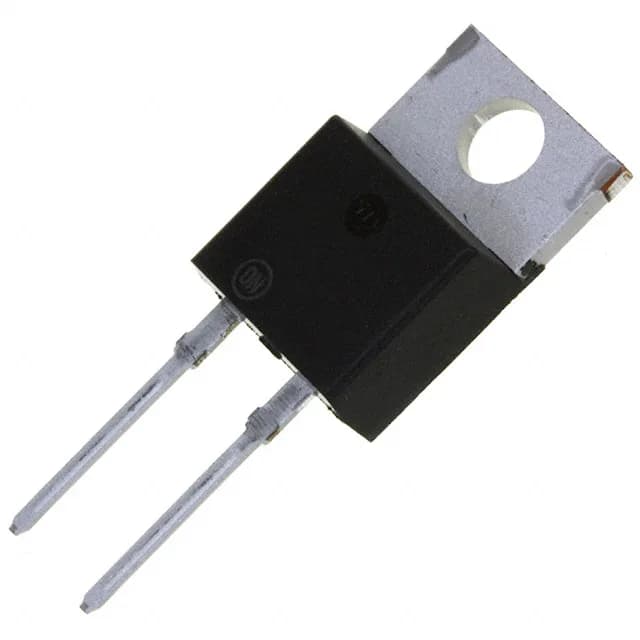

onsemi MUR1560G
MPNMUR1560G
Active
DIODE GEN PURP 600V 15A TO220-2
$1.5600Ref. price · indicative, final on quote
PackagingTO-220-2
RoHSROHS3 Compliant
SeriesSWITCHMODE™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SWITCHMODE™ |
| Diode type | Standard |
| Mounting | Through Hole |
| Voltage - DC reverse (Vr) | 600 V |
| Voltage - forward (Vf) (Max) @ if | 1.5 V @ 15 A |
| Current - reverse leakage @ vr | 10 µA @ 600 V |
| Current - average rectified | 15A |
| Operating temperature - junction | -65°C~175°C |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Package | Tube |
| Case | TO-220-2 |
| Reverse recovery time | 60 ns |
