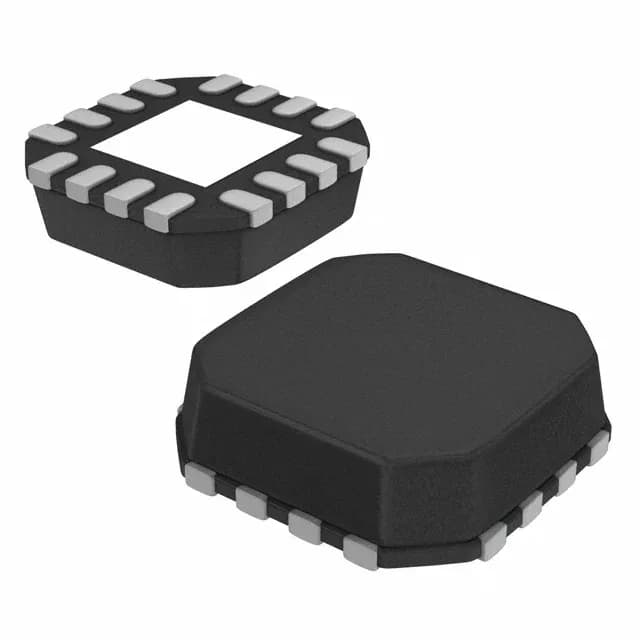

PCAL6408ABSHP
NXP Semiconductors
400 kHzI²CTape & Reel (TR); Cut Tape (CT)
Ref. price$1.51
Lead time on requestGet quote ›
NXP Semiconductors PCAL Series
13 variants · NXP Semiconductors
About the NXP Semiconductors NXP Semiconductors PCAL Series series
The NXP Semiconductors NXP Semiconductors PCAL Series series groups 13 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common features of POR, interrupt output of Yes and mounting type of Surface Mount. Variants differ by case, frequency and interface, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 16-TSSOP (0.173\", 4.40mm Width) · 16-VFQFN Exposed Pad · 24-WFQFN Exposed Pad · 32-UFQFN Exposed Pad
- Frequency
- 1 MHz · 400 kHz
- Interface
- I²C · I²C, SMBus
- Number of i (O)
- 8 · 16 · 24
Variant comparison
| Parameter | PCAL6408ABSHP | PCAL6408APWJ | PCAL6416AHF,128 | PCAL6524HEHP |
|---|---|---|---|---|
| Case | 16-VFQFN Exposed Pad | 16-TSSOP (0.173\", 4.40mm Width) | 24-WFQFN Exposed Pad | 32-UFQFN Exposed Pad |
| Frequency | 400 kHz | 400 kHz | 400 kHz | 1 MHz |
| Interface | I²C, SMBus | I²C, SMBus | I²C, SMBus | I²C |
| Number of i (O) | 8 | 8 | 16 | 24 |
Shared specifications
- Features
- POR
- Interrupt output
- Yes
- Mounting type
- Surface Mount
- Operating temperature
- -40°C ~ 85°C
- Output type
- Open Drain, Push-Pull
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Voltage
- 1.65V ~ 5.5V
Request a quote on any NXP Semiconductors PCAL Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the NXP Semiconductors NXP Semiconductors PCAL Series variants differ?
- NXP Semiconductors PCAL Series part numbers differ by case, frequency, interface and number of i (O). Use the selection guide above to pick by case.
- How many NXP Semiconductors NXP Semiconductors PCAL Series part numbers are listed?
- 13 NXP Semiconductors NXP Semiconductors PCAL Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for NXP Semiconductors NXP Semiconductors PCAL Series?
- Request a quote (RFQ) for any NXP Semiconductors PCAL Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
