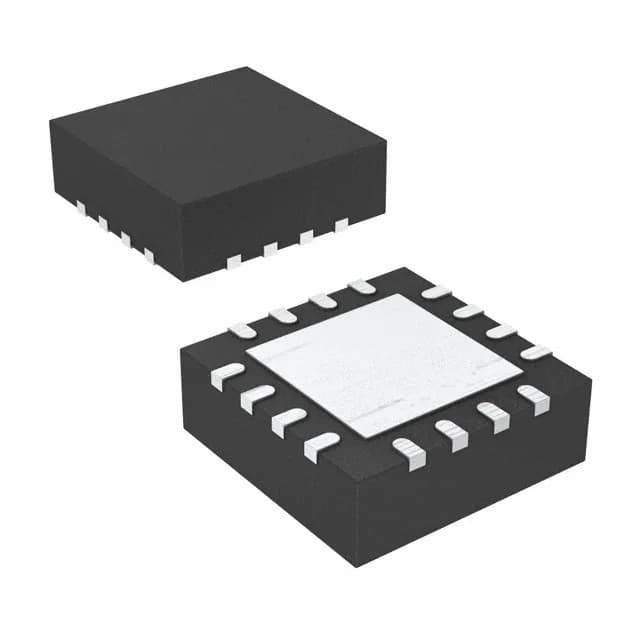

PCA9554ABS,118
NXP USA Inc.
2.3V ~ 5.5VTape & Reel (TR); Cut Tape (CT)-40°C~85°C
Ref. price$2.0100
Lead time on requestGet quote ›
NXP Semiconductors PCA95 Series
30 variants · NXP Semiconductors
About the NXP Semiconductors NXP Semiconductors PCA95 Series series
The NXP Semiconductors NXP Semiconductors PCA95 Series series groups 30 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common frequency of 400 kHz, mounting type of Surface Mount and output type of Push-Pull. Variants differ by case, current - output source (Sink) and features, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) · 16-SOIC (0.295\", 7.50mm Width) · 16-SSOP (0.209\", 5.30mm Width) · 16-TSSOP (0.173\", 4.40mm Width) · 16-VQFN Exposed Pad · 24-TSSOP (0.173\", 4.40mm Width) · 24-WFQFN Exposed Pad
- Current - output source (Sink)
- 10mA, 25mA · 100µA, 25mA
- Features
- EEPROM, POR · POR
- Interface
- I2C, SMBus · I²C, SMBus
- Interrupt output
- No · Yes
- Number of i (O)
- 4 · 8 · 16
- Operating temperature
- -40°C ~ 85°C · -40°C~85°C
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT) · Tube
Variant comparison

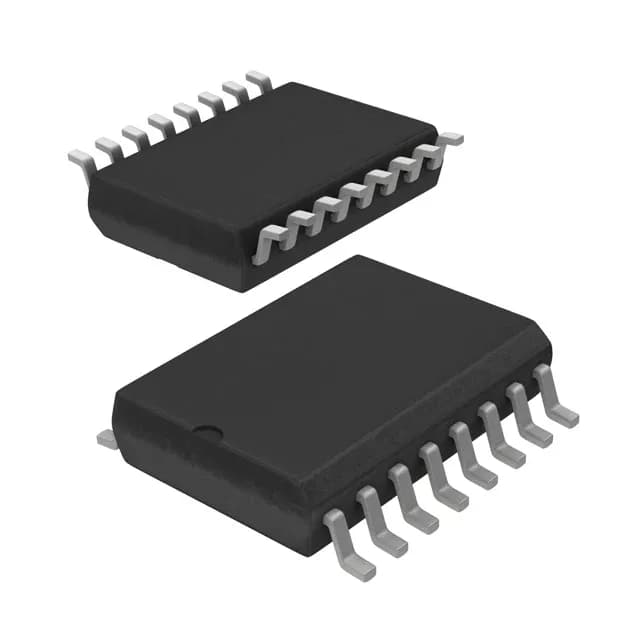

| Parameter | PCA9554ABS,118 | PCA9554AD,118 | PCA9554ADB,118 | PCA9554BPWJ | PCA9554CPWJ | PCA9554PW,112 |
|---|---|---|---|---|---|---|
| Case | 16-VQFN Exposed Pad | 16-SOIC (0.295\", 7.50mm Width) | 16-SSOP (0.209\", 5.30mm Width) | 16-TSSOP (0.173\", 4.40mm Width) | 16-TSSOP (0.173\", 4.40mm Width) | 16-TSSOP (0.173\", 4.40mm Width) |
| Current - output source (Sink) | 10mA, 25mA | 10mA, 25mA | 10mA, 25mA | 10mA, 25mA | 10mA, 25mA | 10mA, 25mA |
| Features | POR | POR | POR | POR | POR | POR |
| Interface | I²C, SMBus | I²C, SMBus | I²C, SMBus | I2C, SMBus | I²C, SMBus | I²C, SMBus |
| Interrupt output | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of i (O) | 8 | 8 | 8 | 8 | 8 | 8 |
| Operating temperature | -40°C~85°C | -40°C ~ 85°C | -40°C~85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tube |
Shared specifications
- Frequency
- 400 kHz
- Mounting type
- Surface Mount
- Output type
- Push-Pull
Request a quote on any NXP Semiconductors PCA95 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the NXP Semiconductors NXP Semiconductors PCA95 Series variants differ?
- NXP Semiconductors PCA95 Series part numbers differ by case, current - output source (Sink), features and interface. Use the selection guide above to pick by case.
- How many NXP Semiconductors NXP Semiconductors PCA95 Series part numbers are listed?
- 30 NXP Semiconductors NXP Semiconductors PCA95 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for NXP Semiconductors NXP Semiconductors PCA95 Series?
- Request a quote (RFQ) for any NXP Semiconductors PCA95 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
