NXP Semiconductors MPXV Series

13 variants · NXP Semiconductors

About the NXP Semiconductors NXP Semiconductors MPXV Series series

The NXP Semiconductors NXP Semiconductors MPXV Series series groups 13 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of Board Mount and features of Temperature Compensated. Variants differ by accuracy, case and maximum pressure, so you can match the exact accuracy your application requires using the selection guide below. All listed NXP Semiconductors MPXV Series part numbers are active and orderable.

Select a variant by

Accuracy: - · ±1% · ±2.5% · ±5%
Case: 8-BSOP (0.475\", 12.06mm Width) Dual Ports, Same Side · 8-DIP (0.550\", 13.97mm), Top Port · 8-SMD, Gull Wing, Side Port · 8-SMD, Gull Wing, Top Port
Maximum pressure: -29.01PSI (-200kPa) · ±10.88PSI (±75kPa) · ±29.01PSI (±200kPa) · 2.32PSI (16kPa) · 3.48PSI (24kPa) · 10.88PSI (75kPa) · 58.02PSI (400kPa)
Mounting type: Surface Mount · Through Hole
Operating pressure: -7.25PSI (-50kPa) · ±0.29PSI (±2kPa) · ±1.02PSI (±7kPa) · ±3.63PSI (±25kPa) · 0.57PSI (3.92kPa) · 0.87PSI (6kPa) · 1.45PSI (10kPa) · 14.5PSI (100kPa)
Operating temperature: -40°C ~ 125°C · -40°C~125°C · -10°C ~ 60°C · 0°C ~ 85°C · 10°C ~ 60°C · 10°C~60°C
Output: 0 mV ~ 25 mV (10V) · 0.1 V ~ 4.6 V · 0.2 V ~ 4.7 V · 0.5 V ~ 4.5 V · 1 V ~ 4.9 V
Output type: Analog Voltage · Wheatstone Bridge

Variant comparison

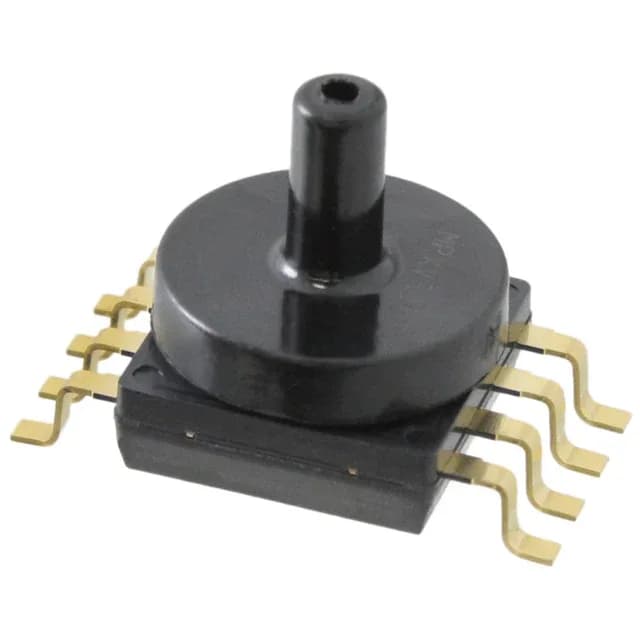

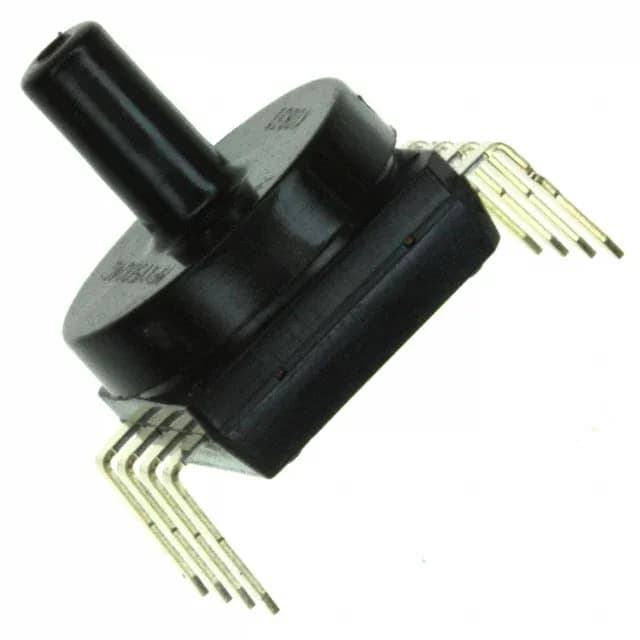

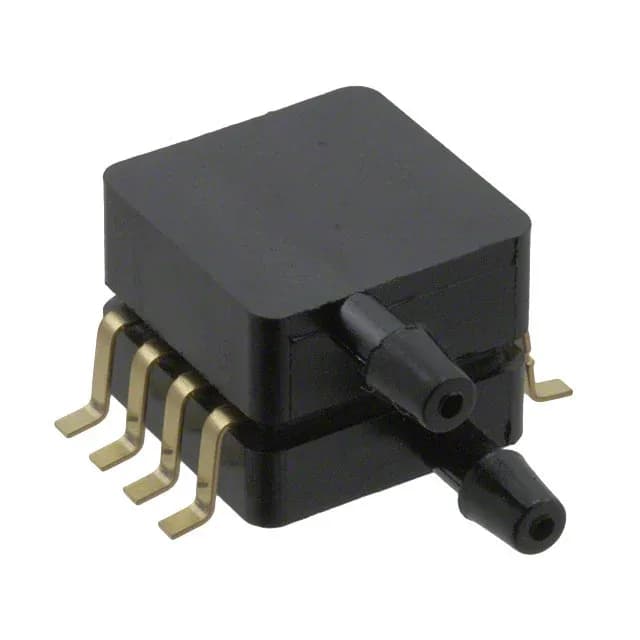

Parameter	MPXV2010GP	MPXV4006GC7U	MPXV5004GC6T1	MPXV5050VC6T1	MPXV5100DP	MPXV7002DP
Accuracy	±1%	±5%	-	±2.5%	±2.5%	±5%
Case	8-SMD, Gull Wing, Side Port	8-DIP (0.550\", 13.97mm), Top Port	8-SMD, Gull Wing, Top Port	8-SMD, Gull Wing, Top Port	8-BSOP (0.475\", 12.06mm Width) Dual Ports, Same Side	8-BSOP (0.475\", 12.06mm Width) Dual Ports, Same Side
Maximum pressure	10.88PSI (75kPa)	3.48PSI (24kPa)	2.32PSI (16kPa)	-29.01PSI (-200kPa)	58.02PSI (400kPa)	±10.88PSI (±75kPa)
Mounting type	Surface Mount	Through Hole	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Operating pressure	1.45PSI (10kPa)	0.87PSI (6kPa)	0.57PSI (3.92kPa)	-7.25PSI (-50kPa)	14.5PSI (100kPa)	±0.29PSI (±2kPa)
Operating temperature	-40°C~125°C	-10°C ~ 60°C	0°C ~ 85°C	-40°C~125°C	-40°C ~ 125°C	10°C ~ 60°C
Output	0 mV ~ 25 mV (10V)	0.2 V ~ 4.7 V	1 V ~ 4.9 V	0.1 V ~ 4.6 V	0.2 V ~ 4.7 V	0.5 V ~ 4.5 V
Output type	Wheatstone Bridge	Analog Voltage	Analog Voltage	Analog Voltage	Analog Voltage	Analog Voltage

Shared specifications

Applications: Board Mount
Features: Temperature Compensated

Request a quote on any NXP Semiconductors MPXV Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
