MPX5010GP
NXP USA Inc.
-40°C ~ 125°CMPX5010±5%
Ref. price$25.5200
Lead time on requestGet quote ›
NXP Semiconductors MPX5 Series
6 variants · NXP Semiconductors
About the NXP Semiconductors NXP Semiconductors MPX5 Series series
The NXP Semiconductors NXP Semiconductors MPX5 Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of Board Mount, case of 6-SIP Module and features of Temperature Compensated. Variants differ by accuracy, maximum pressure and operating pressure, so you can match the exact accuracy your application requires using the selection guide below. All listed NXP Semiconductors MPX5 Series part numbers are active and orderable.
Select a variant by
- Accuracy
- ±2.5% · ±5%
- Maximum pressure
- 5.8PSI (40kPa) · 29.01PSI (200kPa) · 406.11PSI (2800kPa)
- Operating pressure
- 1.45PSI (10kPa) · 2.18PSI ~ 101.53PSI (15kPa ~ 700kPa) · 7.25PSI (50kPa) · 101.53PSI (700kPa)
- Operating temperature
- -40°C ~ 125°C · -40°C~125°C
- Port size
- Male - 0.19\" (4.93mm) Tube · Male - 0.19\" (4.93mm) Tube, Dual
- Pressure type
- Absolute · Differential · Vented Gauge
Variant comparison

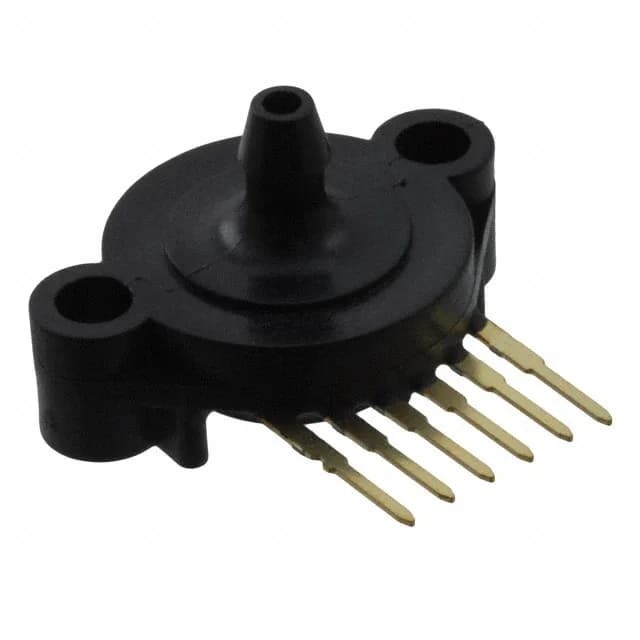

| Parameter | MPX5010GP | MPX5050DP | MPX5700AP | MPX5700ASX | MPX5700DP | MPX5700GP |
|---|---|---|---|---|---|---|
| Accuracy | ±5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% |
| Maximum pressure | 5.8PSI (40kPa) | 29.01PSI (200kPa) | 406.11PSI (2800kPa) | 406.11PSI (2800kPa) | 406.11PSI (2800kPa) | 406.11PSI (2800kPa) |
| Operating pressure | 1.45PSI (10kPa) | 7.25PSI (50kPa) | 2.18PSI ~ 101.53PSI (15kPa ~ 700kPa) | 2.18PSI ~ 101.53PSI (15kPa ~ 700kPa) | 101.53PSI (700kPa) | 101.53PSI (700kPa) |
| Operating temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C~125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Port size | Male - 0.19\" (4.93mm) Tube | Male - 0.19\" (4.93mm) Tube, Dual | Male - 0.19\" (4.93mm) Tube | Male - 0.19\" (4.93mm) Tube | Male - 0.19\" (4.93mm) Tube, Dual | Male - 0.19\" (4.93mm) Tube |
| Pressure type | Vented Gauge | Differential | Absolute | Absolute | Differential | Vented Gauge |
Shared specifications
- Applications
- Board Mount
- Case
- 6-SIP Module
- Features
- Temperature Compensated
- Mounting type
- Through Hole
- Output
- 0.2 V ~ 4.7 V
- Output type
- Analog Voltage
- Package
- Tray
- Port style
- Barbed
- Termination style
- PC Pin
- Voltage
- 4.75V ~ 5.25V
Request a quote on any NXP Semiconductors MPX5 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the NXP Semiconductors NXP Semiconductors MPX5 Series variants differ?
- NXP Semiconductors MPX5 Series part numbers differ by accuracy, maximum pressure, operating pressure and operating temperature. Use the selection guide above to pick by accuracy.
- How many NXP Semiconductors NXP Semiconductors MPX5 Series part numbers are listed?
- 6 NXP Semiconductors NXP Semiconductors MPX5 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for NXP Semiconductors NXP Semiconductors MPX5 Series?
- Request a quote (RFQ) for any NXP Semiconductors MPX5 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
