LPC1102LVUK014
NXP USA Inc.
1.65V ~ 1.95VBulk-40°C~85°C(TA)
Ref. price$2.5400
Lead time on requestGet quote ›
NXP Semiconductors LPC1 Series
96 variants · NXP Semiconductors
About the NXP Semiconductors NXP Semiconductors LPC1 Series series
The NXP Semiconductors NXP Semiconductors LPC1 Series series groups 96 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common core processor of ARM® Cortex®-M0, core size of 32-Bit Single-Core and mounting type of Surface Mount. Variants differ by case, connectivity and data converters, so you can match the exact case your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current NXP Semiconductors LPC1 Series variants and discontinued ones from a single page.
Select a variant by
- Case

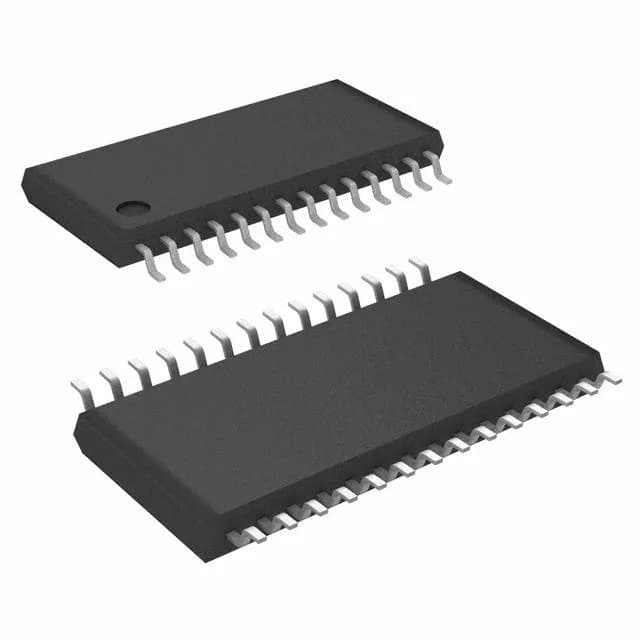

- 16-UFBGA, WLCSP · 25-UFBGA, WLCSP · 28-TSSOP (0.173\", 4.40mm Width) · 32-VQFN Exposed Pad · 48-LQFP
- Connectivity
- I2C, SPI, UART/USART · I²C, SPI, UART/USART · SPI, UART/USART
- Data converters
- A/D 5x10b · A/D 6x8b · A/D 6x10b · A/D 8x10b · A/D 8x10b SAR
- Number of i (O)
- 11 · 21 · 22 · 28 · 42
- Operating temperature
- -40°C ~ 85°C (TA) · -40°C~85°C(TA) · -40°C~105°C(TA)
- Package
- Bulk · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT) · Tray
- Program memory size
- 8KB (8K x 8) · 16KB (16K x 8) · 24KB (24K x 8) · 32KB (32K x 8)
- RAM size
- 2K x 8 · 4K x 8 · 8K x 8
Variant comparison

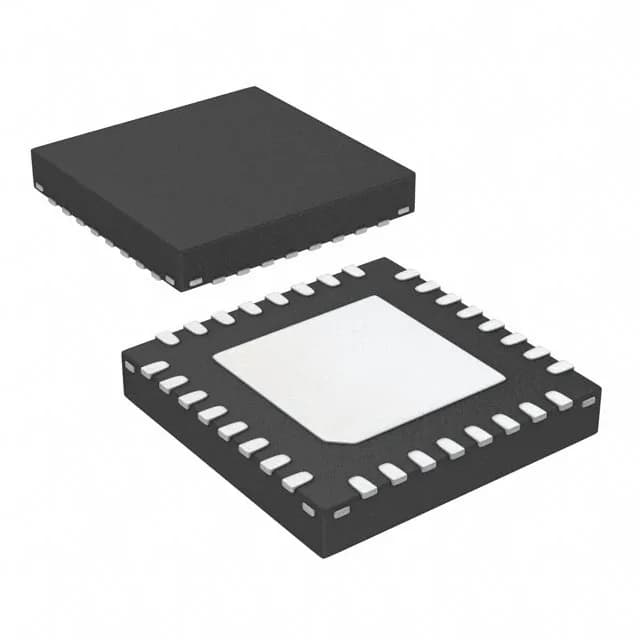

| Parameter | LPC1102LVUK014 | LPC1102UK,118 | LPC1111FHN33/101551 | LPC1111FHN33/102'5 | LPC1111FHN33/203,5 | LPC1112FHN33/101,5 |
|---|---|---|---|---|---|---|
| Case | 25-UFBGA, WLCSP | 16-UFBGA, WLCSP | 32-VQFN Exposed Pad | 32-VQFN Exposed Pad | 32-VQFN Exposed Pad | 32-VQFN Exposed Pad |
| Connectivity | I²C, SPI, UART/USART | SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART |
| Data converters | A/D 6x8b | A/D 5x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b |
| Number of i (O) | 21 | 11 | 28 | 28 | 28 | 28 |
| Operating temperature | -40°C~85°C(TA) | -40°C ~ 85°C (TA) | -40°C~85°C(TA) | -40°C~85°C(TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Package | Bulk | Tape & Reel (TR) Cut Tape (CT) | Bulk | Tape & Reel (TR); Cut Tape (CT) | Tray | Tray |
| Program memory size | 32KB (32K x 8) | 32KB (32K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 16KB (16K x 8) |
| RAM size | 2K x 8 | 8K x 8 | 2K x 8 | 2K x 8 | 4K x 8 | 2K x 8 |
Shared specifications
- Core processor
- ARM® Cortex®-M0
- Core size
- 32-Bit Single-Core
- Mounting type
- Surface Mount
- Oscillator type
- Internal
- Peripherals
- Brown-out Detect/Reset, POR, WDT
- Program memory type
- FLASH
- Speed
- 50MHz
Request a quote on any NXP Semiconductors LPC1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the NXP Semiconductors NXP Semiconductors LPC1 Series variants differ?
- NXP Semiconductors LPC1 Series part numbers differ by case, connectivity, data converters and number of i (O). Use the selection guide above to pick by case.
- How many NXP Semiconductors NXP Semiconductors LPC1 Series part numbers are listed?
- 96 NXP Semiconductors NXP Semiconductors LPC1 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for NXP Semiconductors NXP Semiconductors LPC1 Series?
- Request a quote (RFQ) for any NXP Semiconductors LPC1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
