NXP Semiconductors 74AU Dc Dc Modules Series

5 variants · NXP SemiconductorsAll DC-DC Power Modules →

About the NXP Semiconductors 74AU Dc Dc Modules Series

The NXP Semiconductors 74AU Dc Dc Modules Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - quiescent of 500 nA, input logic level - high of 1.6V ~ 2V and input logic level - low of 0.7V ~ 0.9V. Variants differ by case, current - output high, low and I/O channels, so you can match the exact case your application requires using the selection guide below. All listed NXP Semiconductors 74AU Dc Dc Modules Series part numbers are active and orderable.

Select a variant by

Case: 6-XFDFN · 8-XFDFN
Current - output high, low: -, 4mA · 4mA, 4mA
I/O channels: 2 · 3
Logic type: AND Gate · Inverter · NAND Gate · NOR Gate
Max propagation delay @ v, max CL: 5.4ns @ 3.3V, 30pF · 6.2ns @ 3.3V, 30pF · 6.4ns @ 3.3V, 30pF · 10.5ns @ 3.3V, 30pF · 12.7ns @ 3.3V, 30pF
Number of circuits: 1 · 2 · 3

Shared specifications

Current - quiescent: 500 nA
Input logic level - high: 1.6V ~ 2V
Input logic level - low: 0.7V ~ 0.9V
Mounting: Surface Mount
Operating temperature: -40°C ~ 125°C
Package: Bulk
Voltage: 0.8V ~ 3.6V

Variant comparison

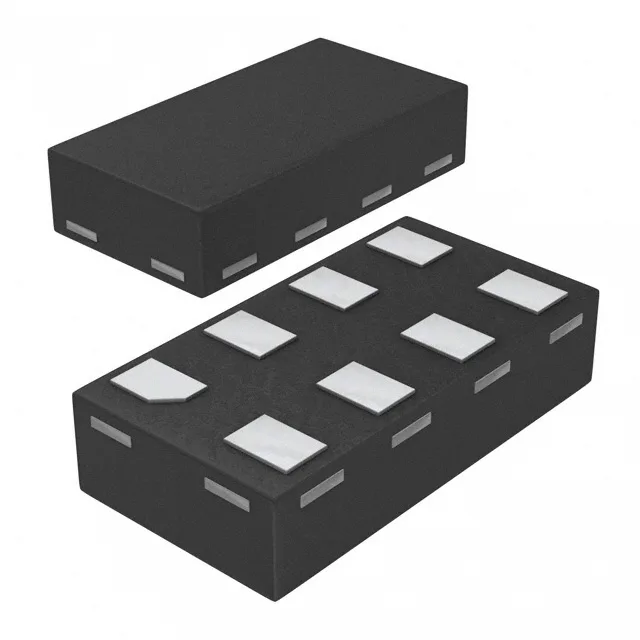

Parameter	74AUP1G08GF/S500	74AUP2G02GF,115	74AUP2G06GF,132	74AUP2G38GT,115	74AUP3G04GF,115
Case	6-XFDFN	8-XFDFN	6-XFDFN	8-XFDFN	8-XFDFN
Current - output high, low	4mA, 4mA	4mA, 4mA	-, 4mA	-, 4mA	4mA, 4mA
I/O channels	2	2	2	2	3
Logic type	AND Gate	NOR Gate	Inverter	NAND Gate	Inverter
Max propagation delay @ v, max CL	6.2ns @ 3.3V, 30pF	6.4ns @ 3.3V, 30pF	10.5ns @ 3.3V, 30pF	12.7ns @ 3.3V, 30pF	5.4ns @ 3.3V, 30pF
Number of circuits	1	2	2	2	3

Request a quote on any NXP Semiconductors 74AU Dc Dc Modules Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
