PCA9306D,118
NXP USA Inc.
Tape & Reel (TR); Cut Tape (CT)-40°C~105°C(TA)Open Drain
Ref. price$0.9400
Lead time on requestGet quote
NXP USA Inc. PCA9 Interface Series
10 variants · NXP USA Inc.
About the NXP USA Inc. PCA9 Interface Series
The NXP USA Inc. PCA9 Interface Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common channel type of Bidirectional, channels per circuit of 2 and data rate of -. Variants differ by case, operating temperature and package, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case

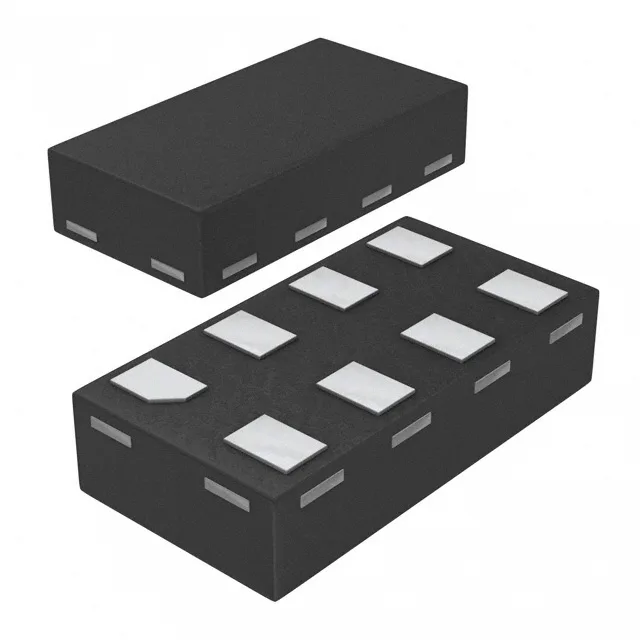

- 8-SOIC (0.154\", 3.90mm Width) · 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) · 8-XFDFN
- Operating temperature
- -40°C ~ 105°C (TA) · -40°C~105°C(TA)
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Shared specifications
- Channel type
- Bidirectional
- Channels per circuit
- 2
- Data rate
- -
- Features
- Auto-Direction Sensing
- Input signal
- -
- Mounting
- Surface Mount
- Number of circuits
- 1
- Output signal
- -
- Output type
- Open Drain
- Translator type
- Voltage Level
- Voltage - VCCA
- 1 V ~ 3.6 V
- Voltage - VCCB
- 1.8 V ~ 5.5 V
Variant comparison
| Parameter | PCA9306D,118 | PCA9306DP,118 | PCA9306GF,115 |
|---|---|---|---|
| Case | 8-SOIC (0.154\", 3.90mm Width) | 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) | 8-XFDFN |
| Operating temperature | -40°C~105°C(TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
Request a quote on any NXP USA Inc. PCA9 Interface Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
