The NXP MK64FX512VDC12 is an ARM Cortex-M4 MCU clocked at 120 MHz, with 512 KB Flash and 192 KB RAM. Connectivity includes CANbus, Ethernet, USB OTG, I²C, SPI, and UART — so this part can serve as a fieldbus gateway or a multi-protocol I/O controller without external transceivers for the digital side. The 37-channel 16-bit ADC and two 12-bit DAC cover analog front-end tasks like current sensing and setpoint generation. The 121-XFBGA package (8x8 mm) keeps the board area tight, though the fine-pitch BGA demands a controlled assembly process.

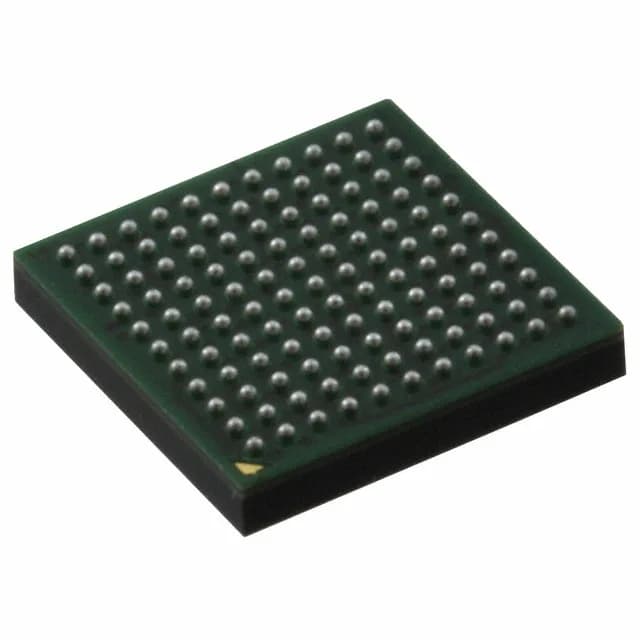

NXP MK64FX512VDC12 Kinetis K60 MCU, ARM Cortex-M4, 120MHz
MPNMK64FX512VDC12
Active
NXP Kinetis K60 series, MK64FX512VDC12, ARM Cortex-M4 single-core at 120MHz, 512KB Flash, 192KB RAM, 86 I/O, 37x16b A/D, 2x12b D/A, USB OTG and Ethernet, 1.71V–3.6V supply, -40°C to 105°C, 121-XFBGA tray.
$21.7300Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Kinetis K60 |
| Mounting | Surface Mount |
| Oscillator type | Internal |
| Program memory type | FLASH |
| Voltage - supply (Vcc (Vdd)) | 1.71V ~ 3.6V |
| Operating temperature | -40°C~105°C(TA) |
| Speed | 120MHz |
| Package | Tray |
| RAM size | 192K x 8 |
| Core size | 32-Bit Single-Core |
| EEPROM size | 4K x 8 |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Number of i (O) | 86 |
| Core processor | ARM® Cortex®-M4 |
| Case | 121-XFBGA |
| Data converters | A/D 37x16b; D/A 2x12b |
| Program memory size | 512KB (512K x 8) |
Product details
Frequently asked questions
Does MK64FX512VDC12 have CAN bus?
Yes, the MK64FX512VDC12 includes CANbus connectivity alongside Ethernet, USB OTG, I²C, SPI, and UART interfaces.
What is the difference between MK64FX512VDC12 and MK64FN512VDC12?
The MK64FX512VDC12 includes a 10/100 Ethernet MAC; the MK64FN512VDC12 omits Ethernet. Both share the same core, memory, package, and pinout.
What is the maximum frequency of MK64FX512VDC12?
The MK64FX512VDC12 is rated for a 120 MHz core speed.
What package is MK64FX512VDC12 in?
The MK64FX512VDC12 is supplied in a 121-ball XFBGA package (8x8 mm body).
