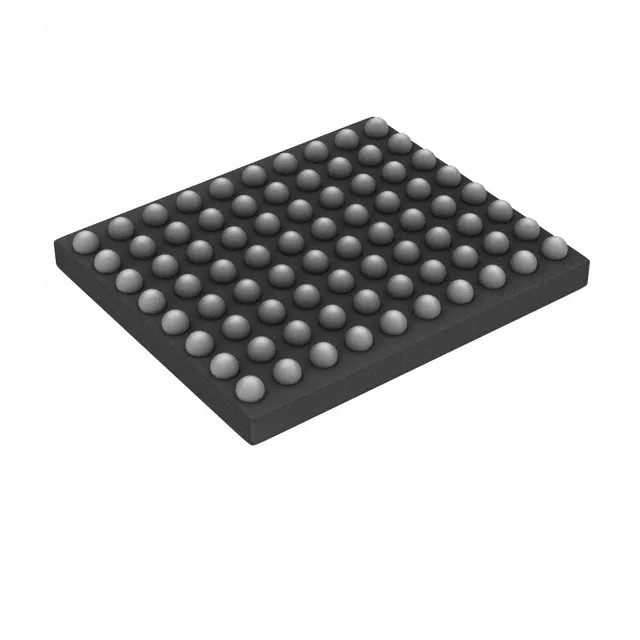

NXP MK22FN256CAP12R, ARM Cortex-M4 120MHz, 256KB Flash, 80-WLCSP
MPNMK22FN256CAP12R
Active
NXP Kinetis K20 series, ARM Cortex-M4 single-core at 120MHz, 256KB Flash, 128KB RAM, USB OTG / I²C / SPI / UART, 52 I/O, 80-WLCSP (4.13×3.56mm), -40 to 85°C, 1.71–3.6V supply.
$7.9108Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Kinetis K20 |
| Mounting | Surface Mount |
| Oscillator type | Internal |
| Program memory type | FLASH |
| Voltage - supply (Vcc (Vdd)) | 1.71V ~ 3.6V |
| Operating temperature | -40°C ~ 85°C (TA) |
| Speed | 120MHz |
| Package | Tape & Reel (TR) |
| RAM size | 128K x 8 |
| Core size | 32-Bit Single-Core |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT |
| Connectivity | I²C, IrDA, SPI, UART/USART, USB, USB OTG |
| Number of i (O) | 52 |
| Core processor | ARM® Cortex®-M4 |
| Case | 80-UFBGA, WLCSP |
| Data converters | A/D 2x16b; D/A 2x12b |
| Program memory size | 256KB (256K x 8) |
Frequently asked questions
What does 120MHz on a Cortex-M4 with an FPU mean for a real-time control design?
The 120MHz clock rate combined with the on-chip FPU removes the software floating-point penalty that Cortex-M0/M0+ cores pay for PID loops, digital filters, or sensor-fusion math — cycle-count budgets that would consume 40–60% of a 72MHz M0 core run at a fraction of that on this part at 120MHz with the FPU engaged.
