NXP USA Inc.
NXP RT1170 series crossover MCU, MIMXRT1171AVM8A, ARM Cortex-M7 32-bit single-core at 800MHz, 2M x 8 RAM, external program memory, 289-LFBGA, -40 to 125°C.
MOQ 1 · Tray · RoHS · EIA-481 · DAP/DDP · T/T
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | RT1170 |
| Mounting | Surface Mount |
| Oscillator type | Internal |
| Program memory type | External Program Memory |
| Operating temperature | -40°C~125°C(TJ) |
| Speed | 800MHz |
| Package | Tray |
| RAM size | 2M x 8 |
| Core size | 32-Bit Single-Core |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Core processor | ARM® Cortex®-M7 |
| Case | 289-LFBGA |
| Data converters | A/D 2x12b; D/A 1x12b |
At 800 MHz, the Cortex-M7 runs a real-time control loop alongside an Ethernet stack and a graphics refresh without a second core. The 2M x 8 SRAM holds packet buffers and stack.
The peripheral set covers dual CANbus, Ethernet with MII/RMII, USB OTG, SPI, I2C, USART, SDIO, and SAI/SPDIF. The 12-bit ADC pair and single 12-bit DAC handle analog feedback loops.

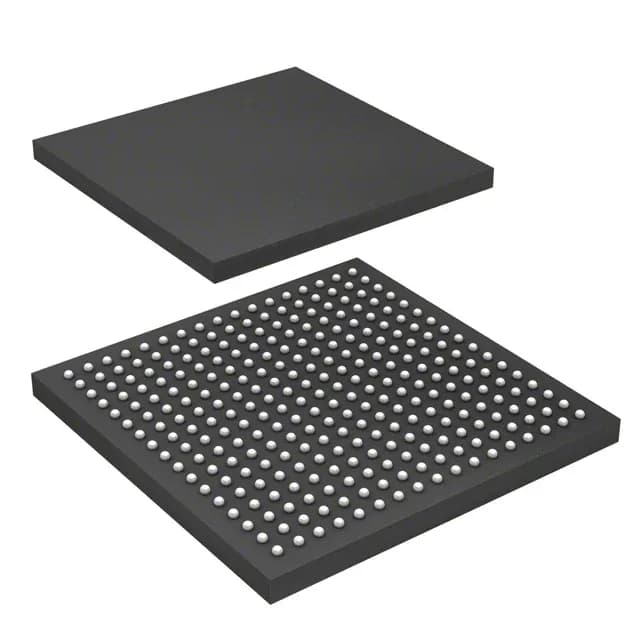

Housed in a 289-ball LFBGA (14×14 mm MAPBGA), the part is surface-mount only.
