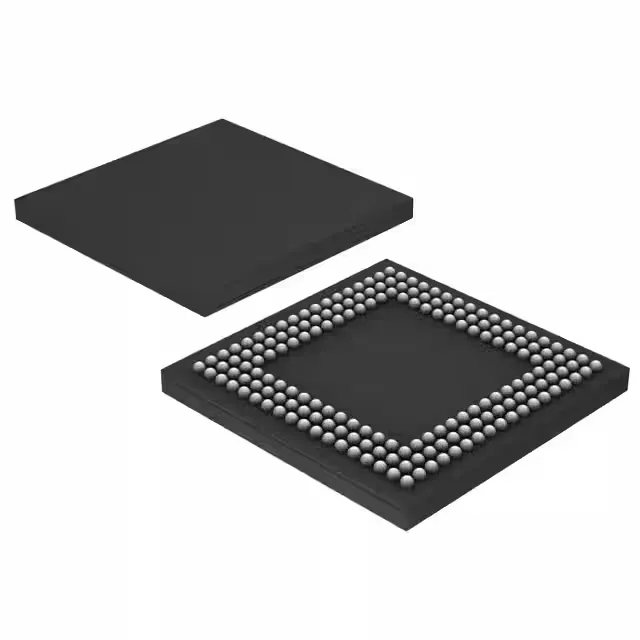

NXP LPC4078FET180K MCU, ARM Cortex-M4 120MHz, 512KB Flash
MPNLPC4078FET180K
Active
NXP LPC4078FET180K: 32-bit ARM Cortex-M4 single-core at 120MHz, 512KB Flash, 96KB SRAM, 4KB EEPROM, 142 I/O, Ethernet/USB OTG/CAN/SPI/UART, 2.4-3.6V supply, -40 to 85°C, 180-TFBGA surface mount in tray.
$16.9300Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LPC40xx |
| Mounting | Surface Mount |
| Oscillator type | Internal |
| Program memory type | FLASH |
| Voltage - supply (Vcc (Vdd)) | 2.4V ~ 3.6V |
| Operating temperature | -40°C~85°C(TA) |
| Speed | 120MHz |
| Package | Tray |
| RAM size | 96K x 8 |
| Core size | 32-Bit Single-Core |
| EEPROM size | 4K x 8 |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, Microwire, QEI, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG |
| Number of i (O) | 142 |
| Core processor | ARM® Cortex®-M4 |
| Case | 180-TFBGA |
| Data converters | A/D 8x12b SAR; D/A 1x10b |
| Program memory size | 512KB (512K x 8) |
Frequently asked questions
Is the LPC4078FET180K available via RFQ confirmation and what is the lead time?
Availability and current lead times are confirmed at quote time — submit an RFQ and the sourcing team will check multi-source stock across the distribution network and come back with a committed delivery window.
What is the listed speed of the LPC4078FET180K?
The LPC4078FET180K is rated for 120MHz operation on its ARM Cortex-M4 core.
What series does the LPC4078FET180K belong to?
It is a member of the NXP LPC40xx series, a 32-bit industrial embedded MCU family based on the ARM Cortex-M4 core.
