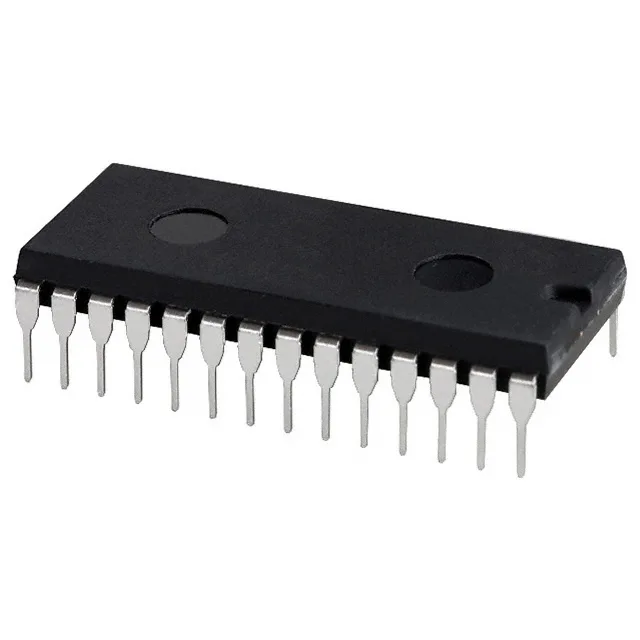

LPC1114FN28/102,12 - NXP USA Inc.
MPNLPC1114FN28/102,12
Active
$3.6400Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LPC1100L |
| Mounting | Through Hole |
| Oscillator type | Internal |
| Program memory type | FLASH |
| Voltage - supply (Vcc (Vdd)) | 1.8V ~ 3.6V |
| Operating temperature | -40°C ~ 85°C (TA) |
| Speed | 50MHz |
| Package | Tube |
| RAM size | 4K x 8 |
| Core size | 32-Bit Single-Core |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Connectivity | I²C, SPI, UART/USART |
| Number of i (O) | 22 |
| Core processor | ARM® Cortex®-M0 |
| Case | 28-DIP (0.600\", 15.24mm) |
| Data converters | A/D 6x10b |
| Program memory size | 32KB (32K x 8) |
Frequently asked questions
What is the datasheet for LPC1114FN28/102,12?
Engineers need full electrical specs, timing diagrams, and register maps to validate the part in their design.
Where can I buy LPC1114FN28/102,12 in stock?
Buyers need immediate availability and pricing to fill BOM lines and avoid production delays.
What is the pinout of LPC1114FN28/102,12?
Designers and techs need pin mapping for PCB layout or replacing a failed DIP-28 MCU.
What is the equivalent or replacement for LPC1114FN28/102,12?
Brokers and sourcing agents search for drop-in alternatives if the part is in short supply or end-of-life.
Is LPC1114FN28/102,12 obsolete or active?
Buyers need lifecycle status to know if the part is safe for long-term production or requires a redesign.
What is the price of LPC1114FN28/102,12?
Cost is a critical factor for procurement decisions and budget planning.
