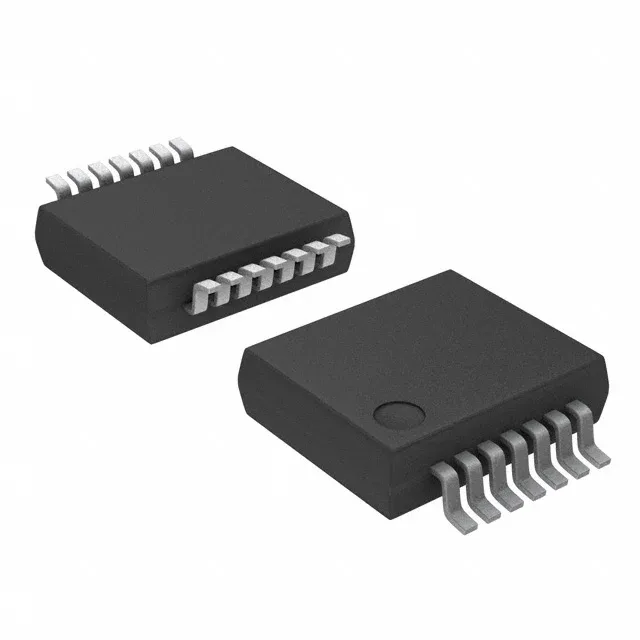

NXP USA Inc. 74HC14DB,118
MPN74HC14DB,118
Obsolete
$0.2500Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 74HC |
| Logic type | Inverter |
| Mounting | Surface Mount |
| Supply voltage | 2V ~ 6V |
| Current - quiescent | 2 µA |
| Current - output high, low | 5.2mA, 5.2mA |
| I/O channels | 1 |
| Operating temperature | -40°C ~ 125°C |
| Package | Bulk |
| Features | Schmitt Trigger |
| Case | 14-SSOP (0.209\", 5.30mm Width) |
| Number of circuits | 6 |
| Input logic level - low | 0.3V ~ 1.2V |
| Input logic level - high | 1.5V ~ 4.2V |
| Max propagation delay @ v, max CL | 21ns @ 6V, 50pF |
