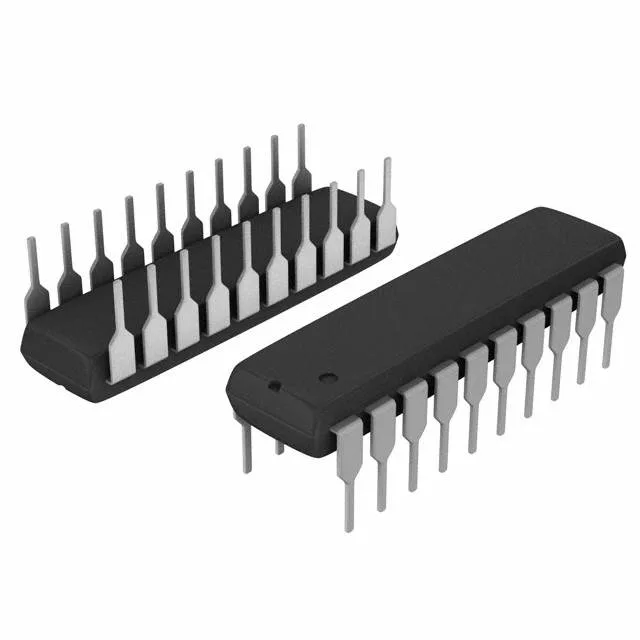

N79E822ADG
Nuvoton Technology Corporation
Through HoleTube20MHz
Ref. price$1.3332
Lead time on requestGet quote
Nuvoton Technology Corporation N79E8 Series
22 variants · Nuvoton Technology Corporation
About the Nuvoton Technology Corporation N79E8 Series
The Nuvoton Technology Corporation N79E8 Series series groups 22 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common core processor of 8051, core size of 8-Bit and data converters of A/D 4x10b. Variants differ by case, connectivity and mounting, so you can match the exact case your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Nuvoton Technology Corporation N79E8 Series variants and discontinued ones from a single page.
Select a variant by
- Case
- 20-DIP (0.300\", 7.62mm) · 20-SOIC (0.295\", 7.50mm Width) · 20-SSOP (0.209\", 5.30mm Width)
- Connectivity
- I2C, UART/USART · I²C, UART/USART
- Mounting
- Surface Mount · Through Hole
- Operating temperature
- -40°C ~ 85°C (TA) · -40°C~85°C(TA)
- Program memory size
- 2KB (2K x 8) · 4KB (4K x 8) · 8KB (8K x 8) · 16KB (16K x 8)
Shared specifications
- Core processor
- 8051
- Core size
- 8-Bit
- Data converters
- A/D 4x10b
- EEPROM size
- 256 x 8
- Number of i (O)
- 18
- Oscillator type
- Internal
- Package
- Tube
- Peripherals
- Brown-out Detect/Reset, LED, LVD, POR, PWM, WDT
- Program memory type
- FLASH
- RAM size
- 256 x 8
- Speed
- 20MHz
- Voltage - supply (Vcc (Vdd))
- 2.7V ~ 5.5V
Variant comparison
| Parameter | N79E822ADG | N79E822ARG | N79E822ASG | N79E823ADG | N79E823ARG | N79E823ASG |
|---|---|---|---|---|---|---|
| Case | 20-DIP (0.300\", 7.62mm) | 20-SSOP (0.209\", 5.30mm Width) | 20-SOIC (0.295\", 7.50mm Width) | 20-DIP (0.300\", 7.62mm) | 20-SSOP (0.209\", 5.30mm Width) | 20-SOIC (0.295\", 7.50mm Width) |
| Connectivity | I²C, UART/USART | I²C, UART/USART | I²C, UART/USART | I2C, UART/USART | I²C, UART/USART | I²C, UART/USART |
| Mounting | Through Hole | Surface Mount | Surface Mount | Through Hole | Surface Mount | Surface Mount |
| Operating temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Program memory size | 2KB (2K x 8) | 2KB (2K x 8) | 2KB (2K x 8) | 4KB (4K x 8) | 4KB (4K x 8) | 4KB (4K x 8) |
Request a quote on any Nuvoton Technology Corporation N79E8 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
