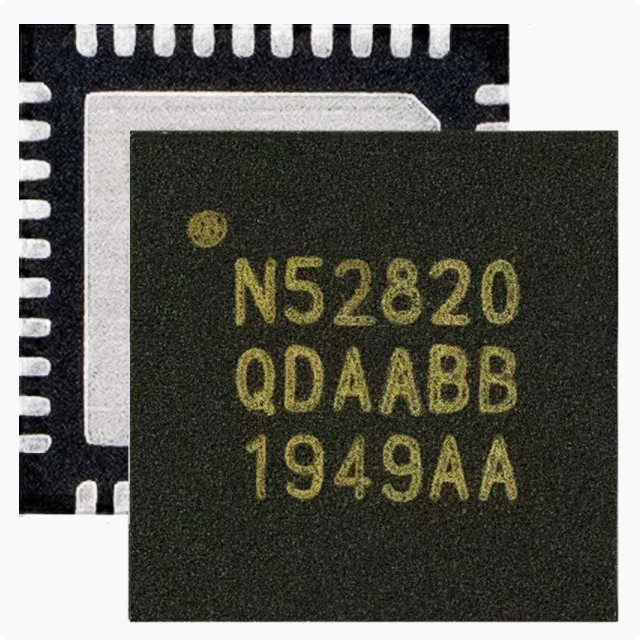

NRF52820-QDAA-D-R
Nordic Semiconductor ASA
Tape & Reel (TR) Cut Tape (CT)SPI, UART, USB-40°C ~ 105°C
Ref. price$4.1000
Lead time on requestGet quote
Nordic Semiconductor ASA NRF528 Series
59 variants · Nordic Semiconductor ASAAll RF & Wireless ICs →
About the Nordic Semiconductor ASA NRF528 Series
The Nordic Semiconductor ASA NRF528 Series series groups 59 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common data rate of 2Mbps, frequency of 2.4GHz and mounting of Surface Mount. Variants differ by current - receiving, current - transmitting and interface, so you can match the exact current - receiving your application requires using the selection guide below.
Select a variant by
- Current - receiving
- 3.5mA ~ 11.2mA · 4.6mA
- Current - transmitting
- 2.1mA ~ 15.4mA · 4.6mA · 4.6mA ~ 7mA · 4.6mA ~ 25mA
- Interface
- - · ADC, GPIO, I²S, SPI, UART · ADC, PDM, PWM, SPI, UART · I2C, SPI, UART · I²C, UART
- Modulation
- - · FSK
- Operating temperature
- - · -40°C ~ 85°C · -40°C ~ 85°C (TA) · -40°C~85°C
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT) · Tray
- Power - output
- -96dBm · 4dBm
- Protocol
- Bluetooth v5.0 · Bluetooth v5.2 · Bluetooth, Thread
Shared specifications
- Data rate
- 2Mbps
- Frequency
- 2.4GHz
- Mounting
- Surface Mount
- RF family
- Bluetooth
- Type
- TxRx + MCU
- Voltage
- 1.7V ~ 3.6V
Variant comparison
| Parameter | NRF52805-CAAA-B-R | NRF52805-CAAA-R | NRF52805-CAAA-R7 | NRF52810-CAAA-E-R7 | NRF52810-CAAA-R | NRF52810-CAAA-R7 |
|---|---|---|---|---|---|---|
| Current - receiving | 3.5mA ~ 11.2mA | 4.6mA | 4.6mA | 4.6mA | 4.6mA | 4.6mA |
| Current - transmitting | 2.1mA ~ 15.4mA | 4.6mA | 4.6mA | 4.6mA ~ 7mA | 4.6mA ~ 7mA | 4.6mA ~ 7mA |
| Interface | I2C, SPI, UART | ADC, GPIO, I²S, SPI, UART | ADC, GPIO, I²S, SPI, UART | - | ADC, PDM, PWM, SPI, UART | ADC, PDM, PWM, SPI, UART |
| Modulation | FSK | - | - | FSK | - | - |
| Operating temperature | -40°C ~ 85°C | -40°C~85°C | -40°C~85°C | -40°C ~ 85°C (TA) | - | - |
| Package | Tape & Reel (TR) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) Cut Tape (CT) |
| Power - output | 4dBm | 4dBm | 4dBm | -96dBm | 4dBm | 4dBm |
| Protocol | Bluetooth v5.0 | Bluetooth v5.2 | Bluetooth v5.2 | Bluetooth, Thread | Bluetooth v5.0 | Bluetooth v5.0 |
Request a quote on any Nordic Semiconductor ASA NRF528 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
