NRF24LE1-F16Q24-R
Nordic Semiconductor ASA
Tape & Reel (TR)I²C, JTAG, SPI, UART-40°C~85°C
Ref. price$4.1700
Lead time on requestGet quote
Nordic Semiconductor ASA NRF24LE1 Series
18 variants · Nordic Semiconductor ASA
About the Nordic Semiconductor ASA NRF24LE1 Series
The Nordic Semiconductor ASA NRF24LE1 Series series groups 18 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - receiving of 12.4mA ~ 13.3mA, current - transmitting of 6.8mA ~ 11.1mA and data rate of 2Mbps. Variants differ by case, GPIO and interface, so you can match the exact case your application requires using the selection guide below. All listed Nordic Semiconductor ASA NRF24LE1 Series part numbers are active and orderable.
Select a variant by
- Case

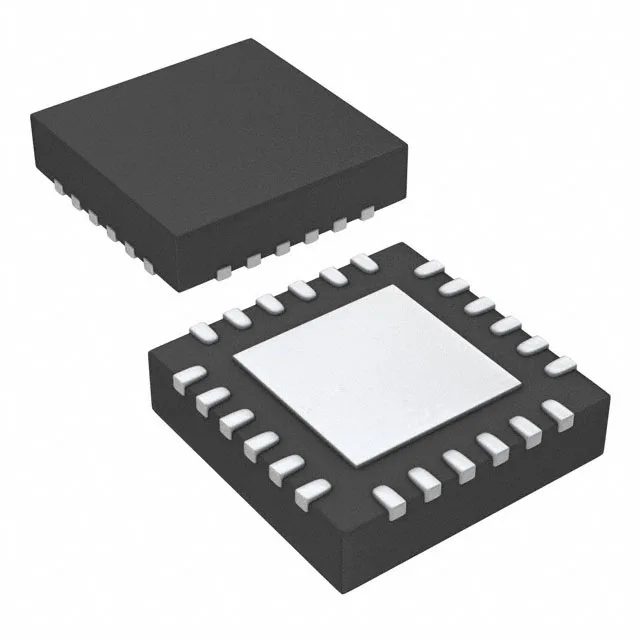

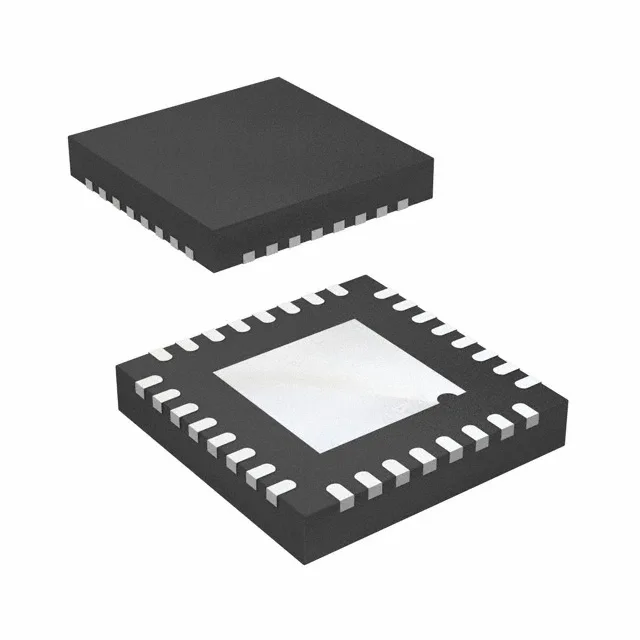

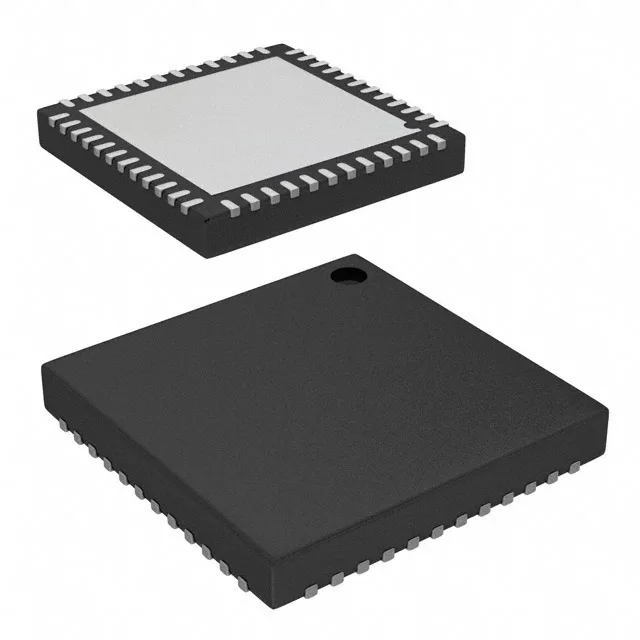

- 24-VFQFN Exposed Pad · 32-VFQFN Exposed Pad · 48-VFQFN Exposed Pad
- GPIO
- 7 · 15 · 31
- Interface
- I²C, JTAG, SPI, UART · I²C, SPI, UART
- Memory size
- 16kB Flash, 1kB SRAM · 16kB OTP, 1kB SRAM
- Operating temperature
- -40°C ~ 85°C · -40°C~85°C
- Package
- Tape & Reel (TR) · Tray
Shared specifications
- Current - receiving
- 12.4mA ~ 13.3mA
- Current - transmitting
- 6.8mA ~ 11.1mA
- Data rate
- 2Mbps
- Frequency
- 2.4GHz
- Modulation
- GFSK
- Mounting
- Surface Mount
- Power - output
- 0dBm
- Protocol
- -
- RF family
- General ISM > 1GHz
- Sensitivity
- -94dBm
- Type
- TxRx + MCU
- Voltage
- 1.9V ~ 3.6V
Variant comparison
| Parameter | NRF24LE1-F16Q24-R | NRF24LE1-F16Q24-R7 | NRF24LE1-F16Q24-T | NRF24LE1-F16Q32-R | NRF24LE1-F16Q32-R7 | NRF24LE1-F16Q32-T |
|---|---|---|---|---|---|---|
| Case | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| GPIO | 7 | 7 | 7 | 15 | 15 | 15 |
| Interface | I²C, JTAG, SPI, UART | I²C, JTAG, SPI, UART | I²C, JTAG, SPI, UART | I²C, JTAG, SPI, UART | I²C, JTAG, SPI, UART | I²C, JTAG, SPI, UART |
| Memory size | 16kB Flash, 1kB SRAM | 16kB Flash, 1kB SRAM | 16kB Flash, 1kB SRAM | 16kB Flash, 1kB SRAM | 16kB Flash, 1kB SRAM | 16kB Flash, 1kB SRAM |
| Operating temperature | -40°C~85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package | Tape & Reel (TR) | Tape & Reel (TR) | Tray | Tape & Reel (TR) | Tape & Reel (TR) | Tray |
Request a quote on any Nordic Semiconductor ASA NRF24LE1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
