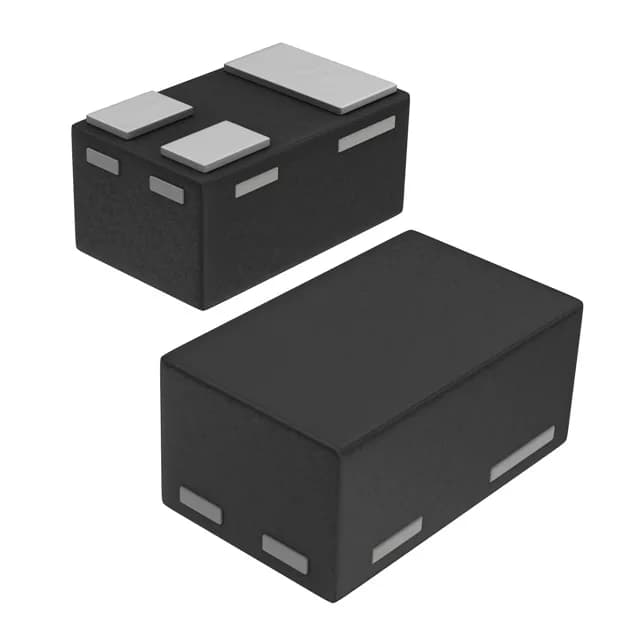

PDTC114EM,315
Nexperia USA Inc.
Tape & Reel (TR) Cut Tape (CT)250 mWSurface Mount
Ref. price$0.2900
Lead time on requestGet quote ›
Nexperia USA Inc. PDTC Series
42 variants · Nexperia USA Inc.
About the Nexperia USA Inc. Nexperia USA Inc. PDTC Series series
The Nexperia USA Inc. Nexperia USA Inc. PDTC Series series groups 42 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common package of Tape & Reel (TR) Cut Tape (CT). Variants differ by case, current - collector (Ic) and current - collector cutoff, so you can match the exact case your application requires using the selection guide below. All listed Nexperia USA Inc. PDTC Series part numbers are active and orderable.
Select a variant by
- Case
- 3-XDFN Exposed Pad · 3-XFDFN · SC-70, SOT-323 · SC-101, SOT-883 · TO-236-3, SC-59, SOT-23-3
- Current - collector (Ic)
- 20 mA · 100 mA
- Current - collector cutoff
- 1µA · 100nA
- DC current gain (hFE) (Min) @ ic, vce
- 30 @ 5mA, 5V · 80 @ 5mA, 5V · 100 @ 5mA, 5V · 200 @ 1mA, 5V
- Mounting type
- Surface Mount · Surface Mount, Wettable Flank
- Resistor - base (R1)
- 10 kOhms · 100 kOhms
- Transistor type
- NPN - Pre-Biased · PNP - Pre-Biased
- Vce saturation (Max) @ ib, ic
- 100mV @ 250µA, 5mA · 100mV @ 500µA, 10mA · 150mV @ 250µA, 5mA · 150mV @ 500µA, 10mA
Variant comparison
| Parameter | PDTC114EM,315 | PDTC114EQBZ | PDTC114EQC-QZ | PDTC114ET-QR | PDTC114EU,115 | PDTC114TT,215 |
|---|---|---|---|---|---|---|
| Case | SC-101, SOT-883 | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad | TO-236-3, SC-59, SOT-23-3 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 |
| Current - collector (Ic) | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA |
| Current - collector cutoff | 1µA | 100nA | 100nA | 1µA | 1µA | 1µA |
| DC current gain (hFE) (Min) @ ic, vce | 30 @ 5mA, 5V | 30 @ 5mA, 5V | 30 @ 5mA, 5V | 30 @ 5mA, 5V | 30 @ 5mA, 5V | 200 @ 1mA, 5V |
| Mounting type | Surface Mount | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount | Surface Mount | Surface Mount |
| Resistor - base (R1) | 10 kOhms | 10 kOhms | 10 kOhms | 10 kOhms | 10 kOhms | 10 kOhms |
| Transistor type | NPN - Pre-Biased | PNP - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased |
| Vce saturation (Max) @ ib, ic | 150mV @ 500µA, 10mA | 100mV @ 500µA, 10mA | 100mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA |
Shared specifications
- Package
- Tape & Reel (TR) Cut Tape (CT)
Request a quote on any Nexperia USA Inc. PDTC Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Nexperia USA Inc. Nexperia USA Inc. PDTC Series variants differ?
- Nexperia USA Inc. PDTC Series part numbers differ by case, current - collector (Ic), current - collector cutoff and DC current gain (hFE) (Min) @ ic, vce. Use the selection guide above to pick by case.
- How many Nexperia USA Inc. Nexperia USA Inc. PDTC Series part numbers are listed?
- 42 Nexperia USA Inc. Nexperia USA Inc. PDTC Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Nexperia USA Inc. Nexperia USA Inc. PDTC Series?
- Request a quote (RFQ) for any Nexperia USA Inc. PDTC Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
