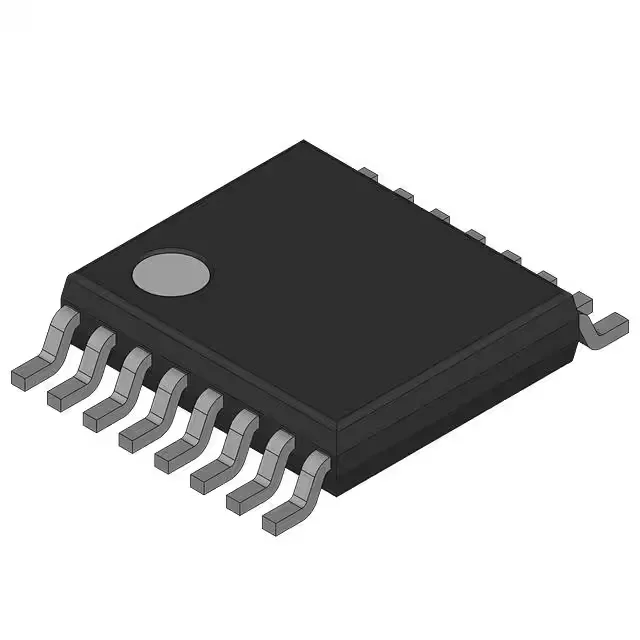

74HC112PW,118
Nexperia USA Inc.
74HCTape & Reel (TR); Cut Tape (CT)JK Type
Ref. price$0.6
Lead time on requestGet quote
Nexperia USA Inc. 74HC Microcontrollers Series
14 variants · Nexperia USA Inc.
About the Nexperia USA Inc. 74HC Microcontrollers Series
The Nexperia USA Inc. 74HC Microcontrollers Series series groups 14 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting of Surface Mount. Variants differ by case, operating temperature and package, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 5-TSSOP, SC-70-5, SOT-353 · 6-TSSOP, SC-88, SOT-363 · 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) · 14-SOIC (0.154\", 3.90mm Width) · 14-TSSOP (0.173\", 4.40mm Width) · 16-SOIC (0.154\", 3.90mm Width) · 16-TSSOP (0.173\", 4.40mm Width) · 16-VFQFN Exposed Pad · 20-SOIC (0.295\", 7.50mm Width)
- Operating temperature
- -40°C ~ 125°C · -40°C ~ 125°C (TA)
- Package
- Bulk · Tape & Reel (TR); Cut Tape (CT)
- Voltage
- 2 V ~ 6 V · 2V ~ 6V · 4.5 V ~ 5.5 V · 4.5V ~ 5.5V
- Current - output high, low
- 2mA, 2mA · 4mA, 4mA · 4mA, 5.2mA · 5.2mA, 5.2mA · 6mA, 6mA
- Current - quiescent
- 1 µA · 2 µA · 4 µA · 8 µA · 20 µA
- Logic type
- Binary Counter · Buffer, Non-Inverting · Counter, Decade · Inverter · NAND Gate · NOR Gate · OR Gate
Shared specifications
- Mounting
- Surface Mount
Variant comparison
| Parameter | 74HC112PW,118 | 74HC2G14GW,125 | 74HC2G32DP,125 | 74HC30PW-Q100J | 74HC4075D-Q100J | 74HCT126D,653 |
|---|---|---|---|---|---|---|
| Case | 16-TSSOP (0.173\", 4.40mm Width) | 6-TSSOP, SC-88, SOT-363 | 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) | 14-TSSOP (0.173\", 4.40mm Width) | 14-SOIC (0.154\", 3.90mm Width) | 14-SOIC (0.154\", 3.90mm Width) |
| Operating temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Voltage | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 4.5V ~ 5.5V |
| Current - output high, low | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 6mA, 6mA |
| Current - quiescent | 4 µA | 1 µA | 1 µA | 2 µA | 2 µA | — |
| Logic type | — | Inverter | OR Gate | NAND Gate | OR Gate | Buffer, Non-Inverting |
Request a quote on any Nexperia USA Inc. 74HC Microcontrollers Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
