74HC107D,653
Nexperia USA Inc.
Tape & Reel (TR) Cut Tape (CT)-40°C ~ 125°C (TA)85 MHz
Ref. price$0.6000
Lead time on requestGet quote ›
Nexperia USA Inc. 74HC Series
46 variants · Nexperia USA Inc.
About the Nexperia USA Inc. Nexperia USA Inc. 74HC Series series
The Nexperia USA Inc. Nexperia USA Inc. 74HC Series series groups 46 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common input capacitance of 3.5 pF, mounting type of Surface Mount and voltage of 2V ~ 6V. Variants differ by case, current - output high, low and current - quiescent, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 14-SOIC (0.154\", 3.90mm Width) · 14-VFQFN Exposed Pad · 16-SOIC (0.154\", 3.90mm Width) · 20-SOIC (0.295\", 7.50mm Width) · 20-TSSOP (0.173\", 4.40mm Width) · 20-VFQFN Exposed Pad
- Current - output high, low
- 5.2mA, 5.2mA · 7.8mA, 7.8mA
- Current - quiescent
- 4 µA · 8 µA · 40 µA
- Frequency
- 81 MHz · 82 MHz · 85 MHz · 107 MHz · 122 MHz · 133 MHz
- Function
- Master Reset · Reset · Set(Preset) and Reset · Standard
- Max propagation delay @ v, max CL
- 16ns @ 6V, 50pF · 26ns @ 6V, 50pF · 27ns @ 6V, 50pF · 28ns @ 6V, 50pF · 37ns @ 6V, 50pF
- Number of bits per element
- 1 · 6 · 8
- Number of elements
- 1 · 2
Variant comparison

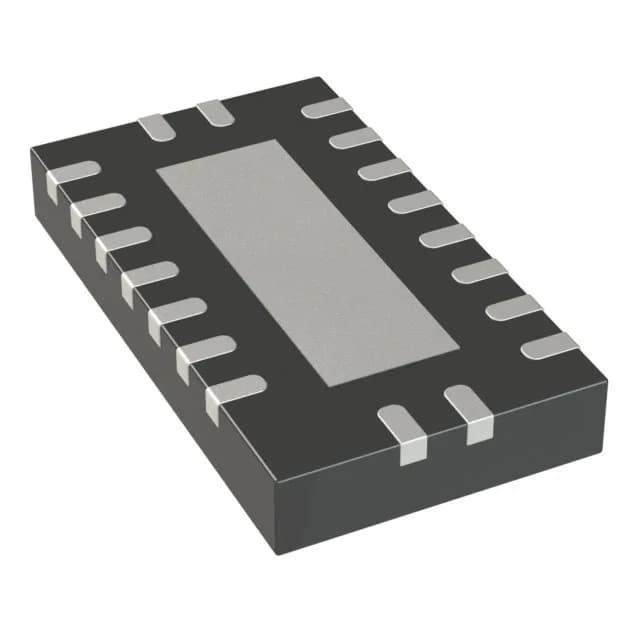

| Parameter | 74HC107D,653 | 74HC109D-Q100J | 74HC174D,653 | 74HC273BQ,115 | 74HC273D,653 | 74HC273D-Q100J |
|---|---|---|---|---|---|---|
| Case | 14-SOIC (0.154\", 3.90mm Width) | 16-SOIC (0.154\", 3.90mm Width) | 16-SOIC (0.154\", 3.90mm Width) | 20-VFQFN Exposed Pad | 20-SOIC (0.295\", 7.50mm Width) | 20-SOIC (0.295\", 7.50mm Width) |
| Current - output high, low | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA |
| Current - quiescent | 4 µA | 4 µA | 8 µA | 8 µA | 8 µA | 8 µA |
| Frequency | 85 MHz | 81 MHz | 107 MHz | 122 MHz | 122 MHz | 122 MHz |
| Function | Reset | Set(Preset) and Reset | Master Reset | Master Reset | Master Reset | Master Reset |
| Max propagation delay @ v, max CL | 27ns @ 6V, 50pF | 16ns @ 6V, 50pF | 28ns @ 6V, 50pF | 26ns @ 6V, 50pF | 26ns @ 6V, 50pF | 26ns @ 6V, 50pF |
| Number of bits per element | 1 | 1 | 6 | 8 | 8 | 8 |
| Number of elements | 2 | 2 | 1 | 1 | 1 | 1 |
Shared specifications
- Input capacitance
- 3.5 pF
- Mounting type
- Surface Mount
- Voltage
- 2V ~ 6V
Request a quote on any Nexperia USA Inc. 74HC Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Nexperia USA Inc. Nexperia USA Inc. 74HC Series variants differ?
- Nexperia USA Inc. 74HC Series part numbers differ by case, current - output high, low, current - quiescent and frequency. Use the selection guide above to pick by case.
- How many Nexperia USA Inc. Nexperia USA Inc. 74HC Series part numbers are listed?
- 46 Nexperia USA Inc. Nexperia USA Inc. 74HC Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Nexperia USA Inc. Nexperia USA Inc. 74HC Series?
- Request a quote (RFQ) for any Nexperia USA Inc. 74HC Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
