74HC4040D,653
Nexperia USA Inc.
74HCTape & Reel (TR); Cut Tape (CT)-40°C ~ 125°C
Ref. price$0.66
Lead time on requestGet quote
Nexperia USA Inc. 74HC Analog Series
59 variants · Nexperia USA Inc.
About the Nexperia USA Inc. 74HC Analog Series
The Nexperia USA Inc. 74HC Analog Series series groups 59 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting of Surface Mount. Variants differ by case, operating temperature and package, so you can match the exact case your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Nexperia USA Inc. 74HC Analog Series variants and discontinued ones from a single page.
Select a variant by
- Case
- 16-SOIC (0.154\", 3.90mm Width) · 16-SSOP (0.209\", 5.30mm Width) · 16-TSSOP (0.173\", 4.40mm Width) · 16-VFQFN Exposed Pad
- Operating temperature
- -40°C ~ 125°C · -40°C ~ 125°C (TA) · -40°C~125°C(TA)
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT) · Tube
- -3db bandwidth
- 170MHz · 180MHz
- Crosstalk
- - · -60dB @ 1MHz
- Current - leakage (IS(off))
- 2µA · 100nA · 400nA
- Multiplexer (Demultiplexer circuit)
- 2:1 · 4:1 · 8:1
Shared specifications
- Mounting
- Surface Mount
Variant comparison

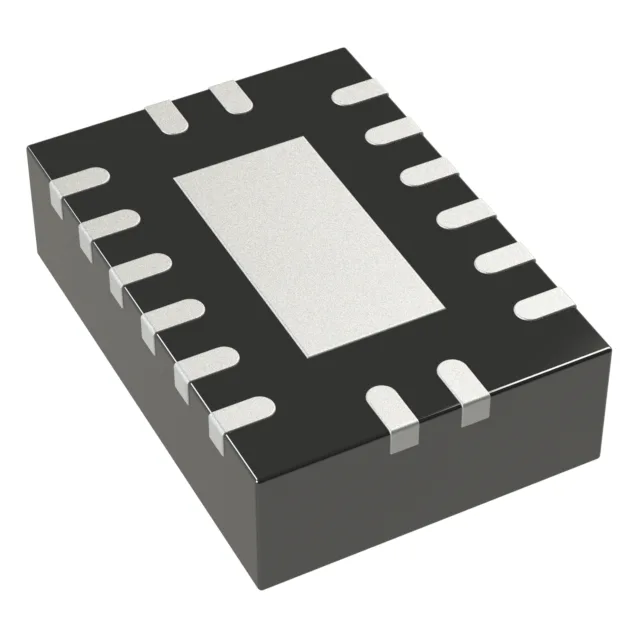

| Parameter | 74HC4040D,653 | 74HC4040PW-Q100J | 74HC4051BQ-Q100,11 | 74HC4052D-Q100,118 | 74HC4053PW,118 | 74HC4053PW-Q100,11 |
|---|---|---|---|---|---|---|
| Case | 16-SOIC (0.154\", 3.90mm Width) | 16-TSSOP (0.173\", 4.40mm Width) | 16-VFQFN Exposed Pad | 16-SOIC (0.154\", 3.90mm Width) | 16-TSSOP (0.173\", 4.40mm Width) | 16-TSSOP (0.173\", 4.40mm Width) |
| Operating temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
| -3db bandwidth | — | — | 180MHz | 180MHz | 170MHz | 170MHz |
| Crosstalk | — | — | - | -60dB @ 1MHz | -60dB @ 1MHz | -60dB @ 1MHz |
| Current - leakage (IS(off)) | — | — | 400nA | 2µA | 100nA | 100nA |
| Multiplexer (Demultiplexer circuit) | — | — | 8:1 | 4:1 | 2:1 | 2:1 |
Request a quote on any Nexperia USA Inc. 74HC Analog Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
