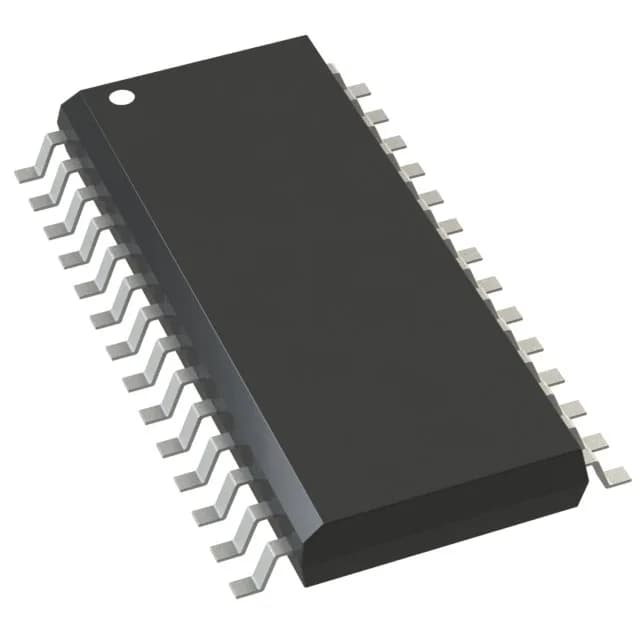

AVR64DB28-E/SO
Microchip Technology
Tube-40°C~125°C(TA)24MHz
Ref. price$2.3100
Lead time on requestGet quote ›
Microchip Technology AVR64DB Series
14 variants · Microchip Technology
About the Microchip Technology Microchip Technology AVR64DB Series series
The Microchip Technology Microchip Technology AVR64DB Series series groups 14 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common core processor of AVR, core size of 8-Bit and EEPROM size of 512 x 8. Variants differ by case, connectivity and data converters, so you can match the exact case your application requires using the selection guide below. All listed Microchip Technology AVR64DB Series part numbers are active and orderable.
Select a variant by
- Case
- 28-DIP (0.300\", 7.62mm) · 28-SOIC (0.295\", 7.50mm Width) · 28-SSOP (0.209\", 5.30mm Width) · 32-VFQFN Exposed Pad · 48-TQFP · 48-VFQFN Exposed Pad · 64-VFQFN Exposed Pad
- Connectivity
- I2C, SPI, UART/USART · I²C, SPI, UART/USART
- Data converters
- A/D 9x12b; D/A 1x10b · A/D 13x12b; D/A 1x10b · A/D 18x12b; D/A 1x10b · A/D 22x12b; D/A 1x10b
- Mounting type
- Surface Mount · Through Hole
- Number of i (O)
- 21 · 25 · 40 · 54
- Operating temperature
- -40°C ~ 125°C (TA) · -40°C~85°C(TA) · -40°C~125°C(TA)
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT) · Tray · Tube
Variant comparison

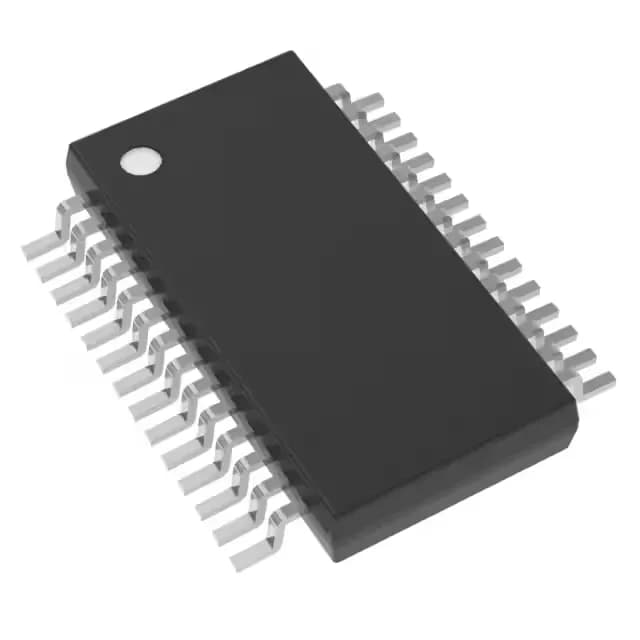

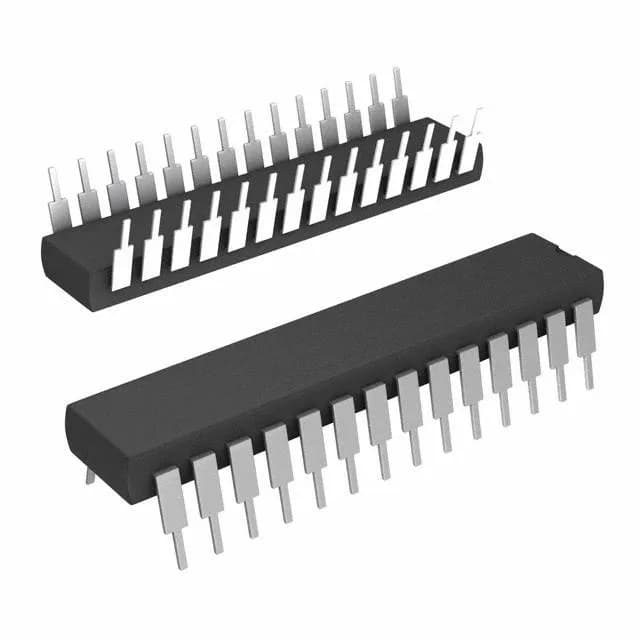

| Parameter | AVR64DB28-E/SO | AVR64DB28-E/SP | AVR64DB28-E/SS | AVR64DB28-I/SO | AVR64DB28-I/SS | AVR64DB28T-E/SO |
|---|---|---|---|---|---|---|
| Case | 28-SOIC (0.295\", 7.50mm Width) | 28-DIP (0.300\", 7.62mm) | 28-SSOP (0.209\", 5.30mm Width) | 28-SOIC (0.295\", 7.50mm Width) | 28-SSOP (0.209\", 5.30mm Width) | 28-SOIC (0.295\", 7.50mm Width) |
| Connectivity | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART |
| Data converters | A/D 9x12b; D/A 1x10b | A/D 9x12b; D/A 1x10b | A/D 9x12b; D/A 1x10b | A/D 9x12b; D/A 1x10b | A/D 9x12b; D/A 1x10b | A/D 9x12b; D/A 1x10b |
| Mounting type | Surface Mount | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Number of i (O) | 21 | 21 | 21 | 21 | 21 | 21 |
| Operating temperature | -40°C~125°C(TA) | -40°C~125°C(TA) | -40°C~125°C(TA) | -40°C~85°C(TA) | -40°C~85°C(TA) | -40°C~125°C(TA) |
| Package | Tube | Tube | Tube | Tube | Tube | Tape & Reel (TR); Cut Tape (CT) |
Shared specifications
- Core processor
- AVR
- Core size
- 8-Bit
- EEPROM size
- 512 x 8
- Oscillator type
- Internal
- Peripherals
- Brown-out Detect/Reset, POR, PWM, WDT
- Program memory size
- 64KB (64K x 8)
- Program memory type
- FLASH
- RAM size
- 8K x 8
- Speed
- 24MHz
- Voltage - supply (Vcc (Vdd))
- 1.8V ~ 5.5V
Request a quote on any Microchip Technology AVR64DB Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Microchip Technology Microchip Technology AVR64DB Series variants differ?
- Microchip Technology AVR64DB Series part numbers differ by case, connectivity, data converters and mounting type. Use the selection guide above to pick by case.
- How many Microchip Technology Microchip Technology AVR64DB Series part numbers are listed?
- 14 Microchip Technology Microchip Technology AVR64DB Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Microchip Technology Microchip Technology AVR64DB Series?
- Request a quote (RFQ) for any Microchip Technology AVR64DB Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
