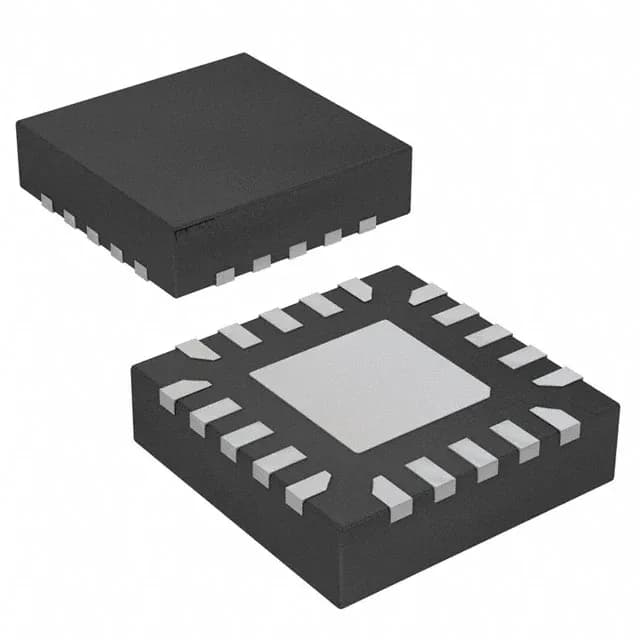

ATTINY13-20MU
Microchip Technology
2.7V ~ 5.5VTray-40°C~85°C(TA)
Ref. price$1.7700
Lead time on requestGet quote ›
Microchip Technology ATTINY Series
227 variants · Microchip Technology
About the Microchip Technology Microchip Technology ATTINY Series series
The Microchip Technology Microchip Technology ATTINY Series series groups 227 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common connectivity of -, core processor of AVR and core size of 8-Bit. Variants differ by case, mounting type and operating temperature, so you can match the exact case your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Microchip Technology ATTINY Series variants and discontinued ones from a single page.
Select a variant by
- Case
- 8-DIP (0.300\", 7.62mm) · 8-SOIC (0.154\", 3.90mm Width) · 8-SOIC (0.209\", 5.30mm Width) · 10-VFDFN Exposed Pad · 20-WFQFN Exposed Pad
- Mounting type
- Surface Mount · Through Hole
- Operating temperature
- -40°C~85°C(TA) · -40°C~105°C(TA) · -40°C~125°C(TA)
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tray · Tube
- Voltage - supply (Vcc (Vdd))
- 1.8V ~ 5.5V · 2.7V ~ 5.5V
Variant comparison
| Parameter | ATTINY13-20MU | ATTINY13-20PU | ATTINY13-20SQ | ATTINY13-20SSQR | ATTINY13-20SSU | ATTINY13-20SU |
|---|---|---|---|---|---|---|
| Case | 20-WFQFN Exposed Pad | 8-DIP (0.300\", 7.62mm) | 8-SOIC (0.209\", 5.30mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.209\", 5.30mm Width) |
| Mounting type | Surface Mount | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating temperature | -40°C~85°C(TA) | -40°C~85°C(TA) | -40°C~105°C(TA) | -40°C~105°C(TA) | -40°C~85°C(TA) | -40°C~85°C(TA) |
| Package | Tray | Tube | Tube | Tape & Reel (TR); Cut Tape (CT) | Tube | Tube |
| Voltage - supply (Vcc (Vdd)) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
Shared specifications
- Connectivity
- -
- Core processor
- AVR
- Core size
- 8-Bit
- Data converters
- A/D 4x10b
- EEPROM size
- 64 x 8
- Number of i (O)
- 6
- Oscillator type
- Internal
- Peripherals
- Brown-out Detect/Reset, POR, PWM, WDT
- Program memory size
- 1KB (512 x 16)
- Program memory type
- FLASH
- RAM size
- 64 x 8
- Speed
- 20MHz
Request a quote on any Microchip Technology ATTINY Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Microchip Technology Microchip Technology ATTINY Series variants differ?
- Microchip Technology ATTINY Series part numbers differ by case, mounting type, operating temperature and package. Use the selection guide above to pick by case.
- How many Microchip Technology Microchip Technology ATTINY Series part numbers are listed?
- 227 Microchip Technology Microchip Technology ATTINY Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Microchip Technology Microchip Technology ATTINY Series?
- Request a quote (RFQ) for any Microchip Technology ATTINY Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
