1N4148-1
Microchip Technology
Small Signal =< 200mA (Io), Any SpeedBulkStandard
Ref. price$0.7500
Lead time on requestGet quote ›
Microchip Technology 1N41 Series
8 variants · Microchip Technology
About the Microchip Technology Microchip Technology 1N41 Series series
The Microchip Technology Microchip Technology 1N41 Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common current - average rectified of 200mA, current - reverse leakage @ vr of 500 nA @ 75 V and package of Bulk. Variants differ by capacitance @ vr, f, case and mounting type, so you can match the exact capacitance @ vr, f your application requires using the selection guide below.
Select a variant by
- Capacitance @ vr, f
- - · 4pF @ 0V, 1MHz
- Case
- DO-204AH, DO-35, Axial · DO-213AA
- Mounting type
- Surface Mount · Through Hole
- Operating temperature - junction
- -65°C ~ 175°C · -65°C~175°C
Variant comparison

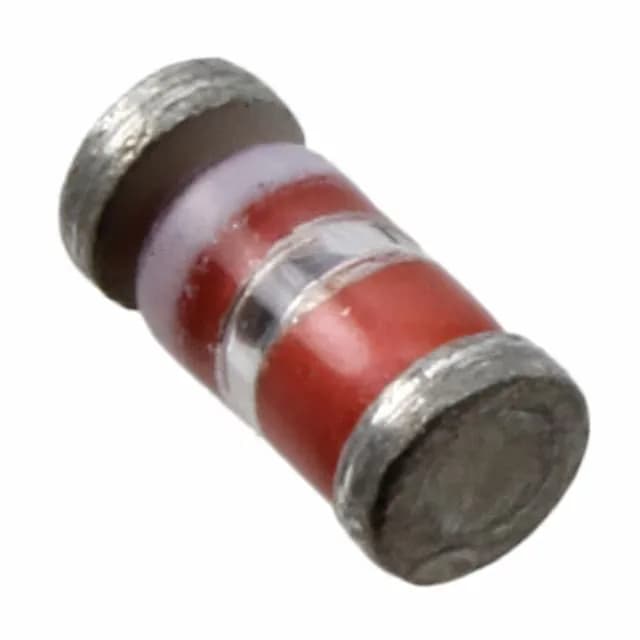

| Parameter | 1N4148-1 | 1N4148-1E3 | 1N4148UR-1 |
|---|---|---|---|
| Capacitance @ vr, f | - | 4pF @ 0V, 1MHz | - |
| Case | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-213AA |
| Mounting type | Through Hole | Through Hole | Surface Mount |
| Operating temperature - junction | -65°C~175°C | -65°C~175°C | -65°C ~ 175°C |
Shared specifications
- Current - average rectified
- 200mA
- Current - reverse leakage @ vr
- 500 nA @ 75 V
- Package
- Bulk
- Reverse recovery time
- 20 ns
- Speed
- Small Signal =< 200mA (Io), Any Speed
- Voltage - DC reverse (Vr)
- 75 V
- Voltage - forward (Vf) (Max) @ if
- 1.2 V @ 100 mA
Request a quote on any Microchip Technology 1N41 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Microchip Technology Microchip Technology 1N41 Series variants differ?
- Microchip Technology 1N41 Series part numbers differ by capacitance @ vr, f, case, mounting type and operating temperature - junction. Use the selection guide above to pick by capacitance @ vr, f.
- How many Microchip Technology Microchip Technology 1N41 Series part numbers are listed?
- 8 Microchip Technology Microchip Technology 1N41 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Microchip Technology Microchip Technology 1N41 Series?
- Request a quote (RFQ) for any Microchip Technology 1N41 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
