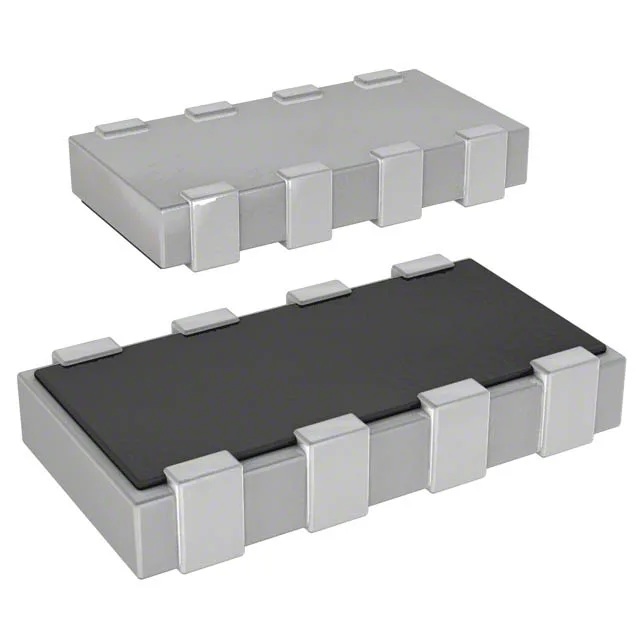

PESD1206Q-240
Littelfuse Inc.
-55°C ~ 125°C (TJ)Tape & Reel (TR) Cut Tape (CT)Zener
Ref. price$0.7500
Lead time on requestGet quote
Littelfuse Inc. PESD1206Q Series
2 variants · Littelfuse Inc.
About the Littelfuse Inc. PESD1206Q Series
The Littelfuse Inc. PESD1206Q Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of General Purpose, bidirectional channels of 4 and capacitance @ frequency of -. Variants differ by operating temperature, voltage - clamping (Max) @ ipp and voltage - reverse standoff, so you can match the exact operating temperature your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Littelfuse Inc. PESD1206Q Series variants and discontinued ones from a single page.
Select a variant by
- Operating temperature
- -55°C ~ 110°C (TJ) · -55°C ~ 125°C (TJ)
- Voltage - clamping (Max) @ ipp
- 45V · 75V
- Voltage - reverse standoff
- 14V · 24V
Shared specifications
- Applications
- General Purpose
- Bidirectional channels
- 4
- Capacitance @ frequency
- -
- Case
- 1206 (3216 Metric)
- Current - peak pulse (10/1000μs)
- -
- Mounting
- Surface Mount
- Package
- Tape & Reel (TR) Cut Tape (CT)
- Power - peak pulse
- -
- Power line protection
- No
- Type
- Zener
- Voltage - breakdown
- -
Variant comparison
| Parameter | PESD1206Q-140 | PESD1206Q-240 |
|---|---|---|
| Operating temperature | -55°C ~ 110°C (TJ) | -55°C ~ 125°C (TJ) |
| Voltage - clamping (Max) @ ipp | 75V | 45V |
| Voltage - reverse standoff | 14V | 24V |
Request a quote on any Littelfuse Inc. PESD1206Q Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
