About the Lite-On Inc. LTV817 Series

The Lite-On Inc. LTV817 Series series groups 11 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common channels of 1, current - DC forward (If) of 50 mA and current - output (Channel) of 50mA. Variants differ by case, current transfer ratio and mounting, so you can match the exact case your application requires using the selection guide below. All listed Lite-On Inc. LTV817 Series part numbers are active and orderable.

Select a variant by

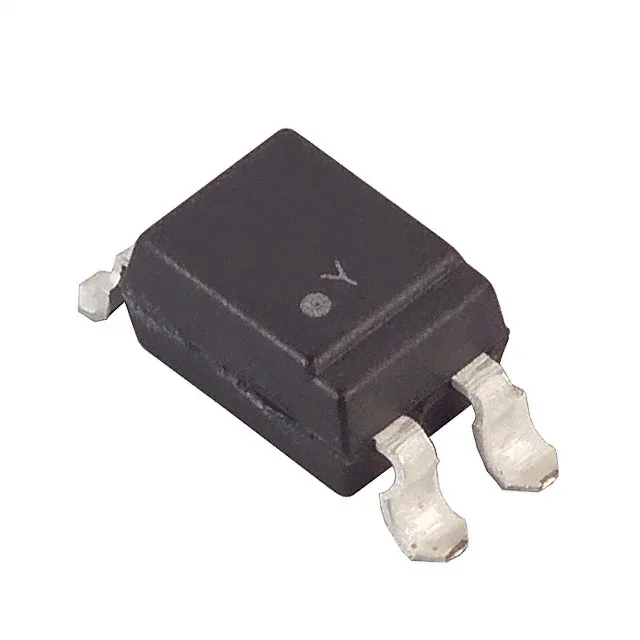

Case: 4-DIP (0.300\", 7.62mm) · 4-DIP (0.400\", 10.16mm) · 4-SMD, Gull Wing
Current transfer ratio: 160% @ 5mA · 260% @ 5mA · 400% @ 5mA · 600% @ 5mA
Mounting: Surface Mount · Through Hole
Operating temperature: -55°C ~ 110°C · -55°C~110°C
Package: Tape & Reel (TR) Cut Tape (CT) · Tube

Shared specifications

Channels: 1
Current - DC forward (If): 50 mA
Current - output (Channel): 50mA
Input type: DC
Output type: Transistor
Rise (Fall time): 4µs, 3µs
Turn on (Turn off time): -
Vce saturation: 200mV
Voltage - forward (Vf): 1.2V
Voltage - isolation: 5000Vrms
Voltage - output: 35V

Variant comparison

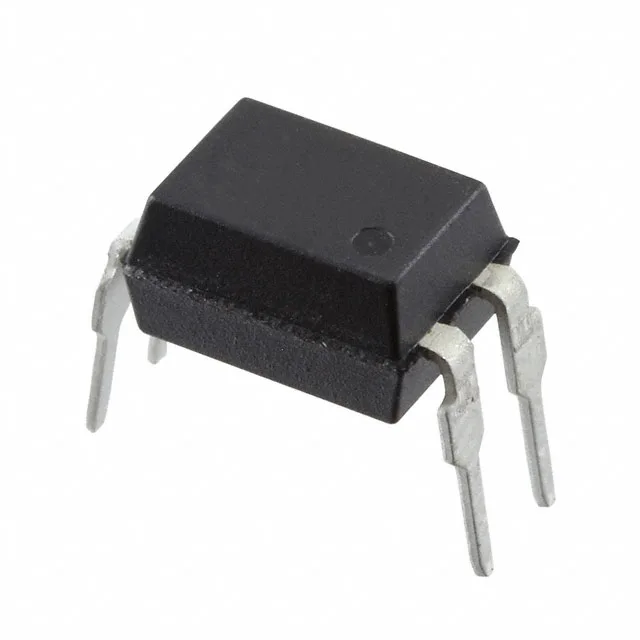

Parameter	LTV-817-A	LTV-817	LTV-817-B	LTV-817-C	LTV-817D	LTV-817M
Case	4-DIP (0.300\", 7.62mm)	4-DIP (0.300\", 7.62mm)	4-DIP (0.300\", 7.62mm)	4-DIP (0.300\", 7.62mm)	4-DIP (0.300\", 7.62mm)	4-DIP (0.400\", 10.16mm)
Current transfer ratio	160% @ 5mA	600% @ 5mA	260% @ 5mA	400% @ 5mA	600% @ 5mA	600% @ 5mA
Mounting	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Operating temperature	-55°C ~ 110°C	-55°C ~ 110°C	-55°C~110°C	-55°C ~ 110°C	-55°C ~ 110°C	-55°C~110°C
Package	Tube	Tube	Tube	Tube	Tube	Tube
