LTV-824S
Lite-On Inc.
Surface MountLTV-8x4Tube
Ref. price$0.8
Lead time on requestGet quote
Lite-On Inc. LTV8 Discrete Semiconductors Series
4 variants · Lite-On Inc.
About the Lite-On Inc. LTV8 Discrete Semiconductors Series
The Lite-On Inc. LTV8 Discrete Semiconductors Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - DC forward (If) of 50 mA, operating temperature of -30°C ~ 100°C and package of Tube. Variants differ by case, channels and current - output (Channel), so you can match the exact case your application requires using the selection guide below. All listed Lite-On Inc. LTV8 Discrete Semiconductors Series part numbers are active and orderable.
Select a variant by
- Case
- 8-DIP (0.300\", 7.62mm) · 8-SMD, Gull Wing · 16-DIP (0.300\", 7.62mm) · 16-SMD, Gull Wing
- Channels
- 2 · 4
- Current - output (Channel)
- 50mA · 80mA
- Current transfer ratio
- 300% @ 1mA · 7500% @ 1mA
- Input type
- AC, DC · DC
- Mounting
- Surface Mount · Through Hole
- Output type
- Darlington · Transistor
- Rise (Fall time)
- 4µs, 3µs · 60µs, 53µs
Shared specifications
- Current - DC forward (If)
- 50 mA
- Operating temperature
- -30°C ~ 100°C
- Package
- Tube
- Voltage - forward (Vf)
- 1.2V
- Voltage - isolation
- 5000Vrms
- Voltage - output
- 35V
Variant comparison

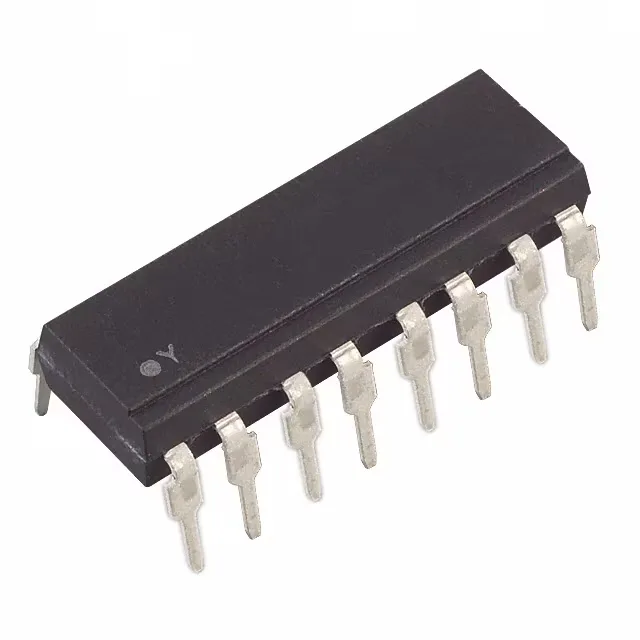

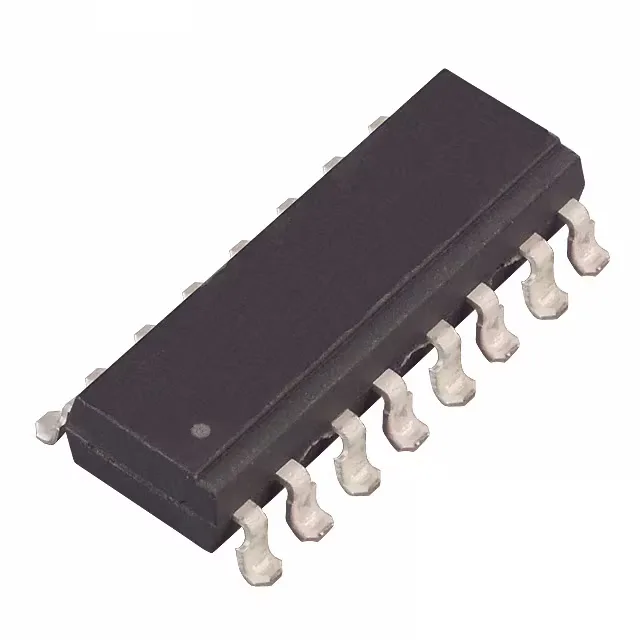

| Parameter | LTV-824S | LTV-825 | LTV-844 | LTV-844S |
|---|---|---|---|---|
| Case | 8-SMD, Gull Wing | 8-DIP (0.300\", 7.62mm) | 16-DIP (0.300\", 7.62mm) | 16-SMD, Gull Wing |
| Channels | 2 | 2 | 4 | 4 |
| Current - output (Channel) | 50mA | 80mA | 50mA | 50mA |
| Current transfer ratio | 300% @ 1mA | 7500% @ 1mA | 300% @ 1mA | 300% @ 1mA |
| Input type | AC, DC | DC | AC, DC | AC, DC |
| Mounting | Surface Mount | Through Hole | Through Hole | Surface Mount |
| Output type | Transistor | Darlington | Transistor | Transistor |
| Rise (Fall time) | 4µs, 3µs | 60µs, 53µs | 4µs, 3µs | 4µs, 3µs |
Request a quote on any Lite-On Inc. LTV8 Discrete Semiconductors Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
