LTV-824
Lite-On Inc.
Tube-30°C ~ 100°CLTV-8x4
Ref. price$0.78
Lead time on requestGet quote ›
Lite-On Inc. LTV8 Series
17 variants · Lite-On Inc.
About the Lite-On Inc. Lite-On Inc. LTV8 Series series
The Lite-On Inc. Lite-On Inc. LTV8 Series series groups 17 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common current - DC forward (If) of 50 mA, voltage - forward (Vf) of 1.2V and voltage - isolation of 5000Vrms. Variants differ by case, current - output (Channel) and current transfer ratio, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-DIP (0.300\", 7.62mm) · 8-SMD, Gull Wing · 16-DIP (0.300\", 7.62mm) · 16-SMD, Gull Wing
- Current - output (Channel)
- 50mA · 80mA
- Current transfer ratio
- 300% @ 1mA · 600% @ 5mA · 7500% @ 1mA
- Input type
- AC, DC · DC
- Mounting type
- Surface Mount · Through Hole
- Number of channels
- 2 · 4
- Operating temperature
- -30°C ~ 100°C · -30°C ~ 110°C
- Output type
- Darlington · Transistor
Variant comparison

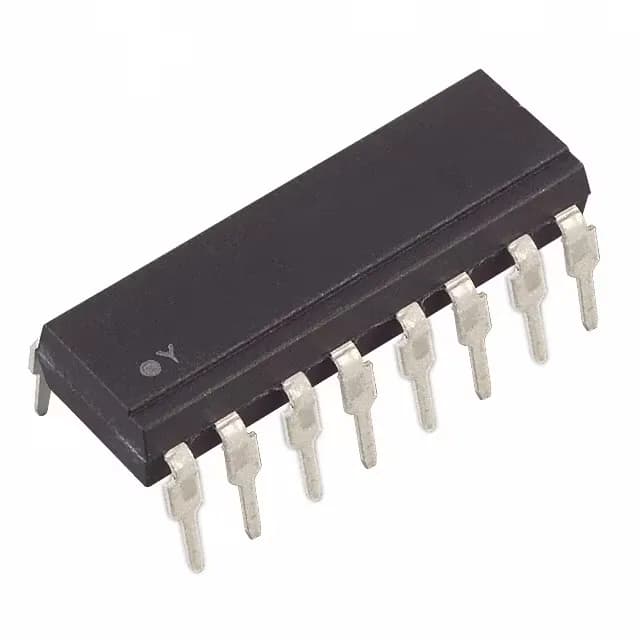

| Parameter | LTV-824 | LTV-845 | LTV-845S | LTV-827S-TA1 | LTV-846 | LTV-846S |
|---|---|---|---|---|---|---|
| Case | 8-DIP (0.300\", 7.62mm) | 16-DIP (0.300\", 7.62mm) | 16-SMD, Gull Wing | 8-SMD, Gull Wing | 16-DIP (0.300\", 7.62mm) | 16-SMD, Gull Wing |
| Current - output (Channel) | 50mA | 80mA | 80mA | 50mA | 50mA | 50mA |
| Current transfer ratio | 300% @ 1mA | 7500% @ 1mA | 7500% @ 1mA | 600% @ 5mA | 600% @ 5mA | 600% @ 5mA |
| Input type | AC, DC | DC | DC | DC | DC | DC |
| Mounting type | Through Hole | Through Hole | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Number of channels | 2 | 4 | 4 | 2 | 4 | 4 |
| Operating temperature | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 110°C | -30°C ~ 100°C | -30°C ~ 100°C |
| Output type | Transistor | Darlington | Darlington | Transistor | Transistor | Transistor |
Shared specifications
- Current - DC forward (If)
- 50 mA
- Voltage - forward (Vf)
- 1.2V
- Voltage - isolation
- 5000Vrms
Request a quote on any Lite-On Inc. LTV8 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Lite-On Inc. Lite-On Inc. LTV8 Series variants differ?
- Lite-On Inc. LTV8 Series part numbers differ by case, current - output (Channel), current transfer ratio and input type. Use the selection guide above to pick by case.
- How many Lite-On Inc. Lite-On Inc. LTV8 Series part numbers are listed?
- 17 Lite-On Inc. Lite-On Inc. LTV8 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Lite-On Inc. Lite-On Inc. LTV8 Series?
- Request a quote (RFQ) for any Lite-On Inc. LTV8 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
