Lattice Semiconductor Corporation LC4032 Series

106 variants · Lattice Semiconductor CorporationAll FPGA / CPLD & Programmable Logic →

About the Lattice Semiconductor Corporation LC4032 Series

The Lattice Semiconductor Corporation LC4032 Series series groups 106 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting of Surface Mount, number of logic elements (Blocks) of 2 and number of macrocells of 32. Variants differ by case, delay time tpd(1) max and number of i (O), so you can match the exact case your application requires using the selection guide below.

Select a variant by

Case: 44-TQFP · 48-LQFP · 56-LFBGA, CSPBGA
Delay time tpd(1) max: 2.5 ns · 3.5 ns · 4.4 ns · 5 ns · 7.5 ns
Number of i (O): 30 · 32
Operating temperature: -40°C ~ 105°C (TJ) · -40°C~105°C(TJ) · -40°C~130°C(TJ) · 0°C ~ 90°C (TJ) · 0°C~90°C(TJ)
Voltage supply - internal: 1.7V ~ 1.9V · 3V ~ 3.6V

Shared specifications

Mounting: Surface Mount
Number of logic elements (Blocks): 2
Number of macrocells: 32
Package: Tray
Programmable type: In System Programmable

Variant comparison

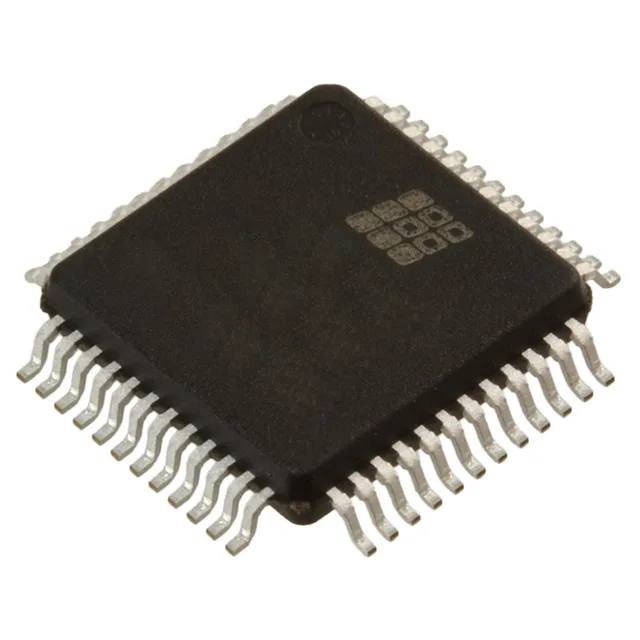

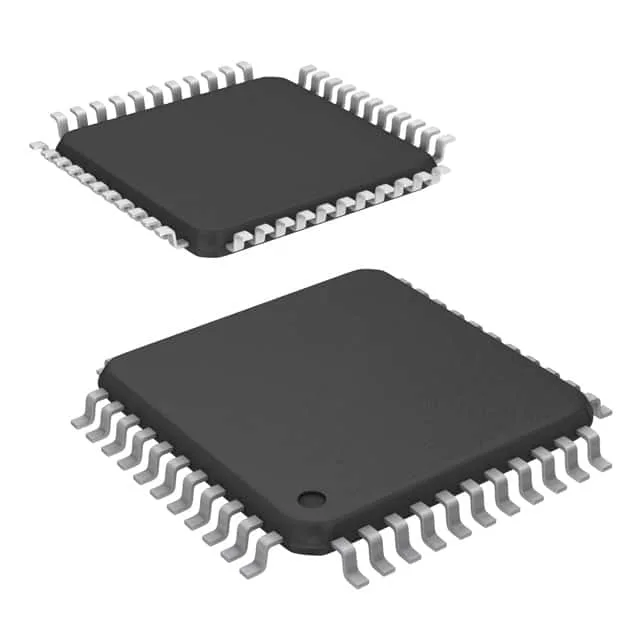

Parameter	LC4032V-75TN44I	LC4032V-25TN48C	LC4032V-5TN44C	LC4032V-75TN44C	LC4032V-75TN44E	LC4032ZC-35TN48C
Case	44-TQFP	48-LQFP	44-TQFP	44-TQFP	44-TQFP	48-LQFP
Delay time tpd(1) max	7.5 ns	2.5 ns	5 ns	7.5 ns	7.5 ns	3.5 ns
Number of i (O)	30	32	30	30	30	32
Operating temperature	-40°C ~ 105°C (TJ)	0°C~90°C(TJ)	0°C ~ 90°C (TJ)	0°C~90°C(TJ)	-40°C~130°C(TJ)	0°C ~ 90°C (TJ)
Voltage supply - internal	3V ~ 3.6V	3V ~ 3.6V	3V ~ 3.6V	3V ~ 3.6V	3V ~ 3.6V	1.7V ~ 1.9V

Request a quote on any Lattice Semiconductor Corporation LC4032 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
