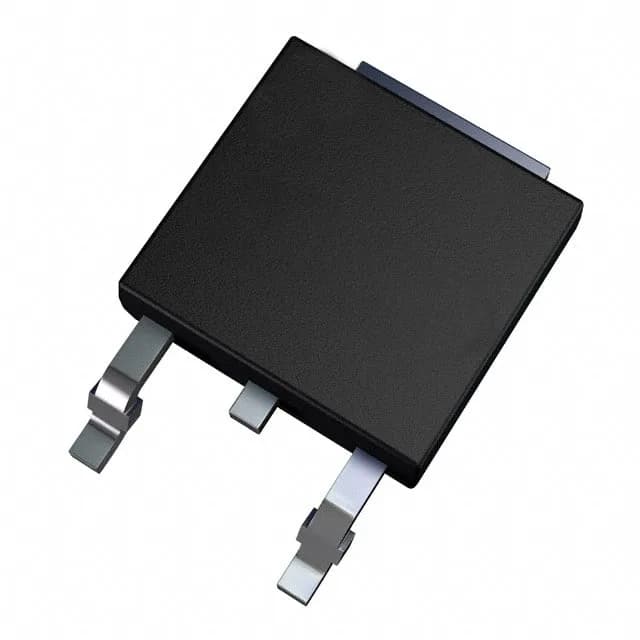

IXYS IXTY Series

5 variants · IXYS

About the IXYS IXYS IXTY Series series

The IXYS IXYS IXTY Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of TO-252-3, DPak (2 Leads + Tab), SC-63, current - continuous drain (Id) @ 25°C of 100mA (Tc) and drain to source voltage of 1000 V.

Shared specifications

Case
TO-252-3, DPak (2 Leads + Tab), SC-63
Current - continuous drain (Id) @ 25°C
100mA (Tc)
Drain to source voltage
1000 V
Drive voltage (Max rds on, min rds on)
10V
FET type
N-Channel
Gate charge (Qg) (Max) @ vgs
6.9 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds
54 pF @ 25 V
Mounting type
Surface Mount
Operating temperature
-55°C ~ 150°C (TJ)
Package
Tube
Power dissipation
25W (Tc)
Rds on (Max) @ id, vgs
80Ohm @ 100mA, 10V

Request a quote on any IXYS IXTY Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

What is the IXYS IXYS IXTY Series series?
A group of 5 related IXYS part numbers sharing a common case of TO-252-3, DPak (2 Leads + Tab), SC-63 and current - continuous drain (Id) @ 25°C of 100mA (Tc), each listed with specifications.
How many IXYS IXYS IXTY Series part numbers are listed?
5 IXYS IXYS IXTY Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for IXYS IXYS IXTY Series?
Request a quote (RFQ) for any IXYS IXTY Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.

All variants
