Infineon Technologies IRLH Series

6 variants · Infineon Technologies

About the Infineon Technologies Infineon Technologies IRLH Series series

The Infineon Technologies Infineon Technologies IRLH Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of 6-PowerVDFN, mounting type of Surface Mount and operating temperature of -55°C ~ 150°C (TJ). Variants differ by current - continuous drain (Id) @ 25°C, drain to source voltage and gate charge (Qg) (Max) @ vgs, so you can match the exact current - continuous drain (Id) @ 25°C your application requires using the selection guide below.

Select a variant by

Current - continuous drain (Id) @ 25°C
3.6A · 10A (Ta), 12A (Tc)
Drain to source voltage
20 V · 30V
Gate charge (Qg) (Max) @ vgs
2.8nC @ 4.5V · 14 nC @ 4.5 V
Input capacitance (Ciss) (Max) @ vds
270pF @ 25V · 1110 pF @ 10 V
Rds on (Max) @ id, vgs
11.7mOhm @ 8.5A, 4.5V · 63mOhm @ 3.4A, 4.5V

Variant comparison

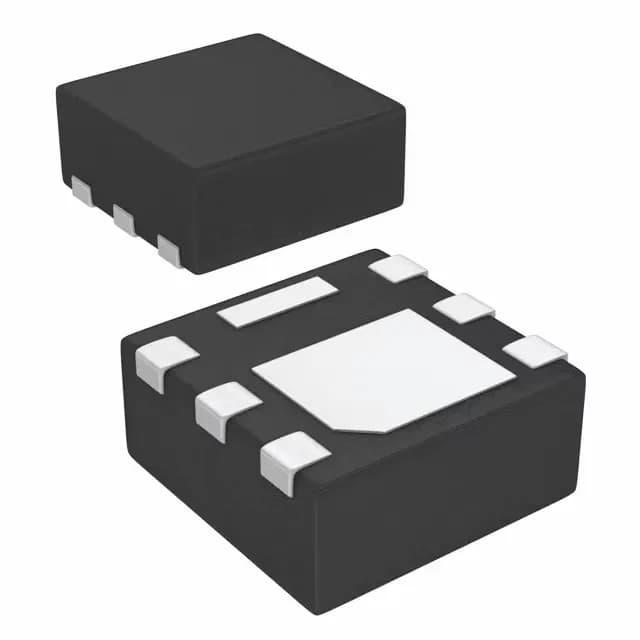

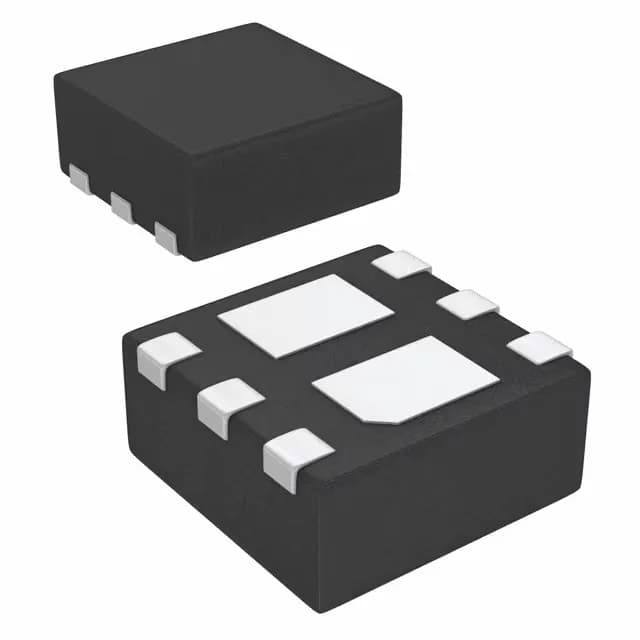

ParameterIRLHS6242TRPBFIRLHS6376TRPBF
Current - continuous drain (Id) @ 25°C10A (Ta), 12A (Tc)3.6A
Drain to source voltage20 V30V
Gate charge (Qg) (Max) @ vgs14 nC @ 4.5 V2.8nC @ 4.5V
Input capacitance (Ciss) (Max) @ vds1110 pF @ 10 V270pF @ 25V
Rds on (Max) @ id, vgs11.7mOhm @ 8.5A, 4.5V63mOhm @ 3.4A, 4.5V

Shared specifications

Case
6-PowerVDFN
Mounting type
Surface Mount
Operating temperature
-55°C ~ 150°C (TJ)
Package
Tape & Reel (TR); Cut Tape (CT)
Technology
MOSFET (Metal Oxide)
Vgs(th) (Max) @ id
1.1V @ 10µA

Request a quote on any Infineon Technologies IRLH Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the Infineon Technologies Infineon Technologies IRLH Series variants differ?
Infineon Technologies IRLH Series part numbers differ by current - continuous drain (Id) @ 25°C, drain to source voltage, gate charge (Qg) (Max) @ vgs and input capacitance (Ciss) (Max) @ vds. Use the selection guide above to pick by current - continuous drain (Id) @ 25°C.
How many Infineon Technologies Infineon Technologies IRLH Series part numbers are listed?
6 Infineon Technologies Infineon Technologies IRLH Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for Infineon Technologies Infineon Technologies IRLH Series?
Request a quote (RFQ) for any Infineon Technologies IRLH Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
