Infineon Technologies IRFP Series

19 variants · Infineon Technologies

About the Infineon Technologies Infineon Technologies IRFP Series series

The Infineon Technologies Infineon Technologies IRFP Series series groups 19 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of TO-247-3, drive voltage (Max rds on, min rds on) of 10V and FET feature of -. Variants differ by current - continuous drain (Id) @ 25°C, drain to source voltage and gate charge (Qg) (Max) @ vgs, so you can match the exact current - continuous drain (Id) @ 25°C your application requires using the selection guide below.

Select a variant by

Current - continuous drain (Id) @ 25°C: 50A (Tc) · 171A (Tc)
Drain to source voltage: 150 V · 200 V
Gate charge (Qg) (Max) @ vgs: 227 nC @ 10 V · 234 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds: 4057 pF @ 25 V · 10470 pF @ 50 V
Power dissipation: 300W (Tc) · 517W (Tc)
Rds on (Max) @ id, vgs: 5.9mOhm @ 103A, 10V · 40mOhm @ 28A, 10V
Vgs: ±20V · ±30V
Vgs(th) (Max) @ id: 4V @ 250µA · 5V @ 250µA

Variant comparison

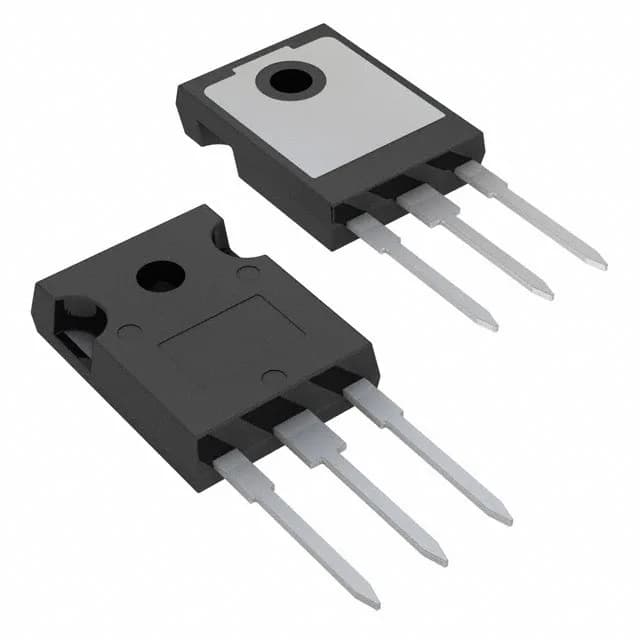

Parameter	IRFP260MPBF	IRFP4568PBF
Current - continuous drain (Id) @ 25°C	50A (Tc)	171A (Tc)
Drain to source voltage	200 V	150 V
Gate charge (Qg) (Max) @ vgs	234 nC @ 10 V	227 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds	4057 pF @ 25 V	10470 pF @ 50 V
Power dissipation	300W (Tc)	517W (Tc)
Rds on (Max) @ id, vgs	40mOhm @ 28A, 10V	5.9mOhm @ 103A, 10V
Vgs	±20V	±30V
Vgs(th) (Max) @ id	4V @ 250µA	5V @ 250µA

Shared specifications

Case: TO-247-3
Drive voltage (Max rds on, min rds on): 10V
FET feature: -
FET type: N-Channel
Mounting type: Through Hole
Operating temperature: -55°C ~ 175°C (TJ)
Package: Tube
Technology: MOSFET (Metal Oxide)

Request a quote on any Infineon Technologies IRFP Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
