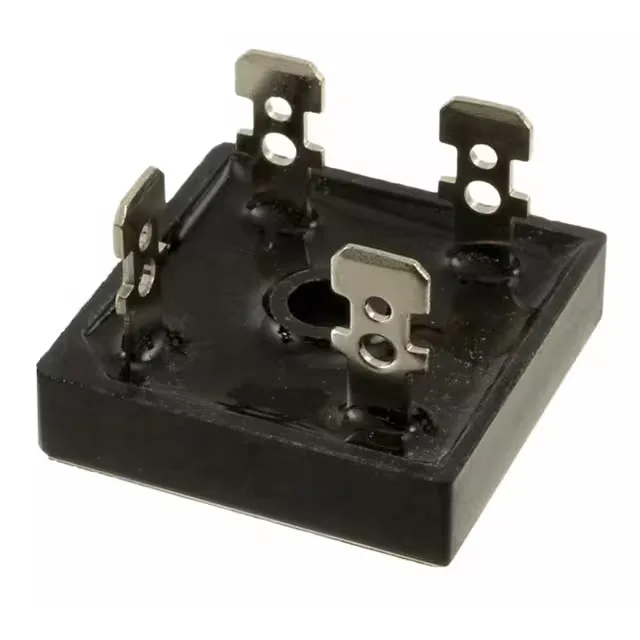

KBPC15005T
GeneSiC Semiconductor
QC TerminalBulk-55°C~150°C(TJ)
Ref. price$2.1795
Lead time on requestGet quote

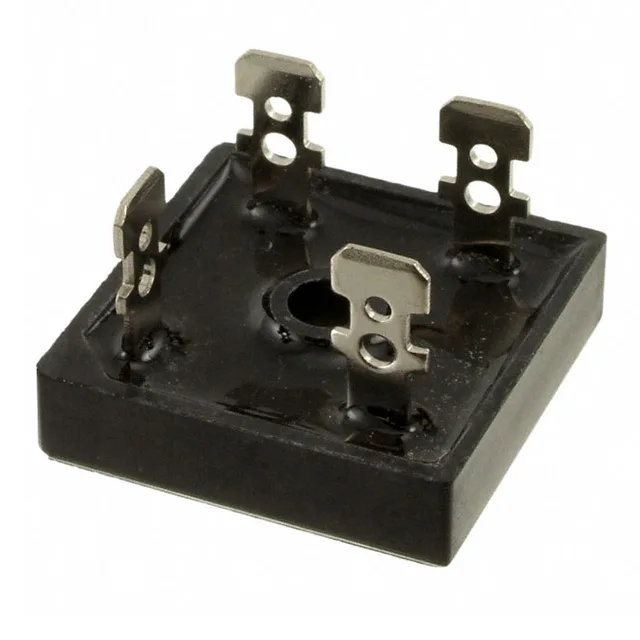

GeneSiC Semiconductor KBPC Series
47 variants · GeneSiC Semiconductor
About the GeneSiC Semiconductor KBPC Series
The GeneSiC Semiconductor KBPC Series series groups 47 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - average rectified of 15 A, diode type of Single Phase and package of Bulk. Variants differ by case, current - reverse leakage @ vr and mounting, so you can match the exact case your application requires using the selection guide below. All listed GeneSiC Semiconductor KBPC Series part numbers are active and orderable.
Select a variant by
- Case
- 4-Square, KBPC-T · 4-Square, KBPC-W
- Current - reverse leakage @ vr
- 5 µA @ 50 V · 5 µA @ 200 V · 5 µA @ 400 V · 5 µA @ 800 V · 5 µA @ 1000 V · 10 µA @ 600 V
- Mounting
- QC Terminal · Through Hole
- Operating temperature
- -55°C ~ 150°C (TJ) · -55°C~150°C(TJ)
- Voltage - peak reverse
- 1 kV · 50 V · 100 V · 200 V · 400 V · 600 V · 800 V
Shared specifications
- Current - average rectified
- 15 A
- Diode type
- Single Phase
- Package
- Bulk
- Technology
- Standard
- Voltage - forward (Vf) (Max) @ if
- 1.1 V @ 7.5 A
Variant comparison
| Parameter | KBPC15005T | KBPC15005W | KBPC15010T | KBPC1501T | KBPC1501W | KBPC1502T |
|---|---|---|---|---|---|---|
| Case | 4-Square, KBPC-T | 4-Square, KBPC-W | 4-Square, KBPC-T | 4-Square, KBPC-T | 4-Square, KBPC-W | 4-Square, KBPC-T |
| Current - reverse leakage @ vr | 5 µA @ 50 V | 5 µA @ 50 V | 5 µA @ 1000 V | 5 µA @ 1000 V | 5 µA @ 1000 V | 5 µA @ 200 V |
| Mounting | QC Terminal | Through Hole | QC Terminal | QC Terminal | Through Hole | QC Terminal |
| Operating temperature | -55°C~150°C(TJ) | -55°C ~ 150°C (TJ) | -55°C~150°C(TJ) | -55°C~150°C(TJ) | -55°C~150°C(TJ) | -55°C~150°C(TJ) |
| Voltage - peak reverse | 50 V | 50 V | 1 kV | 100 V | 100 V | 200 V |
Request a quote on any GeneSiC Semiconductor KBPC Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
