How do the EPC EPC EPC2 Series variants differ?

EPC EPC2 Series part numbers differ by current - continuous drain (Id) @ 25°C, drain to source voltage, gate charge (Qg) (Max) @ vgs and input capacitance (Ciss) (Max) @ vds. Use the selection guide above to pick by current - continuous drain (Id) @ 25°C.

How many EPC EPC EPC2 Series part numbers are listed?

12 EPC EPC EPC2 Series part numbers are listed, each with specifications and a datasheet where available.

EPC EPC2 Series

12 variants · EPC

About the EPC EPC EPC2 Series series

The EPC EPC EPC2 Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of Die, drive voltage (Max rds on, min rds on) of 5V and FET type of N-Channel. Variants differ by current - continuous drain (Id) @ 25°C, drain to source voltage and gate charge (Qg) (Max) @ vgs, so you can match the exact current - continuous drain (Id) @ 25°C your application requires using the selection guide below.

Select a variant by

Current - continuous drain (Id) @ 25°C: 1.7A (Ta) · 10A (Ta) · 18A (Ta) · 60A (Ta) · 90A (Ta)
Drain to source voltage: 80 V · 100 V
Gate charge (Qg) (Max) @ vgs: 0.83 nC @ 5 V · 2.2 nC @ 5 V · 4 nC @ 5 V · 16.3 nC @ 5 V · 19 nC @ 5 V
Input capacitance (Ciss) (Max) @ vds: 88 pF @ 50 V · 238 pF @ 40 V · 407 pF @ 50 V · 1940 pF @ 40 V · 2703 pF @ 50 V
Rds on (Max) @ id, vgs: 2.2mOhm @ 29A, 5V · 3.2mOhm @ 25A, 5V · 13.5mOhm @ 11A, 5V · 20mOhm @ 6A, 5V · 80mOhm @ 1A, 5V
Vgs: +5.75V, -4V · +6V, -4V
Vgs(th) (Max) @ id: 2.5V @ 2mA · 2.5V @ 3mA · 2.5V @ 7mA · 2.5V @ 13mA · 2.5V @ 600µA

Variant comparison

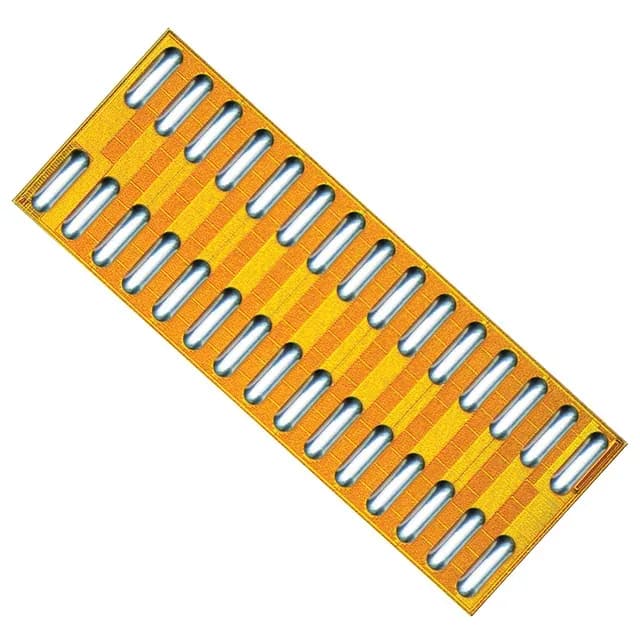

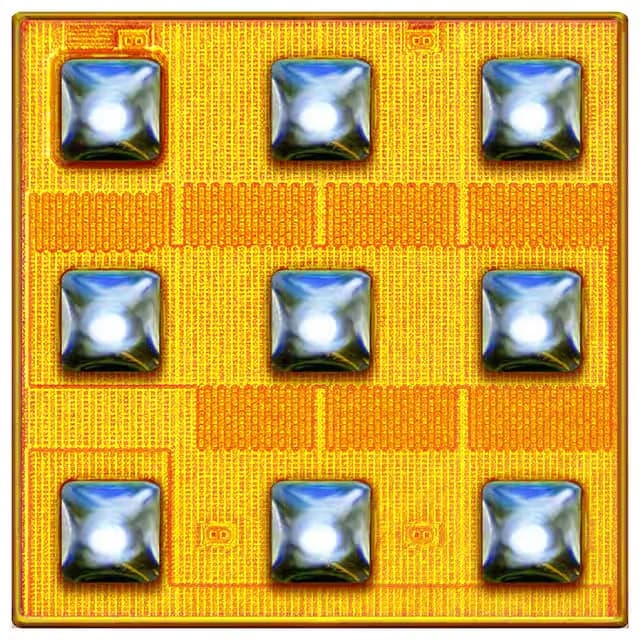

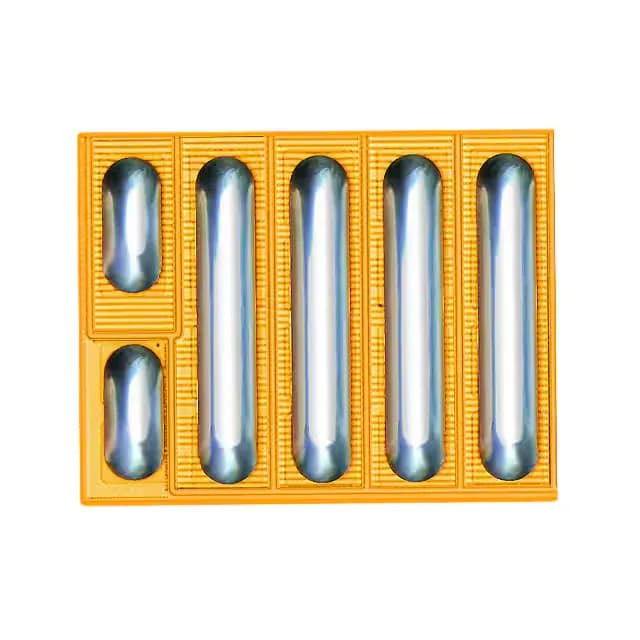

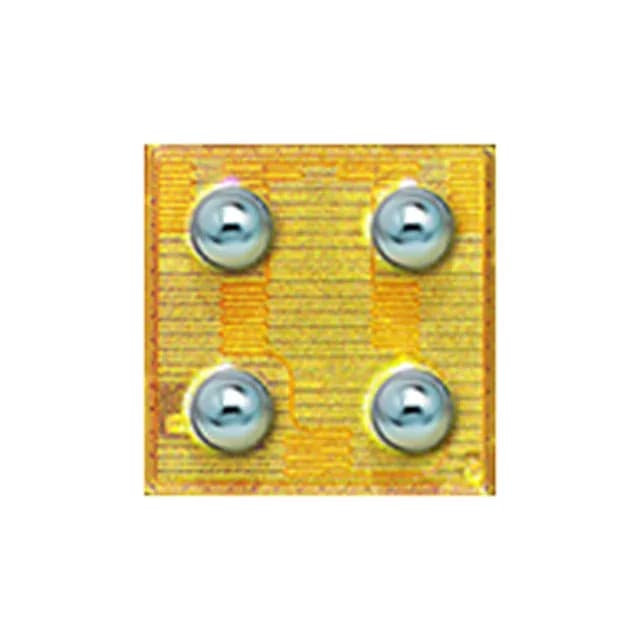

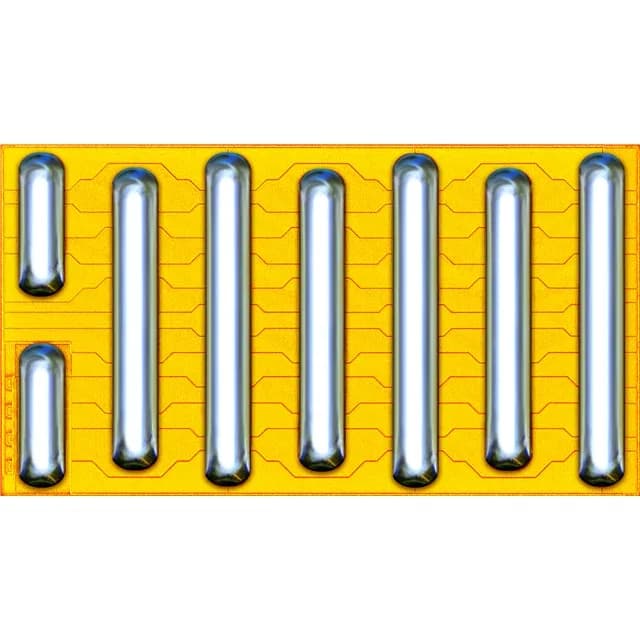

Parameter	EPC2203	EPC2206	EPC2212	EPC2214	EPC2218
Current - continuous drain (Id) @ 25°C	1.7A (Ta)	90A (Ta)	18A (Ta)	10A (Ta)	60A (Ta)
Drain to source voltage	80 V	80 V	100 V	80 V	100 V
Gate charge (Qg) (Max) @ vgs	0.83 nC @ 5 V	19 nC @ 5 V	4 nC @ 5 V	2.2 nC @ 5 V	16.3 nC @ 5 V
Input capacitance (Ciss) (Max) @ vds	88 pF @ 50 V	1940 pF @ 40 V	407 pF @ 50 V	238 pF @ 40 V	2703 pF @ 50 V
Rds on (Max) @ id, vgs	80mOhm @ 1A, 5V	2.2mOhm @ 29A, 5V	13.5mOhm @ 11A, 5V	20mOhm @ 6A, 5V	3.2mOhm @ 25A, 5V
Vgs	+5.75V, -4V	+6V, -4V	+6V, -4V	+6V, -4V	+6V, -4V
Vgs(th) (Max) @ id	2.5V @ 600µA	2.5V @ 13mA	2.5V @ 3mA	2.5V @ 2mA	2.5V @ 7mA

Shared specifications

Case: Die
Drive voltage (Max rds on, min rds on): 5V
FET type: N-Channel
Mounting type: Surface Mount
Operating temperature: -40°C ~ 150°C (TJ)
Package: Tape & Reel (TR); Cut Tape (CT)
Technology: GaNFET (Gallium Nitride)
