ECS-80-8-30Q-ES-TR
ECS Inc.
Surface MountECX-53QTape & Reel (TR) Cut Tape (CT)
Ref. price$0.8700
Lead time on requestGet quote
ECS Inc. ECS8 Series
194 variants · ECS Inc.
About the ECS Inc. ECS8 Series
The ECS Inc. ECS8 Series series groups 194 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by case, frequency and frequency stability, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 2-SMD, No Lead · 4-SOJ, 5.08mm pitch · HC-49/US
- Frequency
- 2.4576 MHz · 3.579545 MHz · 4 MHz · 4.096 MHz · 5 MHz · 8 MHz · 8.192 MHz · 8.5 MHz · 9.8304 MHz · 14.31818 MHz · 50 MHz
- Frequency stability
- ±30ppm · ±50ppm · ±200ppm
- Height - seated
- 0.043\" (1.10mm) · 0.126\" (3.20mm) · 0.138\" (3.50mm) · 0.185\" (4.70mm)
- Mounting
- Surface Mount · Through Hole
- Operating temperature
- -40°C ~ 85°C · -40°C ~ 125°C · -40°C~85°C · -10°C ~ 70°C
- Package
- Bulk · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Ratings
- - · AEC-Q200
Variant comparison
| Parameter | ECS-80-8-30Q-ES-TR | ECS-81.92-12-30Q-EN-TR | ECS-81.92-18-5PLX-AGN-TR | ECS-85-S-4X | ECS-8FA3X-098.3-TR | ECS-8FA3X-143-TR |
|---|---|---|---|---|---|---|

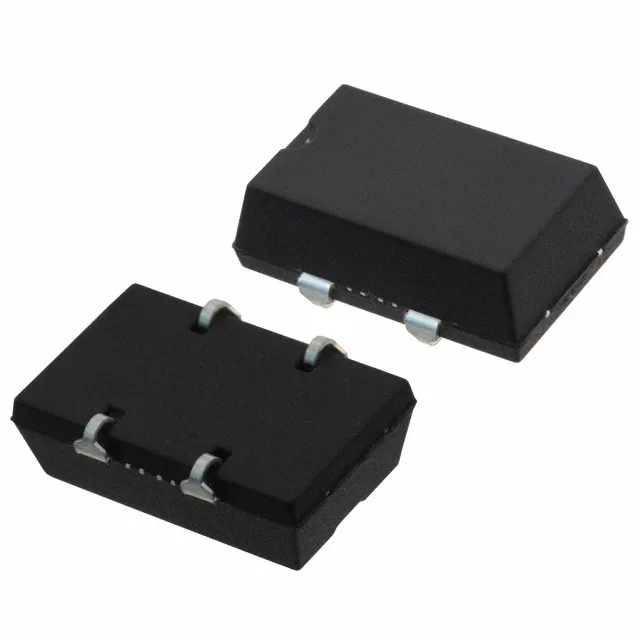

| Case | 2-SMD, No Lead | 2-SMD, No Lead | HC-49/US | HC-49/US | 4-SOJ, 5.08mm pitch | 4-SOJ, 5.08mm pitch |
| Frequency | 8 MHz | 8.192 MHz | 8.192 MHz | 8.5 MHz | 9.8304 MHz | 14.31818 MHz |
| Frequency stability | ±50ppm | ±50ppm | ±30ppm | ±50ppm | ±200ppm | ±200ppm |
| Height - seated | 0.043\" (1.10mm) | 0.043\" (1.10mm) | 0.126\" (3.20mm) | 0.138\" (3.50mm) | 0.185\" (4.70mm) | 0.185\" (4.70mm) |
| Mounting | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount | Surface Mount |
| Operating temperature | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -10°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Bulk | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
| Ratings | AEC-Q200 | AEC-Q200 | - | - | - | - |
Request a quote on any ECS Inc. ECS8 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
