ECS-160-18-33Q-DS
ECS Inc.
Surface MountECX-33Q-40°C~125°C
Ref. price$1.0000
Lead time on requestGet quote
ECS Inc. ECS1 Series
1046 variants · ECS Inc.
About the ECS Inc. ECS1 Series
The ECS Inc. ECS1 Series series groups 1046 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by case, frequency and frequency stability, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 2-SMD, No Lead · 4-SMD, No Lead · 14-DIP, 4 Leads (Full Size, Metal Can) · HC-49/US
- Frequency
- 1.8432 MHz · 2 MHz · 3.6864 MHz · 10 MHz · 11.05 MHz · 12 MHz · 16 MHz
- Frequency stability
- ±10ppm · ±30ppm · ±50ppm · ±100ppm
- Height - seated
- 0.031\" (0.80mm) · 0.033\" (0.85mm) · 0.051\" (1.30mm) · 0.055\" (1.40mm) · 0.138\" (3.50mm) · 0.200\" (5.08mm)
- Mounting
- Surface Mount · Through Hole
- Operating temperature
- -55°C ~ 125°C · -40°C ~ 125°C · -40°C~85°C · -40°C~125°C · -20°C ~ 70°C · -20°C~70°C · 0°C ~ 70°C
- Package
- Bulk · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Ratings
- - · AEC-Q200
Variant comparison
| Parameter | ECS-160-18-33Q-DS | ECS-100-12-30-AEM-TR | ECS-100-18-4X-CKM | ECS-100-20-4X-DU | ECS-100A-020 | ECS-100AX-018 |
|---|---|---|---|---|---|---|

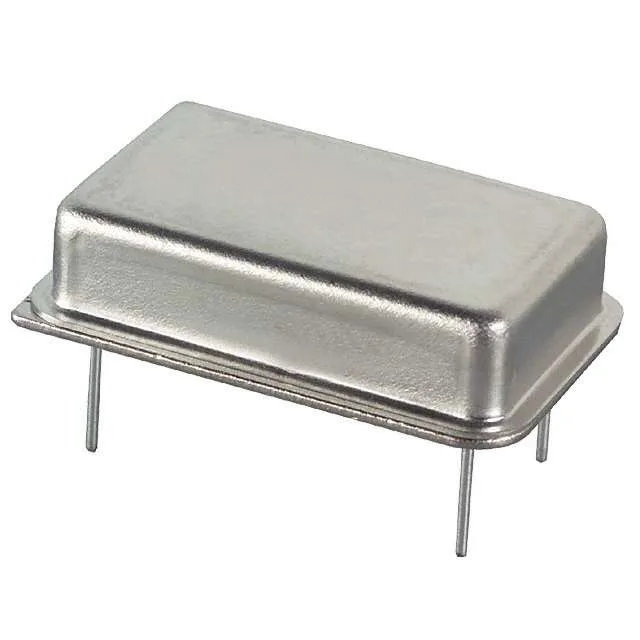

| Case | 4-SMD, No Lead | 2-SMD, No Lead | HC-49/US | HC-49/US | 14-DIP, 4 Leads (Full Size, Metal Can) | 14-DIP, 4 Leads (Full Size, Metal Can) |
| Frequency | 16 MHz | 10 MHz | 10 MHz | 10 MHz | 2 MHz | 1.8432 MHz |
| Frequency stability | ±100ppm | ±50ppm | ±10ppm | ±100ppm | ±100ppm | ±100ppm |
| Height - seated | 0.031\" (0.80mm) | 0.055\" (1.40mm) | 0.138\" (3.50mm) | 0.138\" (3.50mm) | 0.200\" (5.08mm) | 0.200\" (5.08mm) |
| Mounting | Surface Mount | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole |
| Operating temperature | -40°C~125°C | -20°C ~ 70°C | -20°C~70°C | -55°C ~ 125°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Bulk | Bulk | Bulk | Bulk |
| Ratings | AEC-Q200 | - | - | - | - | - |
Request a quote on any ECS Inc. ECS1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
