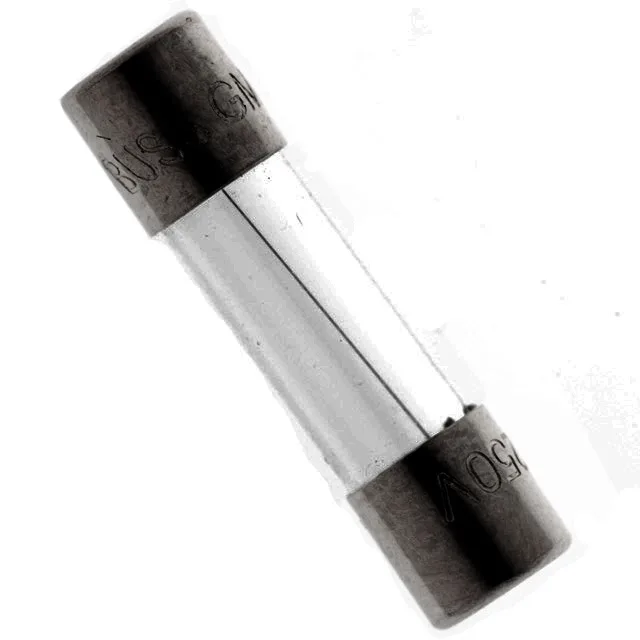

GMA-300-R
Eaton - Electronics Division
BulkGMARequires Holder
Ref. price$3.8120
Lead time on requestGet quote
Eaton - Electronics Division GMA3 Series
5 variants · Eaton - Electronics Division
About the Eaton - Electronics Division GMA3 Series
The Eaton - Electronics Division GMA3 Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common approval agency of CSA, PSE, UL, breaking capacity @ rated voltage of 35A and case of 5mm x 20mm. Variants differ by current rating and DC cold resistance, so you can match the exact current rating your application requires using the selection guide below.
Select a variant by
- Current rating
- 300 mA · 315 mA
- DC cold resistance
- 0.839 Ohms · 0.906 Ohms
Shared specifications
- Approval agency
- CSA, PSE, UL
- Breaking capacity @ rated voltage
- 35A
- Case
- 5mm x 20mm
- Color
- -
- Fuse type
- Cartridge, Glass
- Melting i2t
- 0.019
- Mounting
- Requires Holder
- Operating temperature
- -
- Package
- Bulk
- Response time
- Fast Blow
- Size (Dimension)
- 0.205\" Dia x 0.787\" L (5.20mm x 20.00mm)
- Voltage rating - AC
- 250 V
Variant comparison
| Parameter | GMA-300-R | GMA-315-R |
|---|---|---|
| Current rating | 300 mA | 315 mA |
| DC cold resistance | 0.906 Ohms | 0.839 Ohms |
Request a quote on any Eaton - Electronics Division GMA3 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
