SD103AW-7-F
Diodes Incorporated
Fast Recovery =< 500ns, > 200mA (Io)Tape & Reel (TR); Cut Tape (CT)Schottky
Ref. price$0.41
Lead time on requestGet quote ›
Diodes Incorporated SD10 Series
8 variants · Diodes Incorporated
About the Diodes Incorporated Diodes Incorporated SD10 Series series
The Diodes Incorporated Diodes Incorporated SD10 Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common capacitance @ vr, f of 28pF @ 0V, 1MHz, current - average rectified of 350mA and current - reverse leakage @ vr of 5 µA @ 30 V. Variants differ by case, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- SC-76, SOD-323 · SOD-123
Variant comparison
| Parameter | SD103AW-7-F | SD103AWS-7-F |
|---|---|---|

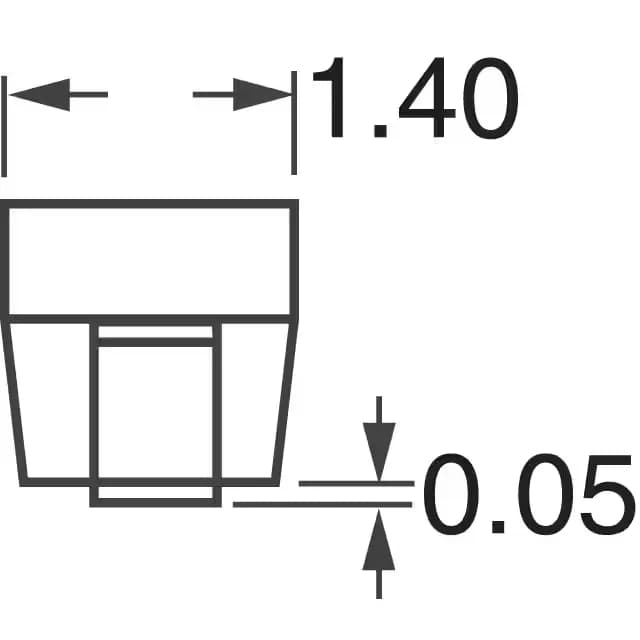

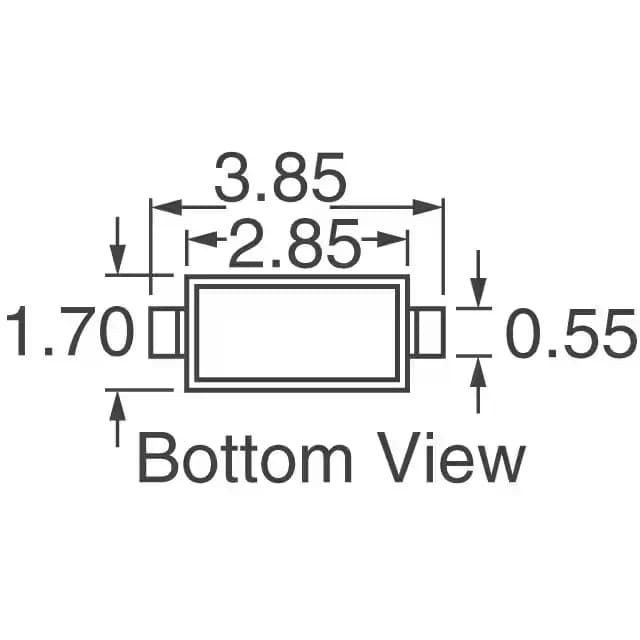

| Case | SOD-123 | SC-76, SOD-323 |
Shared specifications
- Capacitance @ vr, f
- 28pF @ 0V, 1MHz
- Current - average rectified
- 350mA
- Current - reverse leakage @ vr
- 5 µA @ 30 V
- Mounting type
- Surface Mount
- Operating temperature - junction
- -65°C ~ 125°C
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Reverse recovery time
- 10 ns
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Voltage - DC reverse (Vr)
- 40 V
- Voltage - forward (Vf) (Max) @ if
- 600 mV @ 200 mA
Request a quote on any Diodes Incorporated SD10 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Diodes Incorporated Diodes Incorporated SD10 Series variants differ?
- Diodes Incorporated SD10 Series part numbers differ by case. Use the selection guide above to pick by case.
- How many Diodes Incorporated Diodes Incorporated SD10 Series part numbers are listed?
- 8 Diodes Incorporated Diodes Incorporated SD10 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated SD10 Series?
- Request a quote (RFQ) for any Diodes Incorporated SD10 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
