PAM8403DR
Diodes Incorporated
2.8V ~ 5.5VTape & Reel (TR); Cut Tape (CT)-40°C~85°C(TA)
Ref. price$0.9200
Lead time on requestGet quote ›
Diodes Incorporated PAM8 Series
28 variants · Diodes Incorporated
About the Diodes Incorporated Diodes Incorporated PAM8 Series series
The Diodes Incorporated Diodes Incorporated PAM8 Series series groups 28 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common features of Depop, Short-Circuit and Thermal Protection and mounting type of Surface Mount. Variants differ by case, max output power x channels @ load and operating temperature, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-SOIC (0.154\", 3.90mm Width) · 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) · 8-WDFN Exposed Pad · 16-SOIC (0.154\", 3.90mm Width) · 16-SOIC (0.154\", 3.90mm Width) Exposed Pad
- Max output power x channels @ load
- 2.5W x 1 @ 4Ohm · 3W x 1 @ 4Ohm · 5W x 2 @ 2Ohm
- Operating temperature
- -40°C ~ 85°C (TA) · -40°C~85°C(TA)
- Output type
- 1-Channel (Mono) · 2-Channel (Stereo)
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Type
- Class D · Class D, Class AB
- Voltage
- 2V ~ 5.5V · 2.5V ~ 5.5V · 2.8V ~ 5.5V · 2.8V ~ 6V
Variant comparison
| Parameter | PAM8403DR | PAM8403DR-H | PAM8406DR | PAM8406ER | PAM8302AADCR | PAM8302AASCR |
|---|---|---|---|---|---|---|

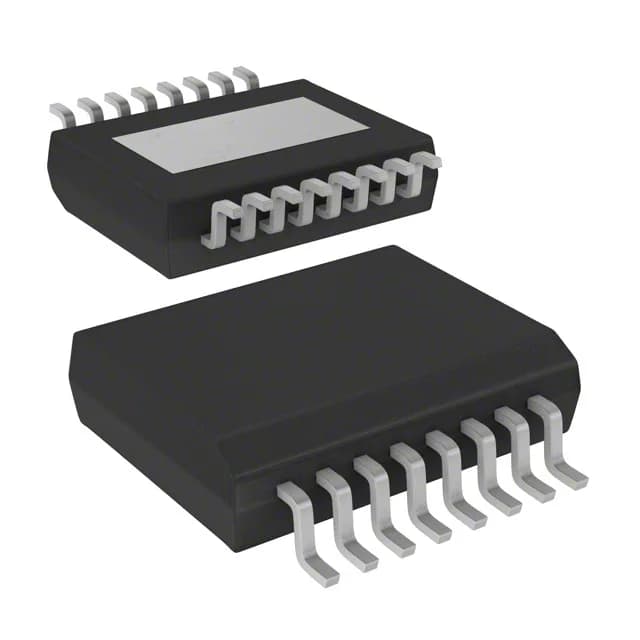

| Case | 16-SOIC (0.154\", 3.90mm Width) | 16-SOIC (0.154\", 3.90mm Width) | 16-SOIC (0.154\", 3.90mm Width) | 16-SOIC (0.154\", 3.90mm Width) Exposed Pad | 8-SOIC (0.154\", 3.90mm Width) | 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) |
| Max output power x channels @ load | 3W x 1 @ 4Ohm | 3W x 1 @ 4Ohm | 5W x 2 @ 2Ohm | 5W x 2 @ 2Ohm | 2.5W x 1 @ 4Ohm | 2.5W x 1 @ 4Ohm |
| Operating temperature | -40°C~85°C(TA) | -40°C~85°C(TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Output type | 2-Channel (Stereo) | 2-Channel (Stereo) | 2-Channel (Stereo) | 2-Channel (Stereo) | 1-Channel (Mono) | 1-Channel (Mono) |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Type | Class D | Class D | Class D, Class AB | Class D, Class AB | Class D | Class D |
| Voltage | 2.8V ~ 5.5V | 2.8V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
Shared specifications
- Features
- Depop, Short-Circuit and Thermal Protection
- Mounting type
- Surface Mount
Request a quote on any Diodes Incorporated PAM8 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Diodes Incorporated Diodes Incorporated PAM8 Series variants differ?
- Diodes Incorporated PAM8 Series part numbers differ by case, max output power x channels @ load, operating temperature and output type. Use the selection guide above to pick by case.
- How many Diodes Incorporated Diodes Incorporated PAM8 Series part numbers are listed?
- 28 Diodes Incorporated Diodes Incorporated PAM8 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated PAM8 Series?
- Request a quote (RFQ) for any Diodes Incorporated PAM8 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
