Diodes Incorporated MMBT Series

15 variants · Diodes Incorporated

About the Diodes Incorporated Diodes Incorporated MMBT Series series

The Diodes Incorporated Diodes Incorporated MMBT Series series groups 15 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting type of Surface Mount and operating temperature of -55°C ~ 150°C (TJ). Variants differ by case, current - collector (Ic) and DC current gain (hFE) (Min) @ ic, vce, so you can match the exact case your application requires using the selection guide below.

Select a variant by

Case: 3-UFDFN · 3-XFDFN · SOT-523 · TO-236-3, SC-59, SOT-23-3
Current - collector (Ic): 200 mA · 500 mA · 600 mA
DC current gain (hFE) (Min) @ ic, vce: 40 @ 30mA, 10V · 60 @ 10mA, 5V · 100 @ 10mA, 1V · 100 @ 10mA, 10V · 100 @ 100mA, 1V · 100 @ 150mA, 2V · 100 @ 150mA, 10V
Frequency: 50MHz · 100MHz · 200MHz · 250MHz · 280MHz · 300MHz
Package: Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Power - max: 150 mW · 250 mW · 300 mW · 350 mW · 435 mW
Transistor type: NPN · PNP
Vce saturation (Max) @ ib, ic: 1.6V @ 50mA, 500mA · 250mV @ 10mA, 100mA · 300mV @ 5mA, 50mA · 400mV @ 5mA, 50mA · 500mV @ 2mA, 20mA · 500mV @ 5mA, 50mA · 750mV @ 50mA, 500mA

Variant comparison

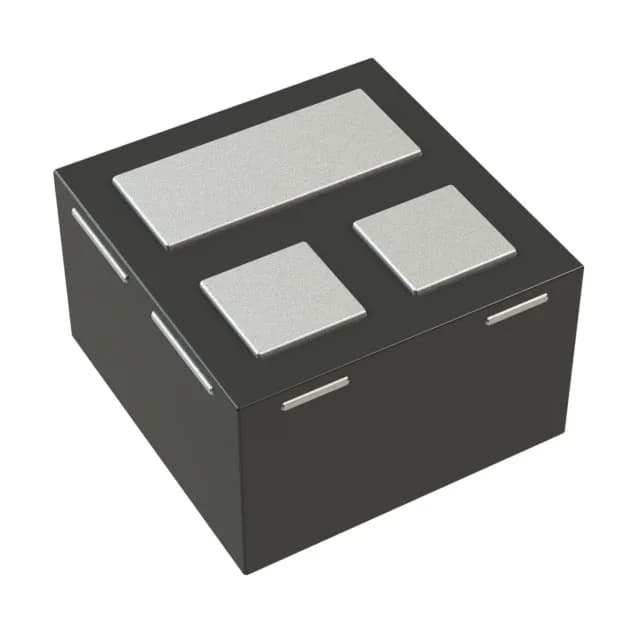

Parameter	MMBT2907AT-7-F	MMBT3904FZ-7B	MMBT3906FA-7B	MMBT3906FZ-7B	MMBT3906LP-7	MMBT3906T-7-F
Case	SOT-523	3-XFDFN	3-XFDFN	3-XFDFN	3-UFDFN	SOT-523
Current - collector (Ic)	600 mA	200 mA	200 mA	200 mA	200 mA	200 mA
DC current gain (hFE) (Min) @ ic, vce	100 @ 150mA, 10V	100 @ 10mA, 10V	100 @ 10mA, 1V	100 @ 10mA, 1V	100 @ 10mA, 1V	100 @ 10mA, 1V
Frequency	200MHz	300MHz	300MHz	280MHz	300MHz	250MHz
Package	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)
Power - max	150 mW	435 mW	435 mW	435 mW	250 mW	150 mW
Transistor type	PNP	NPN	PNP	PNP	PNP	PNP
Vce saturation (Max) @ ib, ic	1.6V @ 50mA, 500mA	300mV @ 5mA, 50mA	400mV @ 5mA, 50mA	400mV @ 5mA, 50mA	400mV @ 5mA, 50mA	400mV @ 5mA, 50mA

Shared specifications

Mounting type: Surface Mount
Operating temperature: -55°C ~ 150°C (TJ)

Request a quote on any Diodes Incorporated MMBT Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
