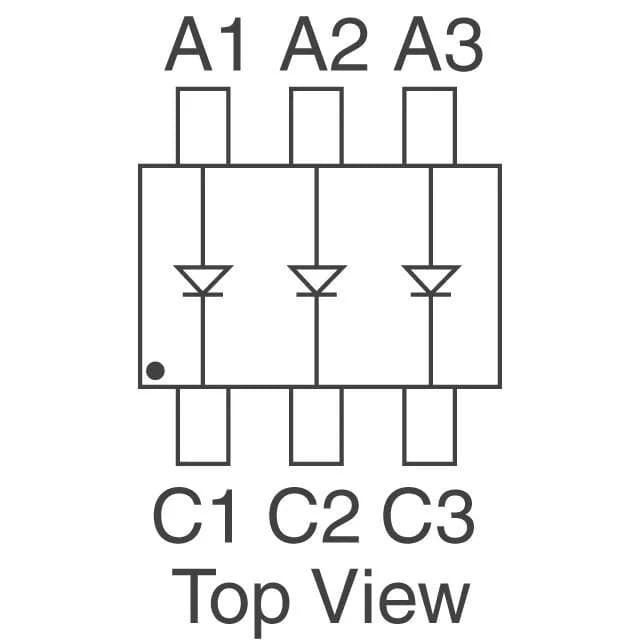

MMBD4448HTM-7-F
Diodes Incorporated
Fast Recovery =< 500ns, > 200mA (Io)Tape & Reel (TR); Cut Tape (CT)Standard
Ref. price$0.44
Lead time on requestGet quote ›
Diodes Incorporated MMBD Series
5 variants · Diodes Incorporated
About the Diodes Incorporated Diodes Incorporated MMBD Series series
The Diodes Incorporated Diodes Incorporated MMBD Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting type of Surface Mount, operating temperature - junction of -65°C ~ 150°C and package of Tape & Reel (TR); Cut Tape (CT). Variants differ by case, current - average rectified (Io) (per diode) and current - reverse leakage @ vr, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- SOT-23-6 · SOT-523 · TO-236-3, SC-59, SOT-23-3
- Current - average rectified (Io) (per diode)
- 250mA · 300mA (DC)
- Current - reverse leakage @ vr
- 3 µA @ 100 V · 100 nA @ 70 V
- Diode configuration
- 1 Pair Series Connection · 3 Independent
- Voltage - DC reverse (Vr)
- 80 V · 100 V
Variant comparison
| Parameter | MMBD4448HTM-7-F | MMBD4448HTS-7-F | MMBD7000HS-7-F |
|---|---|---|---|
| Case | SOT-23-6 | SOT-523 | TO-236-3, SC-59, SOT-23-3 |
| Current - average rectified (Io) (per diode) | 250mA | 250mA | 300mA (DC) |
| Current - reverse leakage @ vr | 100 nA @ 70 V | 100 nA @ 70 V | 3 µA @ 100 V |
| Diode configuration | 3 Independent | 1 Pair Series Connection | 1 Pair Series Connection |
| Voltage - DC reverse (Vr) | 80 V | 80 V | 100 V |
Shared specifications
- Mounting type
- Surface Mount
- Operating temperature - junction
- -65°C ~ 150°C
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Reverse recovery time
- 4 ns
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Voltage - forward (Vf) (Max) @ if
- 1.25 V @ 150 mA
Request a quote on any Diodes Incorporated MMBD Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Diodes Incorporated Diodes Incorporated MMBD Series variants differ?
- Diodes Incorporated MMBD Series part numbers differ by case, current - average rectified (Io) (per diode), current - reverse leakage @ vr and diode configuration. Use the selection guide above to pick by case.
- How many Diodes Incorporated Diodes Incorporated MMBD Series part numbers are listed?
- 5 Diodes Incorporated Diodes Incorporated MMBD Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated MMBD Series?
- Request a quote (RFQ) for any Diodes Incorporated MMBD Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
