FMMT493ATA
Diodes Incorporated
150MHzTape & Reel (TR); Cut Tape (CT)500 mW
Ref. price$0.44
Lead time on requestGet quote ›
Diodes Incorporated FMMT Series
40 variants · Diodes Incorporated
About the Diodes Incorporated Diodes Incorporated FMMT Series series
The Diodes Incorporated Diodes Incorporated FMMT Series series groups 40 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of TO-236-3, SC-59, SOT-23-3, mounting type of Surface Mount and operating temperature of -55°C ~ 150°C (TJ). Variants differ by current - collector (Ic), current - collector cutoff and DC current gain (hFE) (Min) @ ic, vce, so you can match the exact current - collector (Ic) your application requires using the selection guide below.
Select a variant by
- Current - collector (Ic)
- 1 A · 1.5 A · 150 mA · 300 mA · 500 mA
- Current - collector cutoff
- 50nA (ICBO) · 100nA
- DC current gain (hFE) (Min) @ ic, vce
- 20 @ 50mA, 10V · 80 @ 50mA, 10V · 85 @ 250mA, 10V · 100 @ 500mA, 5V · 300 @ 100mA, 2V · 300 @ 100mA, 5V · 300 @ 200mA, 10V · 300 @ 250mA, 10V
- Frequency
- 50MHz · 60MHz · 150MHz · 155MHz · 190MHz · 200MHz
- Power - max
- 330 mW · 500 mW · 625 mW
- Transistor type
- NPN · PNP
- Vce saturation (Max) @ ib, ic
- 1V @ 5mA, 50mA · 250mV @ 50mA, 1A · 260mV @ 200mA, 1.5A · 300mV @ 50mA, 500mA · 330mV @ 100mA, 1.5A · 350mV @ 25mA, 250mA · 500mV @ 10mA, 50mA · 500mV @ 100mA, 1A
- Voltage - collector emitter breakdown
- 40 V · 60 V · 70 V · 100 V · 125 V · 200 V · 350 V · 500 V
Variant comparison
| Parameter | FMMT493ATA | FMMT560TA | FMMT560TC | FMMT593TC | FMMT596TA | FMMT624TA |
|---|---|---|---|---|---|---|
| Current - collector (Ic) | 1 A | 150 mA | 150 mA | 1 A | 300 mA | 1 A |
| Current - collector cutoff | 100nA | 100nA | 100nA | 100nA | 100nA | 100nA |
| DC current gain (hFE) (Min) @ ic, vce | 300 @ 250mA, 10V | 80 @ 50mA, 10V | 80 @ 50mA, 10V | 100 @ 500mA, 5V | 85 @ 250mA, 10V | 300 @ 200mA, 10V |
| Frequency | 150MHz | 60MHz | 60MHz | 50MHz | 150MHz | 155MHz |
| Power - max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 625 mW |
| Transistor type | NPN | PNP | PNP | PNP | PNP | NPN |
| Vce saturation (Max) @ ib, ic | 500mV @ 100mA, 1A | 500mV @ 10mA, 50mA | 500mV @ 10mA, 50mA | 300mV @ 50mA, 500mA | 350mV @ 25mA, 250mA | 250mV @ 50mA, 1A |
| Voltage - collector emitter breakdown | 60 V | 500 V | 500 V | 100 V | 200 V | 125 V |
Shared specifications

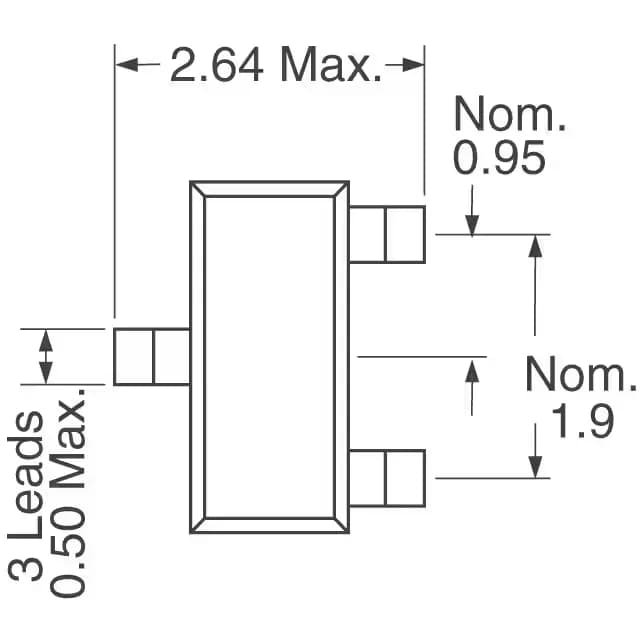

- Case
- TO-236-3, SC-59, SOT-23-3
- Mounting type
- Surface Mount
- Operating temperature
- -55°C ~ 150°C (TJ)
- Package
- Tape & Reel (TR); Cut Tape (CT)
Request a quote on any Diodes Incorporated FMMT Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Diodes Incorporated Diodes Incorporated FMMT Series variants differ?
- Diodes Incorporated FMMT Series part numbers differ by current - collector (Ic), current - collector cutoff, DC current gain (hFE) (Min) @ ic, vce and frequency. Use the selection guide above to pick by current - collector (Ic).
- How many Diodes Incorporated Diodes Incorporated FMMT Series part numbers are listed?
- 40 Diodes Incorporated Diodes Incorporated FMMT Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated FMMT Series?
- Request a quote (RFQ) for any Diodes Incorporated FMMT Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
