Diodes Incorporated DSS2 Series

3 variants · Diodes Incorporated

About the Diodes Incorporated Diodes Incorporated DSS2 Series series

The Diodes Incorporated Diodes Incorporated DSS2 Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - collector cutoff of 100nA (ICBO) and mounting type of Surface Mount. Variants differ by case, current - collector (Ic) and DC current gain (hFE) (Min) @ ic, vce, so you can match the exact case your application requires using the selection guide below. All listed Diodes Incorporated DSS2 Series part numbers are active and orderable.

Select a variant by

Case: 3-UFDFN · TO-236-3, SC-59, SOT-23-3
Current - collector (Ic): 2 A · 500 mA
DC current gain (hFE) (Min) @ ic, vce: 150 @ 100mA, 2V · 180 @ 1A, 2V · 200 @ 500mA, 2V
Frequency: 100MHz · 150MHz · 300MHz
Operating temperature: -55°C ~ 150°C (TJ) · -55°C~150°C(TJ)
Package: Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Power - max: 250 mW · 600 mW
Transistor type: NPN · PNP

Variant comparison

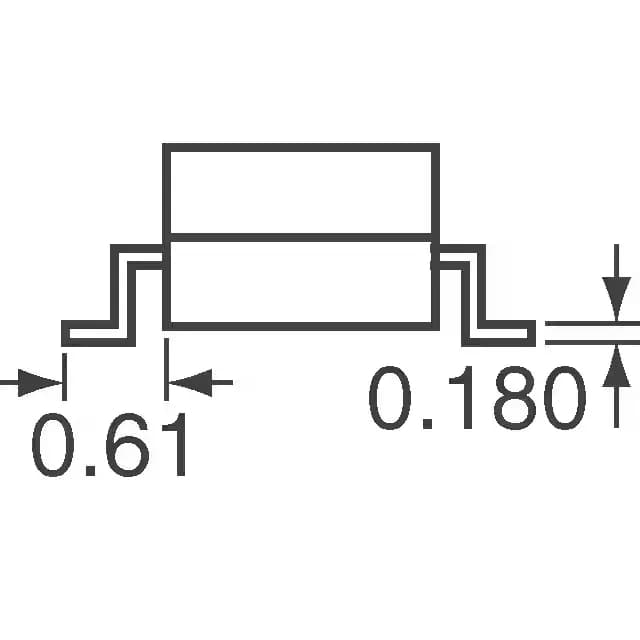

Parameter	DSS20200L-7	DSS20201L-7	DSS2540M-7B
Case	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	3-UFDFN
Current - collector (Ic)	2 A	2 A	500 mA
DC current gain (hFE) (Min) @ ic, vce	180 @ 1A, 2V	200 @ 500mA, 2V	150 @ 100mA, 2V
Frequency	100MHz	150MHz	300MHz
Operating temperature	-55°C ~ 150°C (TJ)	-55°C~150°C(TJ)	-55°C ~ 150°C (TJ)
Package	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)
Power - max	600 mW	600 mW	250 mW
Transistor type	PNP	NPN	NPN

Shared specifications

Current - collector cutoff: 100nA (ICBO)
Mounting type: Surface Mount
