Diodes Incorporated DMPH Series

14 variants · Diodes Incorporated

About the Diodes Incorporated Diodes Incorporated DMPH Series series

The Diodes Incorporated Diodes Incorporated DMPH Series series groups 14 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common FET feature of -, mounting type of Surface Mount and technology of MOSFET (Metal Oxide). Variants differ by case, current - continuous drain (Id) @ 25°C and gate charge (Qg) (Max) @ vgs, so you can match the exact case your application requires using the selection guide below. All listed Diodes Incorporated DMPH Series part numbers are active and orderable.

Select a variant by

Case: 8-PowerTDFN · 8-PowerVDFN · TO-252-3, DPak (2 Leads + Tab), SC-63
Current - continuous drain (Id) @ 25°C: 6.1A (Ta), 18A (Tc) · 8A (Ta), 22A (Tc) · 14A (Ta), 45A (Tc) · 26A (Tc) · 35A (Tc) · 50A (Tc) · 55A (Tc) · 69A (Tc) · 80A (Tc)
Gate charge (Qg) (Max) @ vgs: 14.5nC @ 4.5V · 24.1 nC @ 10 V · 34 nC @ 10 V · 53.1 nC @ 10 V · 67 nC @ 10 V · 87 nC @ 20 V · 91 nC @ 10 V · 124 nC @ 8 V
Input capacitance (Ciss) (Max) @ vds: 1293 pF @ 30 V · 1525pF @ 30V · 1626 pF @ 20 V · 2569 pF @ 30 V · 4004 pF @ 20 V · 4234 pF @ 20 V · 4763 pF @ 20 V · 6334 pF @ 10 V
Operating temperature: -55°C ~ 175°C (TJ) · -55°C~175°C(TJ)
Package: Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Rds on (Max) @ id, vgs: 6mOhm @ 15A, 4.5V · 10mOhm @ 9.8A, 10V · 11mOhm @ 9.8A, 10V · 13mOhm @ 10A, 10V · 15mOhm @ 10A, 10V · 29mOhm @ 3A, 10V · 33mOhm @ 10A, 10V · 48mOhm @ 5A, 10V · 50mOhm @ 7A, 10V

Variant comparison

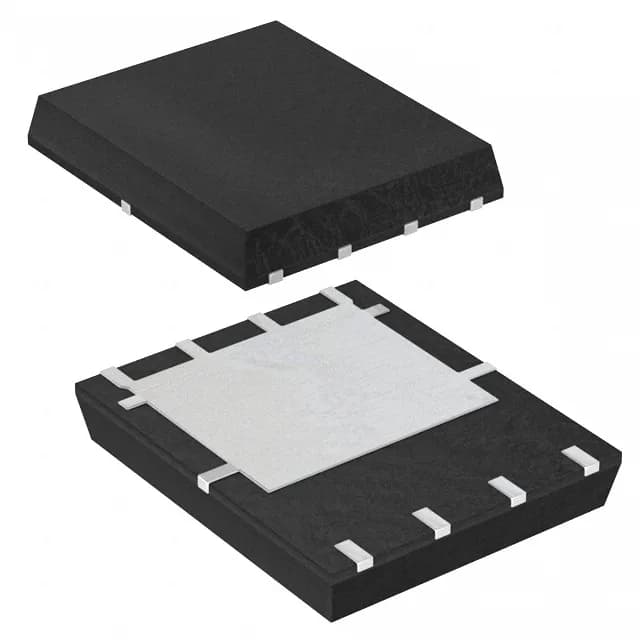

Parameter	DMPH1006UPSQ-13	DMPH4013SK3-13	DMPH4013SPSQ-13	DMPH4015SK3Q-13	DMPH4015SPSQ-13	DMPH4029LFGQ-7
Case	8-PowerTDFN	TO-252-3, DPak (2 Leads + Tab), SC-63	8-PowerTDFN	TO-252-3, DPak (2 Leads + Tab), SC-63	8-PowerTDFN	8-PowerVDFN
Current - continuous drain (Id) @ 25°C	80A (Tc)	55A (Tc)	69A (Tc)	14A (Ta), 45A (Tc)	50A (Tc)	8A (Ta), 22A (Tc)
Gate charge (Qg) (Max) @ vgs	124 nC @ 8 V	67 nC @ 10 V	87 nC @ 20 V	91 nC @ 10 V	91 nC @ 10 V	34 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds	6334 pF @ 10 V	4004 pF @ 20 V	4763 pF @ 20 V	4234 pF @ 20 V	4234 pF @ 20 V	1626 pF @ 20 V
Operating temperature	-55°C~175°C(TJ)	-55°C ~ 175°C (TJ)	-55°C ~ 175°C (TJ)	-55°C ~ 175°C (TJ)	-55°C ~ 175°C (TJ)	-55°C ~ 175°C (TJ)
Package	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)
Rds on (Max) @ id, vgs	6mOhm @ 15A, 4.5V	15mOhm @ 10A, 10V	13mOhm @ 10A, 10V	11mOhm @ 9.8A, 10V	10mOhm @ 9.8A, 10V	29mOhm @ 3A, 10V

Shared specifications

FET feature: -
Mounting type: Surface Mount
Technology: MOSFET (Metal Oxide)

Request a quote on any Diodes Incorporated DMPH Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the Diodes Incorporated Diodes Incorporated DMPH Series variants differ?: Diodes Incorporated DMPH Series part numbers differ by case, current - continuous drain (Id) @ 25°C, gate charge (Qg) (Max) @ vgs and input capacitance (Ciss) (Max) @ vds. Use the selection guide above to pick by case.
How many Diodes Incorporated Diodes Incorporated DMPH Series part numbers are listed?: 14 Diodes Incorporated Diodes Incorporated DMPH Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated DMPH Series?: Request a quote (RFQ) for any Diodes Incorporated DMPH Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
