DMP3007LK3-13
Diodes Incorporated
Tape & Reel (TR); Cut Tape (CT)-55°C~150°C(TJ)P-Channel
Ref. price$0.9400
Lead time on requestGet quote ›
Diodes Incorporated DMP30 Series
17 variants · Diodes Incorporated
About the Diodes Incorporated Diodes Incorporated DMP30 Series series
The Diodes Incorporated Diodes Incorporated DMP30 Series series groups 17 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common drain to source voltage of 30 V, FET feature of - and FET type of P-Channel. Variants differ by case, current - continuous drain (Id) @ 25°C and drive voltage (Max rds on, min rds on), so you can match the exact case your application requires using the selection guide below. All listed Diodes Incorporated DMP30 Series part numbers are active and orderable.
Select a variant by
- Case
- 8-PowerVDFN · 8-SOIC (0.154\", 3.90mm Width) · TO-236-3, SC-59, SOT-23-3 · TO-252-3, DPak (2 Leads + Tab), SC-63
- Current - continuous drain (Id) @ 25°C
- 4.3A (Ta) · 4.8A (Ta) · 5.8A (Ta) · 8.6A (Ta) · 10.4A (Ta), 39A (Tc) · 11A (Ta), 35A (Tc) · 11A (Ta), 42A (Tc) · 12A (Ta) · 18.5A (Ta) · 19.8A (Ta), 50A (Tc) · 700mA (Ta)
- Drive voltage (Max rds on, min rds on)
- 4.5V, 10V · 5V, 10V
- Input capacitance (Ciss) (Max) @ vds
- 160 pF @ 10 V · 620 pF @ 15 V · 642 pF @ 25 V · 931 pF @ 15 V · 969 pF @ 15 V · 1799 pF @ 15 V · 1802 pF @ 15 V · 2147 pF @ 15 V · 2230 pF @ 15 V · 2380 pF @ 15 V · 2826 pF @ 15 V
- Operating temperature
- -65°C~150°C(TJ) · -55°C ~ 150°C (TJ) · -55°C~150°C(TJ)
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Power dissipation
- 1W (Ta) · 1.2W (Ta) · 1.38W (Ta) · 1.5W (Ta) · 1.7W (Ta) · 2.5W (Ta) · 500mW (Ta) · 900mW (Ta) · 980mW (Ta)
- Rds on (Max) @ id, vgs
- 7mOhm @ 17A, 10V · 10mOhm @ 11.5A, 10V · 12mOhm @ 11.5A, 10V · 14mOhm @ 8A, 10V · 15mOhm @ 8A, 10V · 17mOhm @ 10A, 10V · 32mOhm @ 6A, 10V · 32mOhm @ 7A, 10V · 45mOhm @ 6A, 10V · 50mOhm @ 6A, 10V · 250mOhm @ 400mA, 10V
Variant comparison

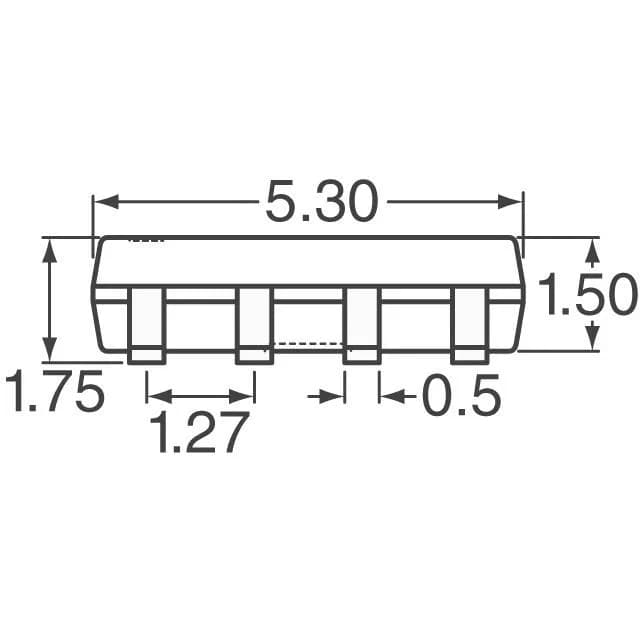

| Parameter | DMP3007LK3-13 | DMP3008SFGQ-7 | DMP3011SFVWQ-7 | DMP3018SFV-7 | DMP3020LSS-13 | DMP3021SFVW-13 |
|---|---|---|---|---|---|---|
| Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN | 8-SOIC (0.154\", 3.90mm Width) | 8-PowerVDFN |
| Current - continuous drain (Id) @ 25°C | 18.5A (Ta) | 8.6A (Ta) | 19.8A (Ta), 50A (Tc) | 11A (Ta), 35A (Tc) | 12A (Ta) | 11A (Ta), 42A (Tc) |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 5V, 10V |
| Input capacitance (Ciss) (Max) @ vds | 2826 pF @ 15 V | 2230 pF @ 15 V | 2380 pF @ 15 V | 2147 pF @ 15 V | 1802 pF @ 15 V | 1799 pF @ 15 V |
| Operating temperature | -55°C~150°C(TJ) | -55°C ~ 150°C (TJ) | -55°C~150°C(TJ) | -55°C ~ 150°C (TJ) | -55°C~150°C(TJ) | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Power dissipation | 1.5W (Ta) | 900mW (Ta) | 980mW (Ta) | 1W (Ta) | 2.5W (Ta) | 1W (Ta) |
| Rds on (Max) @ id, vgs | 7mOhm @ 17A, 10V | 17mOhm @ 10A, 10V | 10mOhm @ 11.5A, 10V | 12mOhm @ 11.5A, 10V | 14mOhm @ 8A, 10V | 15mOhm @ 8A, 10V |
Shared specifications
- Drain to source voltage
- 30 V
- FET feature
- -
- FET type
- P-Channel
- Mounting type
- Surface Mount
- Technology
- MOSFET (Metal Oxide)
Request a quote on any Diodes Incorporated DMP30 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Diodes Incorporated Diodes Incorporated DMP30 Series variants differ?
- Diodes Incorporated DMP30 Series part numbers differ by case, current - continuous drain (Id) @ 25°C, drive voltage (Max rds on, min rds on) and input capacitance (Ciss) (Max) @ vds. Use the selection guide above to pick by case.
- How many Diodes Incorporated Diodes Incorporated DMP30 Series part numbers are listed?
- 17 Diodes Incorporated Diodes Incorporated DMP30 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated DMP30 Series?
- Request a quote (RFQ) for any Diodes Incorporated DMP30 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
